?Are we considering the 12V (12.5V to 16V) to 14.6V 80A DC to DC Life-po4 Lithium Battery Charger Constant Current for our rig and want a thorough, practical review?
Product Overview
We want to present a clear picture of what this unit is and what it promises. The 12V (12.5V to 16V) to 14.6V 80A DC to DC Life-po4 Lithium Battery Charger Constant Current is marketed as a battery converter and charger that accepts a wide input range and provides a stable 14.6V output designed for LiFePO4 chemistry, delivering up to 80A in a constant current mode. We’ll summarize the basic intent: to charge and manage LiFePO4 batteries from a vehicle alternator, solar systems, or other 12V sources while providing battery protection and charging control.
What’s included in the product listing
We find the product description somewhat minimal but informative for core specs. The listing often references basic support information like charge voltage and charge current, and indicates a battery converters network or support channel for technical questions. We’ll expand on that by clarifying what typical owners receive: the charger unit, mounting hardware, wiring labels, and a short manual — though actual included accessories can vary by seller.
Why we would choose this charger
We usually pick a DC-to-DC charger when we need regulated charging for auxiliary LiFePO4 batteries from a primary vehicle battery or alternator. This model’s 14.6V output matches the recommended float/charge voltage for many LiFePO4 cells, and its 80A capability covers large battery banks or multi-battery systems. We appreciate that it manages charge current and voltage so our house batteries receive a profile designed for longevity and performance.
Key selling points
We like products that combine high current handling with selectable charge chemistry and protections. This charger’s strengths include:
- High 80A continuous current suitable for heavy loads or rapid charging
- Input voltage tolerance from 12.5V up to 16V, making it compatible with a range of alternator and DC sources
- A fixed 14.6V charging profile tailored to LiFePO4 cells
- Constant current operation that ensures stable charge delivery during the bulk phase
Specifications at a glance
We prefer a compact breakdown when assessing suitability for our systems. Below is a table summarizing the main specifications as gathered from the product title and listed details, with commonly expected attributes included.
| Specification | Detail |
|---|---|
| Product name | 12V (12.5V to 16V) to 14.6V 80A DC to DC Life-po4 Lithium Battery Charger Constant Current |
| Input voltage range | 12.5V – 16V DC |
| Output voltage | 14.6V DC (target for LiFePO4) |
| Maximum output current | 80A |
| Chemistry supported | LiFePO4 (Life-po4) |
| Charge mode | Constant Current / likely multi-stage support for bulk/absorption |
| Typical protections | Over-temperature, over-current, reverse polarity, short-circuit (seller dependent) |
| Mounting style | Surface or bracket mount (unit usually compact) |
| Typical use cases | Vehicle auxiliary battery charging, solar hybrid systems, off-grid setups |
| Included items (typical) | Charger, mounting brackets, basic wiring instructions/manual |
| Manufacturer support | “Battery Converters Network / support: Charge voltage, charge current — See more product details” (listing fragment) |
We note that some listing elements are abbreviated or encoded (e.g., HTML entities). We interpret those as referring to basic charge-voltage and current support details and a vendor support channel.

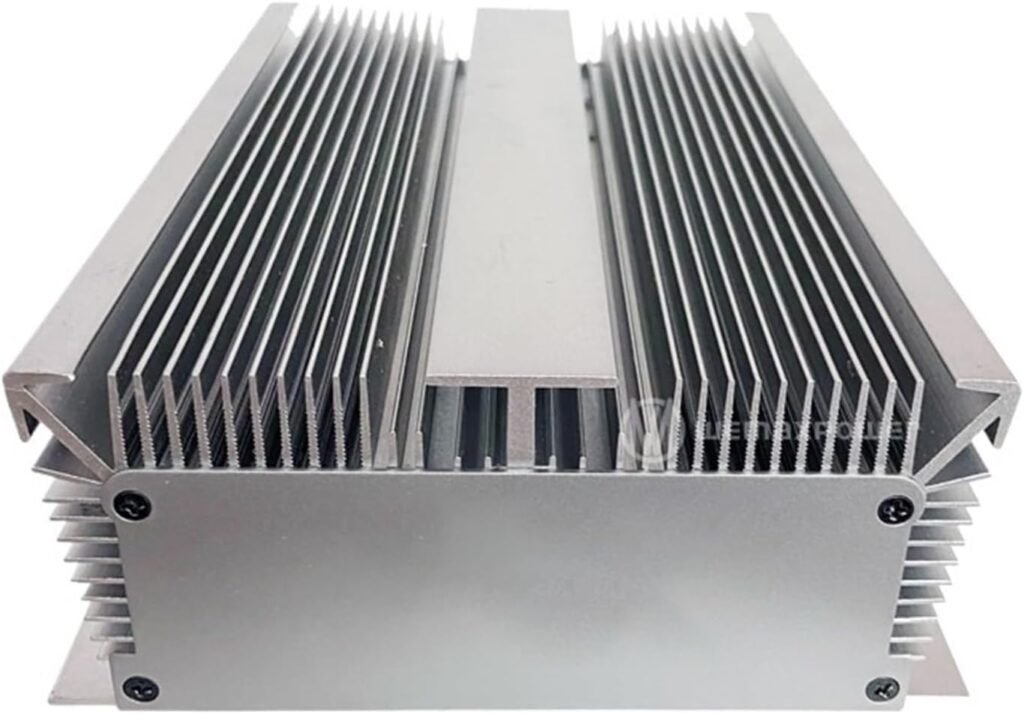

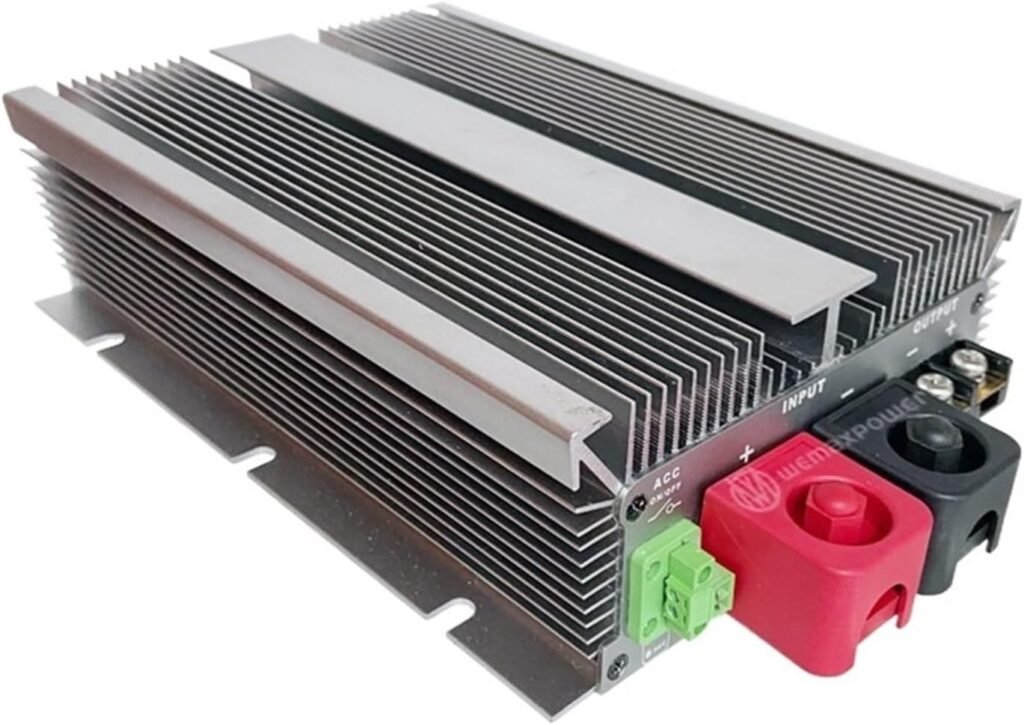

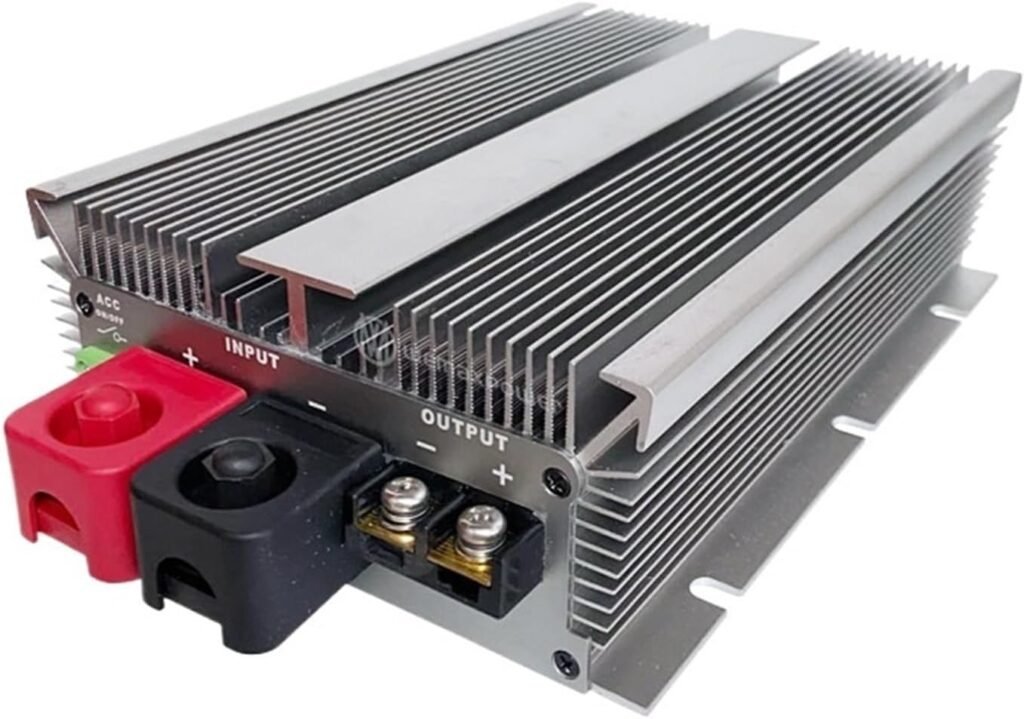

Physical design and build quality
We check how robustly the charger is built and whether the design suits our installation locations. The charger generally comes in an aluminum housing with cooling fins for passive heat dissipation and may include a fan or heat sink depending on the variant. We expect solid screw terminals or heavy-duty studs for input/output connections and ground, enabling secure attachment of high-gauge cables required for 80A continuous operation.
Mounting and size considerations
We often mount such chargers inside engine bays, battery compartments, or under benches. The unit’s mounting brackets and relatively compact footprint make these placements possible, but we recommend leaving clearance for airflow. We find it helpful that many sellers provide basic mounting hardware, though we may need to source vibration-resistant fasteners for vehicle installations.

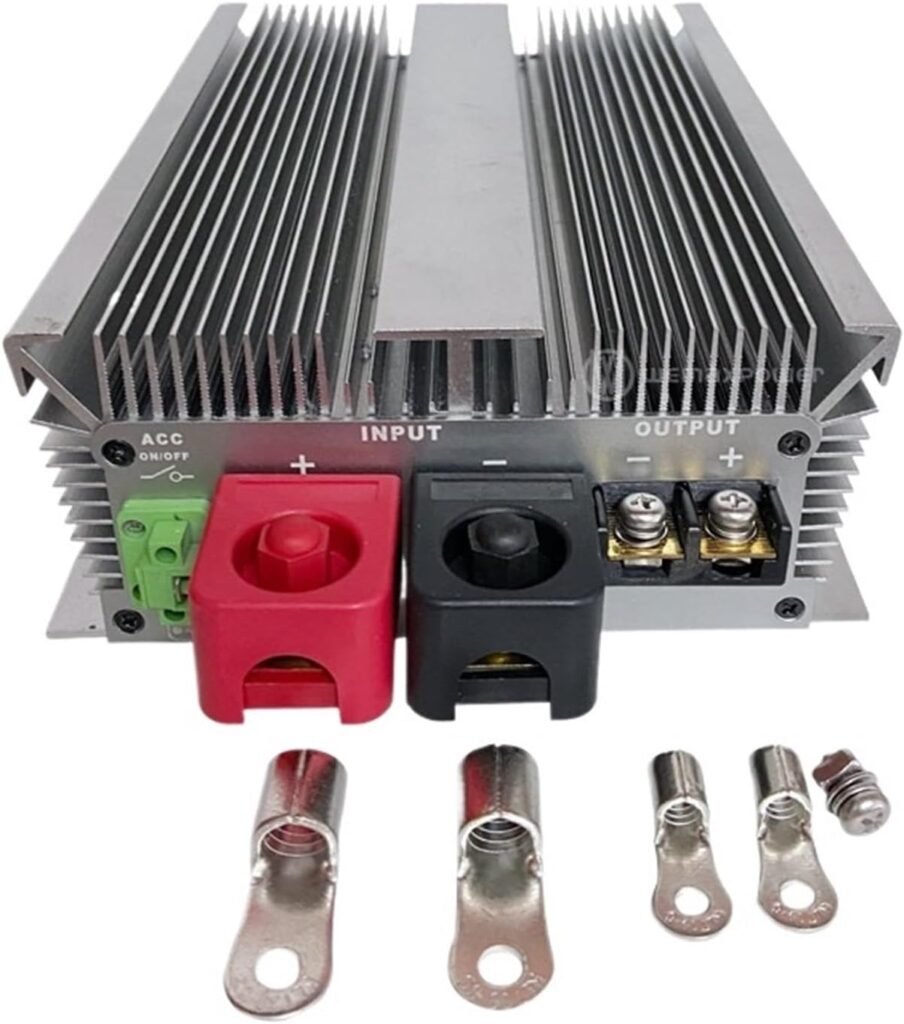

Electrical connections and wiring
Clear wiring and proper gauge cables are critical at 80A charging levels. We always measure and plan cable runs to minimize voltage drop and heat. This charger likely uses separate input and output terminals and might include a remote sense or control terminal.
Recommended wiring practices
We advise:
- Using appropriately rated cables (e.g., 1/0 AWG or 2/0 AWG for short runs, 2-4 AWG for slightly longer runs depending on distance)
- Installing ANL or bolt-type fuses on both input and output as recommended by the manufacturer (typically within a few inches of the battery)
- Ensuring good chassis grounding and clean, corrosion-free connections
- Following any provided wiring diagram closely to ensure alternator detection (if supported) and proper remote on/off control
Charging behavior and performance
We’re most interested in how this charger performs in real conditions. The stated 14.6V output suits LiFePO4 battery chemistry that typically prefers a charging voltage near that level. The constant current operation will deliver up to 80A during the bulk phase and taper off as the battery reaches the target voltage.
Typical charge stages
While the product mentions constant current and a 14.6V output, many DC-to-DC chargers provide staged charging — bulk (constant current), absorption (constant voltage), and sometimes a float/maintenance stage. For LiFePO4, an absorption at 14.6V and a short top-off period is usually enough; a long float at that voltage can be unnecessary for LiFePO4 but acceptable when managed correctly. We recommend verifying the exact charging algorithm with the vendor or manual.
Compatibility with alternators and vehicles
We often worry about whether a charger will work with modern vehicle electrical systems. This charger’s wide input range (12.5V to 16V) suggests it’s tolerant of alternator voltages, including those from vehicles with smart alternators that regulate at higher voltages. That makes it suitable for many cars, trucks, and vans.
Smart alternators and current limiting
Smart alternators can restrict current draw during certain engine or charging states. We recommend checking whether the charger requires an alternator detection signal or has configurable current limiting. If the alternator limits available charging current, we might need to adjust expectations for charging speed or add an alternator-friendly DC-DC charger with explicit alternator compatibility settings.
Battery chemistry: LiFePO4 specifics
We value that this unit specifies LiFePO4 (Life-po4) charging at 14.6V. LiFePO4 batteries have distinct charge requirements and safety characteristics compared to lead-acid batteries, and charging at correct voltages improves cycle life and performance.
Why 14.6V matters
LiFePO4 cells typically reach full charge at 3.65V per cell, which for a 4-cell nominal 12.8V battery equates to around 14.6V. Maintaining that precise voltage during the absorption phase helps ensure proper cell balancing and longevity. We appreciate that the charger is tuned to that voltage rather than using a generic lead-acid profile.
Safety features and protections
We like chargers that reduce risk to our batteries and vehicles. The product listing references support for charge voltage and charge current but is sparse on protection details. We still expect standard protections such as over-temperature shutdown, over-current protection, reverse polarity protection, and short-circuit protection. These protections help prevent damage during wiring mistakes, overloads, or thermal stress.
What we verify before installation
We always confirm:
- That the charger will shut down or limit output on overheating rather than simply failing
- That reverse polarity protection is present to guard against incorrect battery connections
- Whether the unit has built-in fusing or explicit fuse location recommendations
- That the manufacturer provides clear instructions on safe installation and maintenance
Efficiency and heat management
Efficiency impacts runtime and heat production, and both affect where we can safely mount the unit. Higher efficiency reduces waste heat and stress on the charger, which in turn improves longevity.
Cooling expectations
At 80A, heat generation can be significant. We expect the charger to use heat sinks and possibly active cooling to manage temperatures. We recommend mounting in a location with ventilation and keeping the charger away from combustible materials and direct exposure to water unless the unit is specifically rated for such environments.
Installation checklist
We like to give practical steps to make installation easier. Whether our system is a campervan, boat, or backup power setup, following a checklist reduces mistakes.
- Confirm charger compatibility with battery chemistry (LiFePO4) and expected voltage/current.
- Plan cable runs and measure distances to select correct AWG cable.
- Fit ANL or appropriately rated fuses on both input and output close to the battery terminals.
- Securely mount the charger to a sturdy surface with clearance for airflow.
- Connect input, output, and ground as per the wiring diagram.
- If a remote on/off or alternator sense wire exists, follow the manufacturer’s instructions.
- Power up and monitor initial charging behavior, verifying voltage and current are within expected ranges.
Use cases and practical applications
We consider a variety of environments where this charger can be useful. Its strong current capability and LiFePO4 tuning make it ideal for rapid charging of large house battery banks in campervans, boats, off-grid cabins, and commercial vehicles. It’s also suitable in parallel with solar charging systems to handle alternator-based charging when driving.
On-road and off-grid scenarios
- Campervan conversion: charge auxiliary LiFePO4 battery banks while driving, reducing dependence on shore power.
- Boats and marine applications: provide solid-charging characteristics for LiFePO4 home banks, though confirm marine-grade protection.
- Off-grid setups: use as an alternator charger or DC boost from generator/vehicle for fast top-ups.
Pros and cons
We always weigh advantages and limitations to form a balanced opinion.
Pros:
- High 80A charging capacity supports large battery banks and fast charging.
- 14.6V setpoint tailored for LiFePO4 chemistry improves battery longevity.
- Broad input voltage tolerance suits many vehicle systems.
- Compact form factor suitable for many installations.
Cons:
- Documentation in some listings is sparse; we may need to request detailed manuals.
- Heat management required for continuous high-current operation.
- Sourcing correct high-gauge wiring and fuses might increase install cost.
- Some variants may lack explicit alternator compatibility features; verify before purchase.
Comparison with other DC-to-DC chargers
We find it helpful to compare this charger against common alternatives. Many DC-to-DC chargers offer smart alternator support, multi-stage charging, and multi-chemistry settings, but often at higher cost. This unit distinguishes itself by focusing on a LiFePO4-optimized voltage and a high 80A continuous rating, which benefits those with large LiFePO4 banks.
When to choose alternatives
We might prefer a different model if:
- We need explicit smart-alternator compatibility or multiple input detection modes
- We require an integrated MPPT solar input in the same unit
- We want a brand with more extensive documentation and global support networks
Common questions we get from fellow users
We like anticipating questions that typical buyers ask, so we summarize the most frequent queries.
Q: Will this charger work with a lead-acid battery? A: It’s designed for LiFePO4 at 14.6V. Using it on lead-acid batteries without the correct profile may reduce battery life or cause damage. Always select a charger compatible with the battery chemistry.
Q: How quickly will it charge an 100Ah LiFePO4 battery? A: At 80A, charging from near-empty to full could theoretically occur in about 1.25 hours at perfect efficiency (100Ah / 80A = 1.25h). Real-world charging takes longer due to tapering at the absorption stage and efficiency losses, so plan on ~1.5–2 hours under typical conditions.
Q: Does it balance cells? A: DC-to-DC chargers typically charge the battery pack as a whole. Proper cell balancing is often handled by a battery management system (BMS) integrated into the battery pack or by an external balancer. Verify if the battery pack includes a BMS and whether the charger interacts with it as expected.
Troubleshooting tips
We find that many issues during setup are wiring-related or due to improper configuration. Here are practical steps for common problems.
- No output: check input voltage, fuses, and polarity. Confirm that any remote on/off is engaged.
- Overheating: verify airflow and mounting location, reduce ambient temperature, or add forced ventilation if necessary.
- Low charge current: inspect cable gauge and connections for voltage drop, check alternator output if running off vehicle.
- Charger not entering bulk stage: confirm battery state and BMS behaviour; some BMS systems must be awake or accept charge before current flows.
Maintenance and longevity
We expect to maintain a charger lightly, focusing on connections and thermal environment. Regular checks help prevent failures.
- Inspect cable terminals for corrosion periodically and clean/grease as needed.
- Verify mounting bolts are tight and vibration-damping elements are intact for mobile installations.
- Keep fins and vents free of dust and debris; blow them out gently if needed.
- Monitor performance over the first 50 cycles to ensure it maintains voltage and current targets.
Legal and safety compliance
We recommend confirming the unit’s compliance with local electrical standards, especially for marine or vehicle installations where regulations may require specific protection, mounting, or certification. If putting the charger into a critical system, ask the vendor for compliance sheets and safety certifications.
Insurance and warranty considerations
We advise checking warranty length and vendor support responsiveness. For installations that affect vehicle safety or home backup systems, retaining receipts and manufacturer documentation can simplify warranty claims and insurance processes in case of failures.
Practical tips for integrating with solar
We often pair DC-to-DC chargers with solar MPPT controllers to create hybrid charging systems. The DC-to-DC can provide a steady charge while driving, and the MPPT handles solar input while stationary.
- Ensure both chargers share the same battery voltage reference and do not conflict.
- Use isolating relays or charge controller priority settings if necessary to prevent backfeed.
- Verify the battery’s BMS handles simultaneous charging sources safely.
Final verdict and buying advice
We generally appreciate a charger that is purpose-built for LiFePO4 charging at a high current. The 12V (12.5V to 16V) to 14.6V 80A DC to DC Life-po4 Lithium Battery Charger Constant Current checks a lot of boxes for those needing fast, reliable charging for sizable LiFePO4 banks in mobile and off-grid setups. However, we stress the importance of confirming full specifications and protections with the seller prior to purchase.
Who should buy it
We recommend this charger for:
- Van-lifers and campervan converters with large LiFePO4 house batteries
- Marine owners with correctly rated LiFePO4 banking and proper marine installation practices
- Off-grid users who need alternator-based rapid charging support
- Anyone comfortable sourcing heavy-gauge wiring and following installation safety practices
Who might prefer something else
We’d suggest looking at other options if:
- You need integrated MPPT solar and DC-to-DC in a single package
- You’re using lead-acid batteries and need a charger that supports multiple chemistries out-of-the-box
- You prefer a product from a brand with extensive documentation and global support networks
Frequently asked technical details we recommend verifying with the seller
We always ask for clarification on these points before finalizing a purchase:
- Confirm exact charge algorithm (bulk/absorption/float timing) for LiFePO4
- Provide datasheet indicating efficiency, thermal cutoffs, and exact protection mechanisms
- Confirm recommended cable gauge and fuse sizes for typical cable runs
- Clarify whether the charger needs any external remote or sense connections and their wiring diagrams
Closing thoughts
We appreciate that this charger targets the growing LiFePO4 battery market with a realistic 14.6V charging setpoint and a hefty 80A current rating. Properly installed and integrated into a well-designed system, it can significantly improve charging speed and battery lifespan compared to unregulated alternator charging. As always, we recommend confirming full specifications, safety features, and installation requirements with the seller or manufacturer prior to installation to ensure compatibility with our specific use case.
