?Are we ready to take our RV, marine, or off-grid energy setup to the next level with the 12V 300Ah LiFePO4 Lithium Battery, Upgraded 200A BMS System, Up to 15000+ Cycles Life, 3840Wh Rechargeable Lithium Battery with Low-Temp Protection for RV Solar Marine Solar Panel Camping?

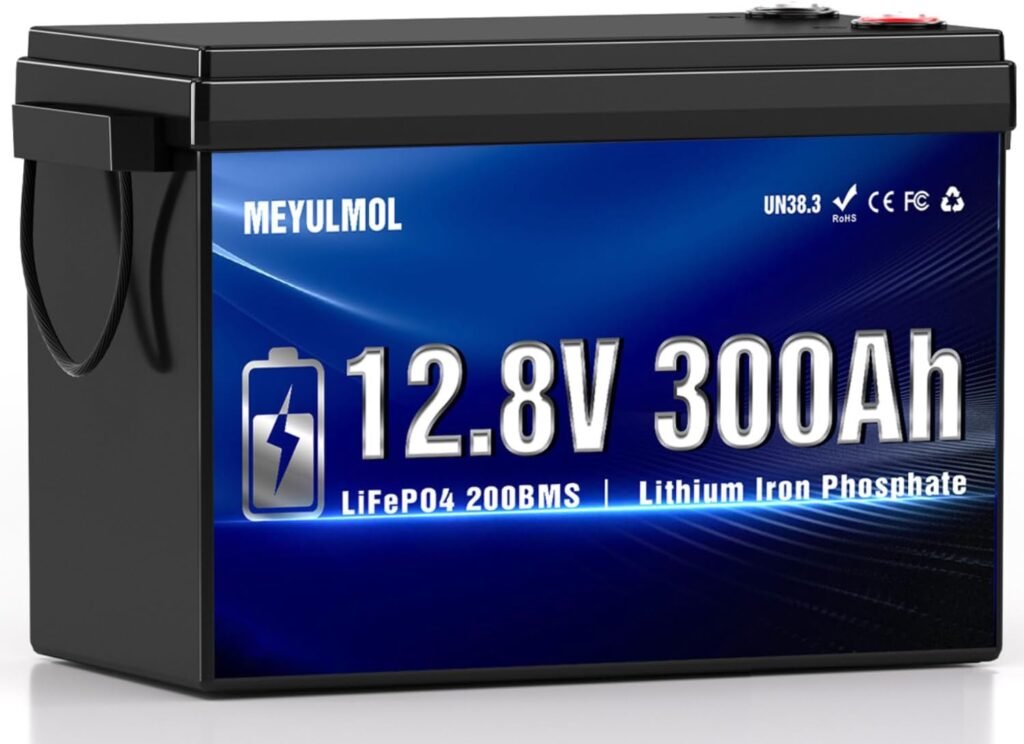

Product Overview
We think this 12V 300Ah LiFePO4 battery is designed to be a serious replacement for traditional lead-acid banks and many standard lithium alternatives. We appreciate that the product combines large usable capacity, an upgraded 200A intelligent BMS, and explicit low-temperature protection to make it suitable for diverse environments.
What the Name Tells Us
The full product name describes the core benefits and intended uses plainly: 300Ah at 12V (3840Wh), a 200A BMS, long cycle life claims, and low-temperature protection for RV, marine, solar, and camping applications. We find the long name useful because it highlights the most important technical specs and the target use cases in one line.
Technical Specifications
We always start by looking at the numbers because they determine how the battery will behave in real installations. The table below is a concise breakdown of the most relevant specifications to help us compare and plan.
| Specification | Value | Notes |
|---|---|---|
| Nominal Voltage | 12.8 V | Typical nominal voltage for LiFePO4 cells (4S configuration). |
| Capacity | 300 Ah | Usable energy depends on depth of discharge and system losses. |
| Energy (Wh) | 3840 Wh | Approximate total energy at nominal voltage (12.8V × 300Ah). |
| Chemistry | LiFePO4 (LFP) | Stable chemistry with thermal and cycle life advantages. |
| BMS | Upgraded 200A Smart BMS | Overcharge/over-discharge/overcurrent/short protection and low-temp cutoff. |
| Cycle Life | 4000–15000+ cycles (marketing range) | Conservative claims list 4000+, upgraded performance claims up to 10000+ and marketing says up to 15000+. |
| Operating Temp (Discharge) | -20°C to 70°C (-4°F to 158°F) | Wide discharge temp range for harsh environments. |
| Charge Temp Cutoff | Charging resumes above 0°C / 32°F | Low-temp charging prevented to avoid lithium plating; exact thresholds may vary by BMS. |
| Discharge Cutoff (Low Temp) | Automatic pause below -4°F (~-20°C) | BMS pauses discharge to protect cells. |
| Self-Discharge | <3% per month< />d> | Very low compared to lead-acid. |
| Weight | ~1/3 of equivalent lead-acid | Lighter and denser energy storage per mass. |
| Parallel/Series Expansion | 4S4P support | Designed for modular expansion up to larger systems (e.g., 48V / 1200Ah). |
| Warranty / Support | 24/7 technical support claim | Manufacturer claims testing and service support; check seller warranty details. |
Key Features Summary
We want to make sure we understand the features that matter day to day, and the points that will affect installation, maintenance, and longevity. This battery emphasizes extended cycle life, intelligent BMS protection, low-temp safety features, and modular expandability.
Lifespan and Cycle Claims
The manufacturer claims over 4000 cycles up to 10000+ cycles, with marketing statements suggesting up to 15000+ cycles for some cells and conditions. We treat the lower bound (4000 cycles) as realistic and very favorable compared to lead-acid (200–500 cycles), while higher numbers represent best-case scenarios with conservative DOD and ideal conditions.
Performance: Usable Energy and Real-World Runtime
We always convert nominal numbers into meaningful real-world run times so we can plan for devices and loads. The 3840Wh rating gives us a starting point, but usable energy depends on depth-of-discharge, inverter efficiency, and temperature.
Runtime Examples
We calculated expected run times at a few representative loads so we can quickly estimate how long common appliances will run.
| Load | Estimated Draw (W) | Estimated Runtime (Hours) | Notes |
|---|---|---|---|
| LED lighting | 50 W | ~70–75 hours | Minimal inverter loss for DC loads; longer if DC lights run directly. |
| 12V fridge | 60–80 W | ~45–60 hours | Duty cycle and ambient temperature greatly affect actual runtime. |
| Laptop charging | 60 W | ~50–60 hours | Depends on converter/inverter efficiency. |
| CPAP | 30–60 W | ~64–128 hours | Long runtimes possible for low-wattage devices. |
| Small microwave (inverter) | 800–1000 W | ~3–4 hours | High load draws quickly reduce runtime and increase inverter strain. |
| Electric kettle via inverter | 1500 W | ~1.5–2 hours | Very high loads require appropriate inverter and cabling. |
We factor in inverter efficiency (typically 85–95% depending on model and load) and BMS limits when estimating these runtimes.
Battery Management System (Upgraded 200A BMS)
We view the BMS as one of the most critical parts of any lithium battery because it protects the cells and manages charging/discharging. This unit’s upgraded 200A intelligent BMS gives us strong protections and practical performance for inverters and heavy loads.
BMS Protections and Behavior
The 200A Smart BMS guards against overcharge, over-discharge, overcurrent, short circuits, and high temperature conditions. We value its 0°C (32°F) low-temperature cutoff function which prevents charging below safe temperatures to avoid lithium plating and potential cell damage.
Current Handling and Practical Limits
A 200A continuous BMS rating means the battery can support sustained draws near 200A, which at 12.8V equals about 2560W of continuous inverter load (ignoring inverter inefficiency). We recommend sizing inrush protection and fuses for startup currents, especially with AC loads like air conditioners, microwaves, or compressors.
Low-Temperature Protection and Operating Range
We prioritize units that handle cold climates gracefully, and this battery’s low-temp protection is deliberately engineered for that purpose. The BMS pauses discharge below -4°F (about -20°C) and prevents charging below 0°C (32°F), resuming normal operation when temperatures return to safe thresholds.
Why Low-Temp Cutoff Matters
Charging lithium cells below freezing risks lithium plating on the anode, which permanently degrades capacity and safety. We appreciate the battery’s automatic protection because it prevents inadvertent charging in cold mornings or high-altitude settings without requiring manual intervention.
Expandability: 4S4P Flexible Expansion
Scalability is important for users who want to grow their system over time rather than buying a giant bank upfront. The standardized 4S4P design supports parallel expansion so we can start with one battery and add more to reach larger voltages and capacities.
Building Larger Systems
With multiple units, we can configure up to a 48V / 1200Ah system by combining batteries in series/parallel groups as appropriate. We recommend following manufacturer wiring diagrams and keeping batteries at similar state-of-charge and temperature for best longevity during parallel operation.
Installation and Physical Considerations
We always pay attention to weight, mounting options, and safe wiring practices because those are practical concerns that determine installation complexity. This LiFePO4 battery is about one third the weight of equivalent lead-acid banks, which makes handling and mounting simpler for most users.
Mounting, Ventilation, and Orientation
Although LiFePO4 batteries do not typically emit gases like flooded lead-acid, we still recommend mounting in a secure, vibration-resistant location with some ventilation and easy access for service. We also bolt in a series fuse/disconnect near the battery to protect cabling and provide a visible isolation point.
Charging Recommendations and Compatibility
We find that correct charging parameters are essential to get the best life from LiFePO4 chemistry. Appropriate charge voltages, charge termination behavior, and compatible charging sources (solar MPPT, DC alternator regulators, shore chargers) will make a major difference in real-world durability.
Charge Voltage and Current Guidelines
We recommend charging to a float/absorption voltage around 14.2–14.6V for 12.8V LiFePO4 banks, with charge cutoff or float settings adjusted accordingly. We also suggest limiting charging current to a percentage of capacity (for example, 0.2C to 0.5C—60A to 150A for a 300Ah battery) unless the battery manufacturer explicitly supports higher rates.
Solar Integration
We expect many users will pair this battery with solar arrays and MPPT controllers for off-grid or backup systems. Properly sized MPPT controllers and correct LiFePO4 charging profiles ensure efficient charging and long life.
MPPT and Charge Profiles
Set MPPT absorption and float voltages to match LiFePO4 parameters (typically around 14.2–14.6V absorption and no prolonged float requirement). We suggest using MPPT controllers with configurable multi-stage charge profiles and temperature compensation disabled for LiFePO4 unless the controller supports LiFePO4 compensations.
Real-World Use Cases
We like mapping batteries to practical scenarios, because that helps us understand true value. This unit is aimed particularly at RVers, marine users, campers, tiny homes, mobile workshops, and people building industrial mobile power stations.
RV and Camper Use
For RV installations, the 300Ah capacity covers multi-day boondocking runs for lighting, refrigeration, water pump, and low-power appliances. We still recommend adding a quality inverter and monitoring system to keep tabs on state-of-charge and expected runtime.
Marine Applications
In marine environments, the battery’s low weight and high cycle life are valuable for trolling motors, house loads, and backup systems. We emphasize secure mounting, corrosion-resistant wiring, and suitable fusing for marine safety.
Off-Grid Cabins and Solar Farms
For off-grid cabins or small commercial solar sites, the ability to parallel units and build larger systems over time makes this battery a flexible building block. We recommend pairing with appropriately rated inverters and charge controllers when scaling to higher voltages and capacities.
Safety, Certifications, and Testing
We always check safety claims and test validation where possible. The manufacturer states the battery has been rigorously tested, with over 10,000 hours of service life validation and a multi-layer BMS protecting against common hazards.
Thermal and Electrical Safety
The seven layers of intelligent protection—overcharge, over-discharge, overcurrent, short circuit, high temperature, low temperature cutoffs, and balancing—provide a comprehensive defense against most failure modes we encounter. We suggest keeping the battery within the recommended environmental envelope and following installation instructions to preserve warranty and safety.
Maintenance and Long-Term Care
One major benefit of LiFePO4 chemistry is low maintenance. We appreciate the claimed ultra-low <3% monthly self-discharge and the battery’s tolerance for long storage when compared to lead-acid alternatives.< />>
What Maintenance We Recommend
We still recommend periodic checks of connections, firmware updates for BMS (if available), and occasional capacity checks using a calibrated load or battery monitor. We also encourage proper storage at a partial state-of-charge (around 40–60%) if the battery will be unused for extended periods.
Comparison: LiFePO4 vs Lead-Acid and Other LiFePO4 Alternatives
We often compare technologies side-by-side to make informed choices. The table below summarizes the most relevant comparisons for typical small- to medium-scale energy systems.
| Feature | 12V 300Ah LiFePO4 (this battery) | Lead-Acid (AGM/Gel/Flooded) | Other LiFePO4 (generic) |
|---|---|---|---|
| Cycle Life | 4,000–15,000+ cycles (claim) | 200–500 cycles | 2,000–6,000 cycles (typical) |
| Usable Capacity | ~95% DOD practical | ~30–50% recommended DOD | 80–95% DOD practical |
| Weight | ~1/3 of lead-acid | Heavy | Similar to this product |
| Self-Discharge | <3% />month | Higher (5–30% / month) | Low |
| Maintenance | Zero maintenance | Periodic maintenance for flooded | Zero maintenance |
| Low-Temp Charging | BMS cutoff prevents damage | Can be charged at low temps (risk varies) | Varies by BMS |
| Cost per Wh | Higher upfront | Lower upfront (but higher lifecycle cost) | Varies; often similar |
We conclude that this battery occupies the higher-performance part of the LiFePO4 market because of its long cycle claims and a strong BMS feature set.
Pros and Cons
We like to summarize the strongest and weakest aspects of any product so we can weigh trade-offs during purchasing.
Pros
- Exceptional claimed cycle life that dramatically lowers lifecycle cost compared to lead-acid.
- Upgraded 200A BMS with robust protections and low-temp charge/discharge cutoffs.
- Flexible expansion options (4S4P) for modular system growth.
- Lighter weight and low self-discharge make it easier to install and store.
- Wide operating temperature range for many climates and applications.
Cons
- The highest cycle claims (10k–15k) are optimistic; actual life depends on usage and conditions.
- Low-temperature charge cutoff may limit immediate charging in cold environments unless we add battery heaters or insulated enclosures.
- Upfront cost is higher than traditional lead-acid batteries, requiring a longer payback horizon.
- Proper integration (inverters, charge controllers, wiring) is required to realize full benefits.
Installation Checklist
We prefer checklists because they reduce mistakes during setup. The following steps summarize what we do before putting the battery into service.
Pre-installation Steps
- Inspect battery physically for shipping damage and verify terminals.
- Confirm the inverter/charger and MPPT controller are programmable for LiFePO4 charging profiles.
- Install correct gauge wiring and a fuse or circuit breaker close to the battery positive terminal.
- Ensure batteries used in parallel are same model, age, and state-of-charge to avoid imbalance issues.
Testing and Commissioning
We always do an initial commissioning cycle to verify everything works as expected and to set baselines for future performance comparisons. We also log initial voltage, resting voltage, and runtime under known loads to form the basis of warranty or long-term performance tracking.
First Charge and Balancing
We recommend applying a controlled first charge with a LiFePO4-compatible charger to bring the battery to full SOC, letting the BMS balance cells if required, and then performing a calibrated discharge to verify usable capacity. We also monitor the BMS behavior and temperature throughout the first cycles.
Long-Term Expectations and Degradation
We want realistic expectations about how the battery will age in real-world conditions. For most LiFePO4 systems operated in recommended conditions (moderate charging rates, avoidance of full T>60°C exposures, and limited low-temp charging), we expect a slow capacity fade over many years.
Typical Degradation Profile
We expect gradual capacity decline of a few percentage points per thousand cycles under moderate conditions; faster decline can occur under high continuous currents, extreme temperatures, or repeated low-temp charging events. We recommend keeping average depth-of-discharge moderate to maximize cycle life.
Frequently Asked Questions (FAQ)
We know that practical questions often decide purchases, so we’ve answered the most common ones in plain language.
Can we use this battery as a direct replacement for lead-acid?
Yes, we can replace many lead-acid banks with this battery, but we must update charging profiles and possibly inverter/charger settings so they match LiFePO4 voltage targets and charge behavior. We also recommend adding a compatible battery monitor for accurate state-of-charge readings.
What happens if we charge below freezing?
The battery’s intelligent BMS prevents charging below the specified low-temperature threshold (0°C / 32°F) to avoid lithium plating. We should avoid forcing charges at low temperatures unless a dedicated heater or temperature-controlled enclosure is used.
How many batteries can we parallel safely?
The design supports parallel expansion, but we adhere to manufacturer limits and wiring guidelines—typically paralleling identical units and ensuring equal state-of-charge before connection. We avoid mixing old and new units to prevent imbalance-related stress.
Does the BMS allow firmware updates or external monitoring?
That depends on the specific model and vendor; some BMS units provide external communications (CAN, RS485, or Bluetooth) for monitoring and updates. We recommend checking the seller’s documentation or support lines if remote monitoring and BMS firmware management are important to us.
What size inverter can we run?
A 200A BMS supports substantial continuous loads, but inverter size must be matched to the expected loads and wiring. For example, a 3000W inverter is frequently acceptable with proper cabling, but surge loads for motors may require additional fusing or soft-start devices.
Troubleshooting Common Issues
We prepare for occasional problems by listing common symptoms and actions. This helps reduce downtime and keeps our systems reliable.
Battery Not Charging
If charging is prevented, we check temperature and BMS status LEDs; low-temperature cutoff or BMS protection may be active. We also validate charger voltage settings, fuses, and wiring continuity.
Rapid Voltage Drop Under Load
If we see rapid voltage sag, we suspect either excessive load beyond BMS ratings, poor wiring/gauge causing voltage loss, or an internal cell imbalance. We test with calibrated loads and consider disconnecting heavy loads to see if voltage recoveries occur.
Cost and Value Analysis
We always consider total lifecycle costs rather than just purchase price. LiFePO4 batteries have higher upfront cost, but dramatically longer cycle life and near-zero maintenance reduces total cost of ownership for users who cycle frequently or depend on deep discharge.
Payback Considerations
For frequent campers, full-time RVers, and off-grid homeowners, the extended cycle life and higher usable capacity typically deliver payback in a few years versus repeatedly replacing lead-acid banks. We model local electricity costs, expected cycles per year, and replacement intervals to estimate real payback windows.
Final Verdict
We find the 12V 300Ah LiFePO4 Lithium Battery with the upgraded 200A BMS to be a compelling option for anyone who needs a reliable, long-lasting, and modular energy storage solution. We recommend it for serious RV, marine, off-grid, and mobile power applications provided we follow recommended charging parameters and installation best practices.
Why We’d Choose This Battery
We choose this battery for its strong BMS protections, impressive capacity to weight ratio, expansion flexibility, and practical safety features like low-temperature cutoffs. We advise pairing it with compatible chargers, properly sized inverters, and monitoring devices to maximize lifespan and performance.
If we have additional questions about integration specifics, charging setups, or multi-battery configurations, we can review manufacturer documentation or reach out to their support for the exact wiring diagrams and recommended software settings.
