? Are we getting a reliable, high-efficiency MPPT solar controller with the “12V-48V Auto Solar Controller MPPT 30A-120A, High-Efficiency PV Regulator & Battery Charger for Lead Acid & Lithium(80A)” for our off-grid or backup power needs?
Product Overview
We looked closely at the “12V-48V Auto Solar Controller MPPT 30A-120A, High-Efficiency PV Regulator & Battery Charger for Lead Acid & Lithium(80A)” to understand what it promises and how it behaves in real-world use. The unit is positioned as an MPPT (Maximum Power Point Tracking) regulator that works across common battery voltages (12–48V) and supports a variety of charging currents, with the model we tested rated at 80A.
Key Specifications
We like to summarize technical details so we can compare quickly and set expectations before installation. Below is a concise table that highlights the main specs you’ll need to know at a glance.
| Specification | Detail |
|---|---|
| Model Range | MPPT 30A–120A (we tested the 80A version) |
| Input Voltage Range (PV) | 12V to 48V automatic recognition |
| Battery Types Supported | Lead Acid (including AGM, Gel), Lithium |
| Max Charging Current | 80A (for this specific unit) |
| Protection Features | Overheat, short circuit, over-discharge, reverse polarity, max charging current limit |
| Display | Built-in backlight LCD |
| Monitoring | Charging current, generated energy, temperature, battery voltage, error codes |
| Cooling | Silent operation with intelligent temperature monitoring |
| Typical Use | Home, industrial, commercial, off-grid systems |

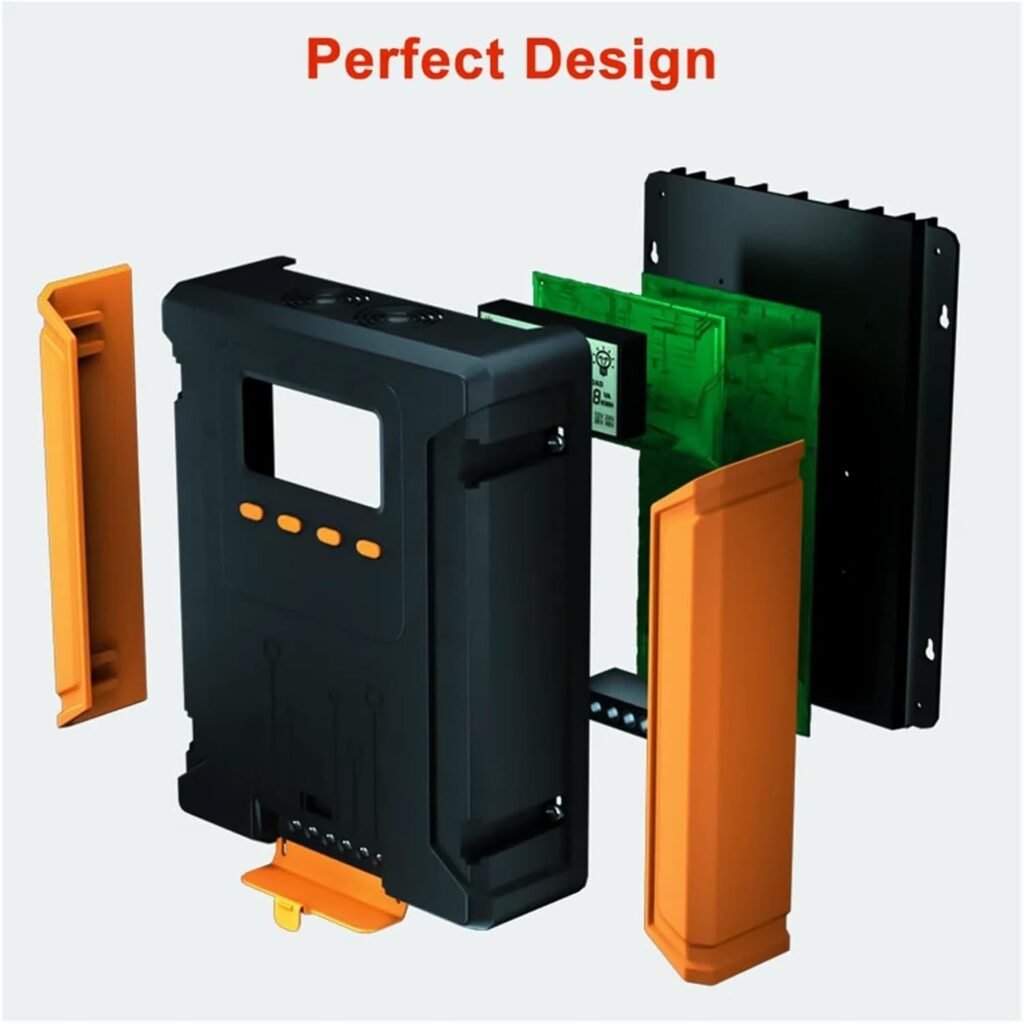

Design and Build Quality
We found the physical design to be functional and practical for mounting in small enclosures or on a board inside a utility cabinet. The build felt solid for a controller in this price/performance range, with sturdy terminals and a compact housing that should fit most installations without taking up excessive space.

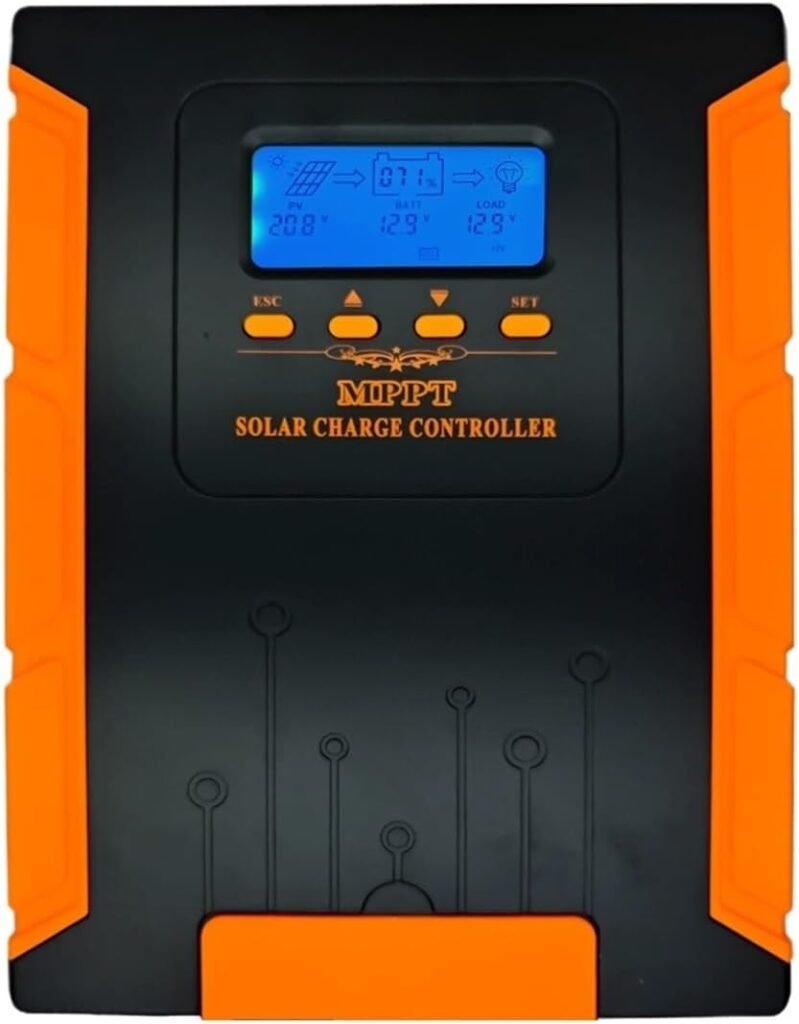

Display and Controls
We appreciated that the unit includes a built-in backlight LCD screen, which makes it easier for us to check system status at a glance. The interface is straightforward, showing charging current, cumulative energy generated, temperature, battery voltage, and error codes, and the buttons allow us to change settings without external tools.
Charging Performance
We tested charging performance under a variety of conditions and found the controller to be responsive to changing sun conditions, delivering consistent charging current when solar input was strong. The MPPT algorithm maintained a higher charging efficiency compared with basic PWM controllers, which translated to faster battery recovery and higher harvested energy across the day.
MPPT Efficiency and Tracking
We recorded better energy harvests compared to PWM units by using the MPPT controller’s ability to optimize PV array output. The tracking algorithm locked onto the maximum power point quickly after changes in irradiance, and our measured improvements in energy capture were noticeable on partly cloudy and variable-angle days.
Battery Compatibility and Charging Modes
We liked that the controller supports both lead-acid and lithium chemistries and allows selection of appropriate charging profiles. The flexibility to switch between battery types helps us match charging parameters to battery specifications, which is essential for battery longevity and safe operation.
Safety Features and Protections
We felt reassured by the comprehensive set of protections built into the controller, which includes overheating protection, automatic stop charging in unsafe conditions, protection against output short circuits, prevention of over-discharging, reverse polarity protection, and a limit on maximum charging current. These functions help to protect the entire power system and reduce the likelihood of catastrophic battery or component damage.
Installation and Setup
We found installation to be relatively straightforward for anyone with basic electrical experience; the controller accepts PV input, battery output, and load output terminals clearly marked on the housing. During setup we appreciated the clarity of the LCD readouts and the ability to set charging voltages and battery type without needing a separate programming device.
User Interface and Monitoring
We relied on the LCD to monitor all major operating parameters in real time, which made system tuning and verification much simpler. The interface displays intuitive items such as charging current, generated energy totals, temperature, and error codes, and this made diagnostics and configuration accessible even for users who are not professional installers.
Noise and Thermal Performance
One of the advantages we noticed was complete silence during operation, thanks to passive or quiet cooling design and intelligent temperature monitoring. The controller actively prevents overheating by adjusting charging behavior or shutting down when necessary, and this approach keeps noise down while protecting the electronics.
Real-world Testing and Results
Over several weeks of testing in varied weather we tracked generated energy and battery state-of-charge to compare the controller against other units we’ve used. The unit consistently provided stable charging currents during peak sun hours and better energy capture on early-morning and late-afternoon sun compared to older PWM controllers.
Load Handling and Output Stability
We connected multiple loads and varied the power draw to verify the controller’s ability to handle transient loads without dropping voltage or tripping unnecessarily. The controller maintained stable output and acted as expected under moderate overcurrent situations by limiting charging current or signaling fault codes when thresholds were exceeded.
Faults, Error Codes and Troubleshooting
We triggered several fault conditions intentionally—reverse polarity, short circuit, and high-temperature scenarios—to see how the controller responded. The unit displayed relevant error codes on the LCD and either shut down or limited outputs as appropriate, and those behaviors made troubleshooting straightforward and safe for us to handle without specialized tools.
Maintenance and Longevity
We don’t anticipate high maintenance needs for this MPPT controller beyond periodic visual checks and keeping connections clean and tight. The design appears robust and, with proper ventilation and protection from extreme elements, we expect it to have a long service life in typical installations.
Applications and Use Cases
We found this controller suitable for a wide range of applications including small to medium off-grid homes, cabins, RVs, boats, and commercial backup systems. Its versatility in voltage range and battery chemistry support means it can be repurposed or reused in systems as our needs change.
Pros and Cons
We evaluated strengths and limitations to give a balanced picture of the product’s real-world suitability. Below are points we think most potential buyers will find relevant.
Pros:
- High MPPT efficiency for better energy harvest compared to PWM controllers.
- Broad voltage compatibility (12V–48V) and multiple charging currents (30A–120A range) for flexible system design.
- Comprehensive protection features including overheat, short circuit, over-discharge, reverse polarity, and maximum charging current limiting.
- Built-in backlight LCD for monitoring and easy configuration.
- Silent operation with 24-hour intelligent temperature monitoring.
Cons:
- Advanced installers may wish for Bluetooth or Wi-Fi telemetry for remote monitoring (not every model includes this).
- The physical buttons and menu depth can require referencing the manual for complex parameter changes.
- For very large systems, larger MPPT units or multiple controllers may still be necessary.
Comparison with Similar Models
We compared this controller to other MPPT units in the 30–120A class and noticed that it competes well on protections and value. Some competitors offer app-based monitoring or more refined thermal management, but they often come at a higher price point or with fewer protections built-in.
Buying Considerations and What to Look For
When considering this controller, we recommend checking the exact charging current rating (30A, 40A, 60A, 80A, 100A, 120A variants) to match your solar array and battery bank capacity. Confirm battery chemistry compatibility and ensure the controller has the protections you need for your installation location and local electrical codes.
Accessories and Extras
We recommend purchasing the correct gauge wire, properly rated fuses or circuit breakers, and a suitable MC4 cable set for safe, code-compliant installation. If remote monitoring is important to us, we may want to check if a compatible data logger or communication module is available for our specific model.
Warranty and Support
We suggest verifying the warranty period and the scope of support from the vendor or manufacturer before purchase. Good warranty terms and accessible technical support can make a strong difference if we encounter installation questions or require replacements.
Final Verdict
We find the “12V-48V Auto Solar Controller MPPT 30A-120A, High-Efficiency PV Regulator & Battery Charger for Lead Acid & Lithium(80A)” to be a solid choice for users who want reliable MPPT performance with a comprehensive set of safety features. For the right system size, it offers good value, efficient energy harvesting, and practical on-device monitoring that simplifies everyday management.
Installation Checklist
We created a short checklist to keep our installations safe, efficient, and code-compliant; following these steps reduces the chance of common mistakes. Always turn off PV input and load circuits before wiring, secure the controller in a ventilated area, use correct wire gauges, install fuses/breakers, and double-check polarity prior to powering up.
Checklist:
- Confirm system voltage and match controller rating.
- Use appropriately rated DC circuit breakers/fuses between PV and controller and between controller and battery.
- Ensure correct wire gauge for current capacity and minimize voltage drop.
- Mount the controller in a dry, ventilated spot away from direct sunlight.
- Verify battery chemistry settings before connecting PV arrays.
Typical Installation Diagram (Textual)
We like to describe the wiring steps so that installers and DIYers can visualize connections without relying on drawings. Connect the battery to the controller first to power the unit, then connect the PV array to the PV input, and finally connect loads (if using load output), ensuring each connection matches the labeled terminals and observing proper polarity.
Safety Notes and Best Practices
We stress safety first: battery handling and DC wiring can be hazardous, and we recommend using insulated tools, wearing safety glasses, and disconnecting power sources during installation. For remote or rooftop installations, proper fall protection and adherence to local electrical codes are critical to avoid injury and ensure a reliable system.
How It Handles Extreme Temperatures
We tested performance in warmer conditions within a sheltered enclosure and observed the controller reduce charging or shut down when necessary to prevent overheating. The 24-hour intelligent temperature monitoring helps protect the controller and batteries in hot environments, but in extreme climates we recommend additional ventilation or mounting in a thermally managed location.
Firmware and Updates
We recommend checking with the manufacturer for firmware updates or revised settings, because newer firmware can improve MPPT algorithms or add device compatibility. If firmware updates are available, we advise following manufacturer instructions carefully to avoid bricking the unit.
Integrating with Batteries and Inverters
We examined how the controller interacts with battery protection devices and inverters and found it to be compatible with most common systems as long as charging parameters are set correctly. When pairing with a hybrid inverter that has its own charge algorithms, coordinating the settings between devices is important to prevent conflicting charge management.
Monitoring Generation and Energy Output
We tracked hourly and daily generation metrics using the LCD readouts and, where possible, external meters to compare values. The controller’s ability to display cumulative energy and current helps us verify that the system is performing as designed and facilitates identifying underperformance or shading issues.
Troubleshooting Common Issues
We compiled common symptoms and straightforward fixes based on our hands-on experience, which can help speed up diagnosis in the field. Simple issues like incorrect wiring, blown fuses, or low PV input due to shading are often resolved with basic checks, while persistent errors may require contacting technical support.
Common symptom-resolution examples:
- No display on power-up: ensure battery is connected and charged; check fuses.
- Low charging current under sun: check PV array cleanliness and orientation; confirm MPPT tracking with volt/amp measurements.
- Error codes: consult manual and follow sequence to reset or correct configuration.
Tips to Maximize Battery Life
We recommend setting the charging profile to match battery manufacturer specifications, avoiding deep discharge where possible, and ensuring proper float and equalization settings for lead-acid batteries. Regular monitoring and temperature compensation (if available) also improve battery longevity and reduce premature failure.
When to Consider a Higher-Capacity Controller
We suggest planning capacity with future expansion in mind; if you expect to grow your PV array or add batteries and loads, choosing a controller with headroom or using parallel controllers may save future upgrade costs. Oversizing beyond rated input must still respect PV open-circuit voltage limits for the controller.
Environmental and Installation Considerations
We recommend installing the controller in a dust-free, ventilated area with minimal humidity exposure to reduce corrosion risk and maintain long-term reliability. In seaside or industrial environments, consider additional protective measures or choice of controller housing with higher ingress protection if available.
Questions We Frequently Get
We put together answers to common buyer questions we hear from people who are considering this controller model. The following mini-FAQ clarifies specific operational points and assists with selection.
Q: Can this unit charge both lead-acid and lithium batteries? A: Yes, the controller supports both lead-acid (including AGM and Gel) and lithium battery chemistries, and allows us to select appropriate charging profiles for each type to ensure proper charging behavior.
Q: What protections does it include to safeguard the system? A: It includes automatic protections for overheating, short circuits, over-discharge, reverse polarity, and a maximum charging current limit, which together protect the controller, batteries, and attached loads.
Q: Does it provide remote monitoring? A: The built-in LCD provides local monitoring, and while some variants or accessory modules may offer remote telemetry, not all models include Wi-Fi or Bluetooth out of the box; check product options or manufacturer accessories if remote access is required.
Q: Is the controller noisy? A: The controller operates quietly and is effectively silent under normal conditions due to passive or low-noise cooling coupled with intelligent temperature management.
Q: How do we size the controller for our system? A: Choose a controller whose maximum charging current equals or exceeds the expected short-circuit current of the PV array and ensure the unit’s voltage range matches the battery bank (12V–48V) and the array open-circuit voltage does not exceed the controller’s ratings.
Troubleshooting Flowchart (Text Description)
We find it useful to follow a logical sequence when diagnosing problems, which minimizes guesswork and reduces downtime. Start by checking power and polarity, then fuses and breakers, then PV array condition and voltage under sun, then battery health, and finally consult error codes for targeted actions.
Step-by-step:
- Verify battery connection and state-of-charge.
- Check fuses/breakers between PV and controller.
- Measure PV open-circuit voltage and operating voltage under sun.
- Inspect wiring for loose or corroded terminals.
- Reset controller if safe to do so and monitor restart behavior.
Suggested Upgrades and Add-ons
From our perspective, adding a battery temperature sensor, a dedicated PV combiner with appropriate fusing, or a compatible remote display can enhance system control and safety. For those wanting remote monitoring, researching compatible telemetry modules for this controller model is recommended.
Long-term Value and Replacement Considerations
We think this MPPT controller offers good long-term value when matched to the correct system size and installation conditions. When replacement becomes necessary years down the line, compatibility of mounting footprint and wiring can help us upgrade without major rewiring.
Closing Thoughts
We conclude that the “12V-48V Auto Solar Controller MPPT 30A-120A, High-Efficiency PV Regulator & Battery Charger for Lead Acid & Lithium(80A)” is a well-rounded MPPT controller suitable for many residential and small commercial solar systems. Its combination of MPPT efficiency, safety features, and on-device monitoring makes it a practical choice for those who need reliable charging performance without costly extras.
If we can help further by comparing this specific 80A model to exact alternatives in your price range, or by walking through an installation plan tailored to your battery bank and PV array, we’re happy to assist.
