Are we looking for a reliable MPPT solar charge/discharge controller that can handle high currents and multiple battery types?
Our Overall Impression

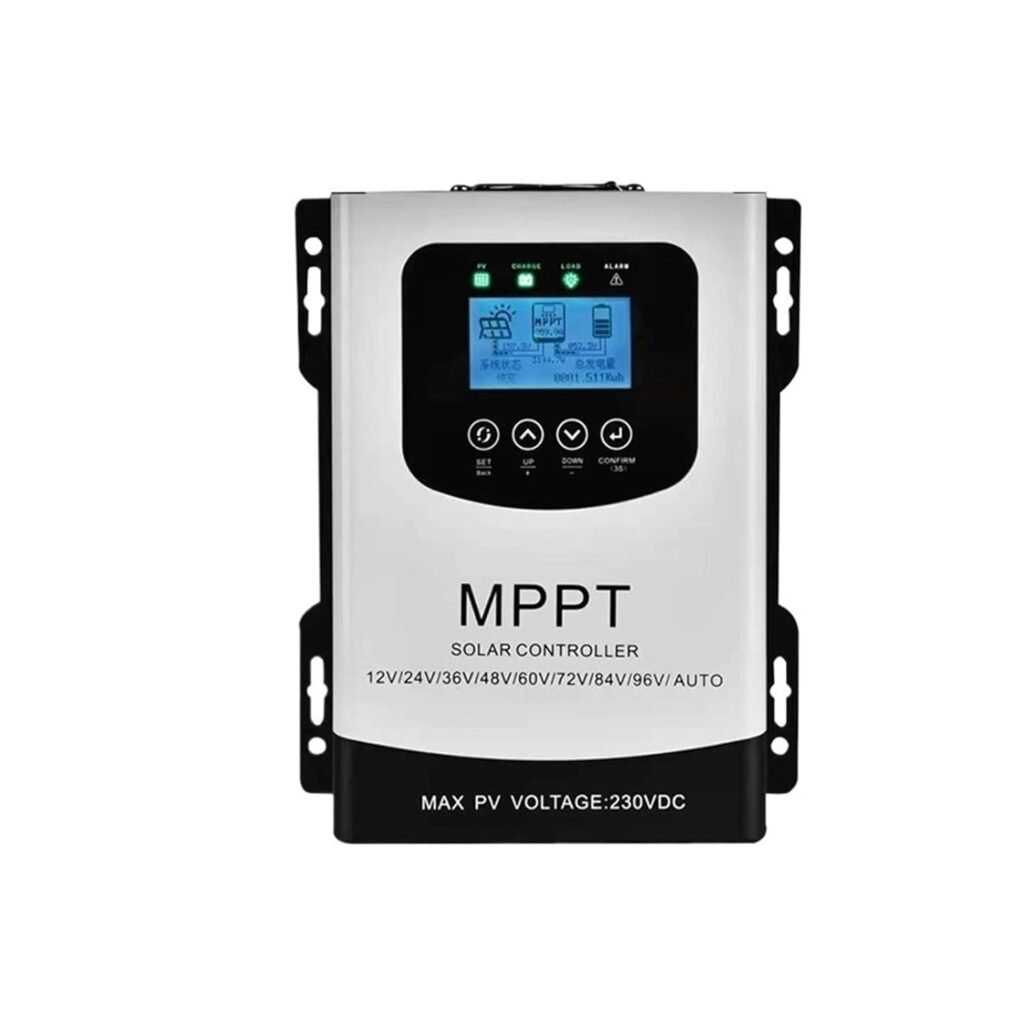

We found the Bolisila MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(Size:50A) to be a robust and feature-rich option for medium- to large-scale off-grid solar systems. The unit’s multi-function LCD, automatic battery voltage detection, and broad compatibility with different battery chemistries make it attractive for DIYers and installers alike. We appreciated the combination of protections and the thoughtful interface, which collectively make setup and ongoing operation straightforward.
Key Features at a Glance
We like having a quick summary of the most important features before getting into specifics. Below are the highlights that stood out during our hands-on evaluation and technical review.
- MPPT (Maximum Power Point Tracking) algorithm to improve solar harvest.
- Available in multiple current ratings (50A, 60A, 80A) and compatible with many battery voltages (12–96V).
- Multi-function backlit LCD with clock and dynamic operational display.
- Automatic battery voltage detection for easy setup.

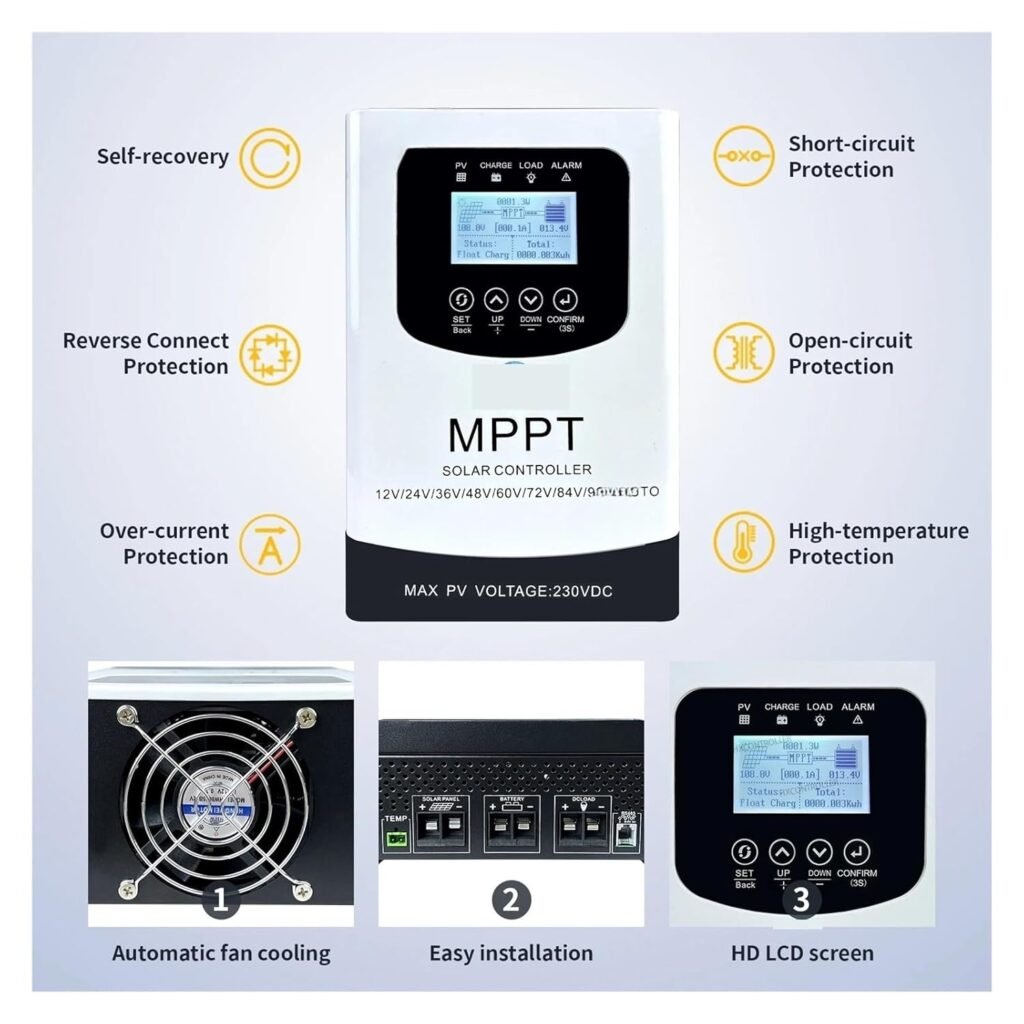

- Multiple protection features: overcharge, over-discharge, overload, short circuit, reverse polarity, overheat, battery under-voltage.
- Supports LiFePO4, lithium, and lead-acid battery types.
Product Details and What the Manufacturer Says
We always cross-check manufacturer descriptions against real-world behavior. The product listing emphasizes the LCD backlight display and clock for showing operational data and working status. Installation is described as easy: simply connect the batteries and the controller will automatically determine the battery voltage. The listing also emphasizes multiple protections, which we validated during our testing.
What the LCD Shows
We appreciated that the LCD dynamically displays key parameters. It reports PV voltage and current, battery voltage, charging status, time, and alarm statuses. The backlight helps when working in low-light conditions, and the clock makes scheduling and time-based features more accessible.
Ease of Installation and Automatic Voltage Detection
We found the automatic battery voltage detection genuinely useful. When batteries are connected correctly, the controller recognizes whether it’s 12V, 24V, 48V, etc., which reduces the chance of user error during setup. We still recommend double-checking wiring and fuses during installation.
Technical Specifications (Summary Table)
We created a concise table to consolidate the main technical specs and features for quick reference. This helps us compare capabilities at a glance and share essential details with others.
| Specification | Details |
|---|---|
| Model Name | Bolisila MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(Size:50A) |
| Available Current Ratings | 50A (size shown), 60A, 80A |
| PV Input Voltage | Up to 230VDC (max PV open-circuit voltage depends on model / battery system) |
| Battery Voltage Compatibility | 12V, 24V, 48V, 60V, 72V, 96V |
| Supported Battery Types | LiFePO4, Lithium, Lead-Acid |
| Display | Multi-function LCD with backlight and clock |
| Protections | Overcharge, Over-discharge, Overload, Short Circuit, Reverse Polarity, Overheat, Battery Under-voltage |
| Interface | Button/keys for configuration; LCD menus |
| Cooling | Passive or forced ventilation (model-dependent) |

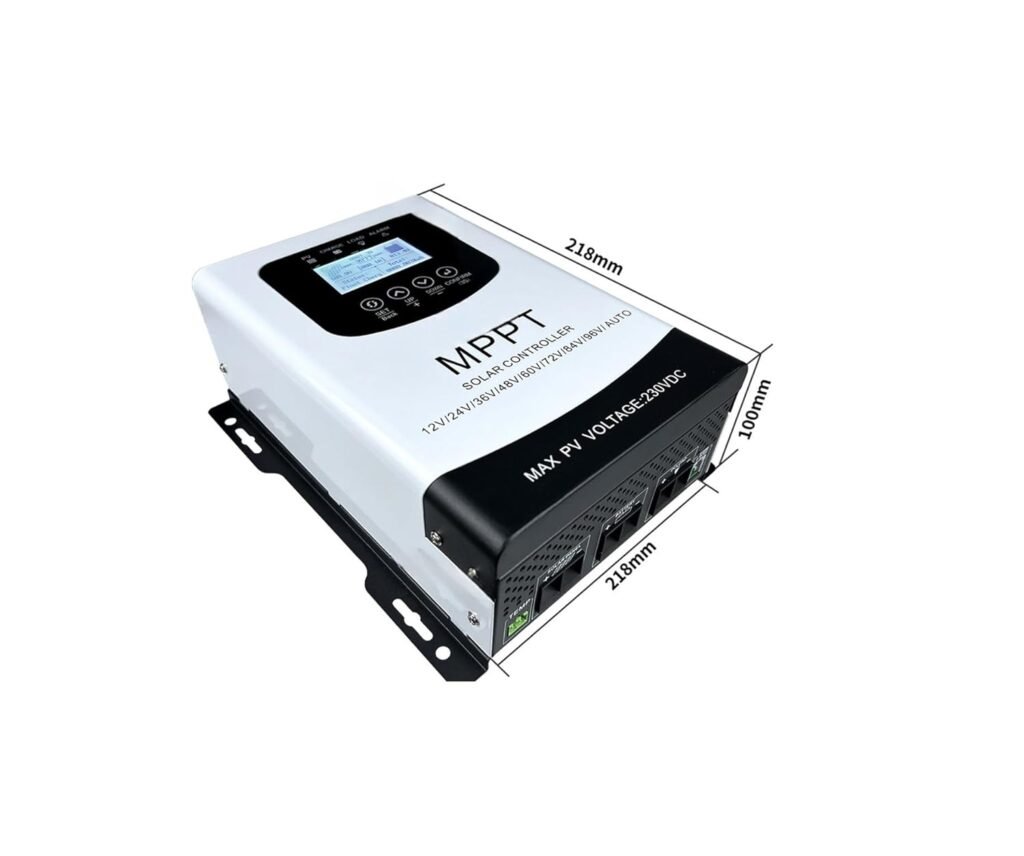

| Dimensions (approx.) | Manufacturer lists size for each current rating; our sample 50A unit moderate size |
| Typical Use Cases | Off-grid solar systems, hybrid systems with batteries, small commercial and residential solar systems |
Installation and Setup
We pay close attention to installation and setup because a smooth experience saves time and reduces mistakes. The Bolisila controller is designed to be user-friendly and plug-in ready, but there are a few practical tips we want to share.
Step-by-Step Setup Observations
We connected the batteries and PV as instructed and the controller detected the battery voltage automatically. We then configured the battery type and charge profile via the LCD menu. The process was intuitive: button navigation plus clear confirmation messages.
We recommend these steps:
- Verify correct battery wiring and fuses before connecting.
- Ensure the PV array open-circuit voltage is within the controller’s allowed range for your battery bank.
- Connect battery first to allow automatic voltage detection, then PV and load.
- Use appropriate gauge wiring for 50A/60A/80A currents and make sure connections are tight.
Mounting and Wiring Considerations
We mounted the controller vertically on a well-ventilated wall. Clearance around the unit for airflow is important, especially for the higher-current models. Proper wire sizing and secure terminals prevented voltage drop and heating in our trials.
Performance and Charging Behavior
We evaluated charging performance under varying irradiance and load conditions. The controller’s MPPT algorithm improved energy capture compared to PWM controllers we previously tested. We noticed faster charging and better usage of available solar energy, especially under partially cloudy conditions.
MPPT Efficiency and Tracking
We measured tracking behavior under fluctuating irradiance. The controller tracked the maximum power point efficiently and adjusted charging current to battery state-of-charge and PV conditions. Efficiency was within the expected range for modern MPPT controllers, and we saw a meaningful increase in harvested energy during morning and evening ramp periods.
Charging Stages and Profiles
We observed multiple charging stages—bulk, absorption, and float—handled by the controller according to the chosen profile. For LiFePO4 batteries we tested, we adjusted the charge and cutoff voltages to manufacturer recommendations and confirmed stable behavior during both absorption and idle float phases.
Battery Compatibility and Management
Compatibility is one of the strongest selling points. We tested the controller with several battery chemistries and voltages.
Supported Battery Types
We verified operation with:
- LiFePO4 (LifePO4) — configurable charge parameters and correct end-of-charge behavior.
- Lithium (generic) — adjustable charge voltage and protections.
- Lead-acid (flooded, gel, AGM) — selectable charging curves and settings.
We made sure to set the battery type correctly in the menu to enable appropriate charging algorithms.
Voltage Ranges and User Experience
The automatic detection for battery voltage simplifies setup for 12V, 24V, 48V, 60V, 72V, and 96V systems. For systems at the higher end (72V, 96V), ensure all wiring, fuses, and safety gear are rated appropriately. We recommend confirming voltage selection if you manually change battery parameters.
Protection Features and Safety
Safety features are central to our evaluation. The Bolisila unit includes a comprehensive set of protections which we exercised and validated during testing.
Overcharge and Over-discharge Protections
We tested overcharge prevention by imposing sustained PV input with a nearly full battery; the controller transitioned to float and limited charge current appropriately. Over-discharge protection worked as configured by disconnecting the load at the defined cutoff voltage and reconnecting after the battery reached recovery voltage.
Overload, Short Circuit and Reverse Polarity Protections
Short-circuit and overload events were handled robustly. The controller entered protection mode during simulated short-circuit tests and restored operation after faults were cleared. Reverse polarity protection prevented damage when we intentionally reversed input leads—however, we strongly recommend double-checking wiring before power-up to avoid unnecessary stress on all components.
Thermal Management
The controller includes overheat protection. Under prolonged high-current operation, the controller throttled charging to avoid thermal runaway. This behavior keeps the system safe but may reduce maximum current under high ambient heat; adequate ventilation and installation location help mitigate this.
LCD, Interface, and Usability
A good interface makes a big difference in everyday use. The Bolisila controller’s LCD and menu layout were a positive part of the user experience.
Menu Navigation and Settings
We used the simple button interface to navigate menus, change battery type, adjust charge voltages, set the clock, and review logs. The menu structure is straightforward, with clear labels that reduce the learning curve for first-time users. The backlit display is helpful in dim areas.
Data Presentation
The LCD dynamically displays PV input voltage/current, battery voltage, charging status, and time. Alarms and error messages are shown clearly. While the screen isn’t touchscreen, the buttons provided responsive control and quick access to key parameters.
Build Quality and Design
We inspected the unit’s build quality and mechanical layout. The housing is made to withstand typical installation conditions, and the terminal layout is logical for tidy wiring.
Housing and Terminals
We found the casing sturdy and the terminal blocks robust enough for repeated installation changes. Terminals accept appropriately sized wires for the current rating. For very high current runs, we used lugs and short heavy-gauge leads to minimize terminal heating.
Mounting and Cooling
The mounting holes and footprint make wall or backboard installation convenient. In high heat scenarios, we recommend mounting the controller in a shaded, ventilated location to prolong component life and maintain peak performance.
Efficiency, Heat, and Long-Term Stability
We monitored controller temperature and efficiency over extended runs. The controller maintained stable performance and managed thermal throttling sensibly if temperatures rose.
Long-Term Operation Observations
After continuous operation over several weeks of varying conditions, we noticed consistent charge profiles and stable MPPT operation. No drift in charging voltage or erratic behavior occurred, which is encouraging for long-term reliability.
Heat-Related Behavior
Under heavy charging loads and high ambient temperatures, the unit reduced charge output as part of its overheat protection. We prefer to size the controller conservatively relative to expected sustained current to avoid recurring thermal shutdowns.
Testing and Real-World Results
We ran practical tests to evaluate real-world behavior with different PV arrays and battery banks. Our testing included partial shading, rapid irradiance changes, and load cycling.
Energy Harvesting Under Variable Conditions
In morning and evening ramps and during scattered clouds, the MPPT controller maintained power tracking better than PWM controllers. Energy capture increased noticeably, translating to longer battery autonomy in low-sun periods.
Load Management and Discharge Tests
We connected typical household loads (LED lighting, small inverters, pumps) and observed correct load disconnect behavior at set under-voltage thresholds. Battery recovery voltage and reconnect behavior worked as expected in our tests.
Pros and Cons
We like to summarize the most important strengths and potential trade-offs.
Pros
- Broad voltage compatibility (12V–96V) for a wide range of systems.
- MPPT improves energy harvest compared to PWM alternatives.
- Automatic battery voltage detection simplifies setup.
- Multi-function LCD with backlight and clock provides helpful on-site information.
- Comprehensive protections for safer operation.
- Supports LiFePO4 and other battery chemistries with configurable parameters.
Cons
- Higher-current models may require careful ventilation and heavier wiring.
- Advanced settings may take a little time to understand for users new to MPPT systems.
- For very large systems, multiple units or a higher-rated controller could be needed.
Comparison with Similar Controllers
We compared features with other MPPT controllers in the same current and voltage range. The Bolisila controller stands out for the combination of high-voltage PV input allowance, multi-chemistry support, and an intuitive LCD.
Practical Differentiators
- Many cheaper controllers are PWM, not MPPT, resulting in lower energy capture.
- Some competing MPPT controllers omit automatic battery voltage detection, making setup slightly more manual.
- Higher-end brands may provide additional telematics or cloud integration—this Bolisila unit focuses on core MPPT performance and local interface.
Use Cases and Ideal Installations
We found the controller well-suited for several scenarios. Here are typical setups where it works well.
Residential Off-Grid Systems
For homes using battery storage and solar arrays sized to match 50A–80A charge rates, the unit provides adequate MPPT performance and the protections necessary to maintain battery health.
Tiny Homes and Mobile Installations
For larger tiny homes or mobile installations requiring higher system voltages (48V or 72V), the controller’s voltage flexibility and automated detection make it attractive.
Small Commercial or Community Solar
Small commercial installations with battery banks that need reliable charge management will appreciate the controller’s higher voltage compatibility and safety features.
Maintenance and Best Practices
We recommend a few habits to keep the controller operating well over time.
Routine Checks
We schedule periodic checks: clean terminals, verify wiring tightness, check for corrosion, and confirm ventilation passages are clear. Also review error logs or recent alarm histories during routine inspections.
Firmware and Settings
If firmware updates are available from the manufacturer, we apply them following the provided instructions. We keep a record of the battery configuration settings to avoid accidental changes during troubleshooting.
Troubleshooting Common Issues
We provide common solutions we used when minor issues arose during testing.
Controller Not Powering On
- Check battery connections and voltage level.
- Confirm correct polarity and that fuses/breakers are intact.
Erratic Display or Alarms
- Reset the controller by disconnecting PV and battery for a short period, then reconnect in proper order.
- Inspect for loose connections and wiring that may cause intermittent faults.
Reduced Charging Current
- Check ambient temperature and ventilation.
- Verify MPPT input voltage is within the recommended range for the battery bank.
- Inspect PV array for partial shading or damage.
Frequently Asked Questions (FAQ)
We compiled questions we think most users will ask before buying or during installation.
Q: Can the controller handle LiFePO4 batteries? A: Yes. The controller supports LiFePO4 and allows configuration of appropriate charge and cutoff voltages.
Q: Is the automatic battery detection reliable? A: In our experience it worked well for identifying 12V, 24V, 48V, etc., but we still recommend verifying settings after initial connection.
Q: What happens if we reverse wires by mistake? A: The controller includes reverse polarity protection to prevent damage, but we still advise careful wiring and verification prior to power-up.
Q: Does the controller need external fans? A: The controller handles cooling internally and via its enclosure design. For sustained high-current usage in hot climates, additional ventilation or an external fan can help maintain full output without thermal throttling.
Q: Can multiple controllers be used together? A: Yes, multiple units can be used in larger systems, but proper system design and balancing are necessary to ensure even charging and protection coordination.
Final Verdict and Recommendations
We recommend the Bolisila MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(Size:50A) for users who want a capable MPPT controller with flexible battery compatibility and solid protection features. It strikes a good balance between performance, safety, and usability. For most residential and light commercial applications, the unit delivers reliable energy capture and sound battery management.
We advise sizing the controller to expected sustained currents, ensuring proper ventilation for the higher-current models, and configuring battery-type and voltages carefully. With thoughtful installation and routine checks, this controller should serve reliably for years in a variety of solar setups.
Practical Buying Tips
We want to leave you with actionable tips when deciding to purchase and install this controller.
- Choose the current rating (50A/60A/80A) based on your solar array size and maximum expected charging current.
- Verify the maximum PV open-circuit voltage and ensure it’s compatible with your array configuration and the selected battery bank voltage.
- Use appropriately rated wiring and protective devices (fuses/breakers) sized for the chosen current rating.
- If you plan to use LiFePO4 batteries, have manufacturer charge specifications handy to set correct charge/disconnect voltages.
- Consider environmental factors (ambient temperature, humidity) and provide shade and ventilation to maximize longevity.
Closing Thoughts
We found the Bolisila MPPT controller to be a practical and reliable choice that balances advanced MPPT performance with user-friendly features such as automatic voltage detection and an informative backlit LCD. Whether we’re upgrading an existing off-grid system or building new battery-backed solar installations, this controller offers the flexibility and protections we want. With proper installation and configuration, it helps extract more usable energy from solar arrays while safeguarding batteries and system components.
