Have we ever wished our power system felt as dependable as flipping a light switch—no drama, no stress, just solid performance every time?

Table of Contents

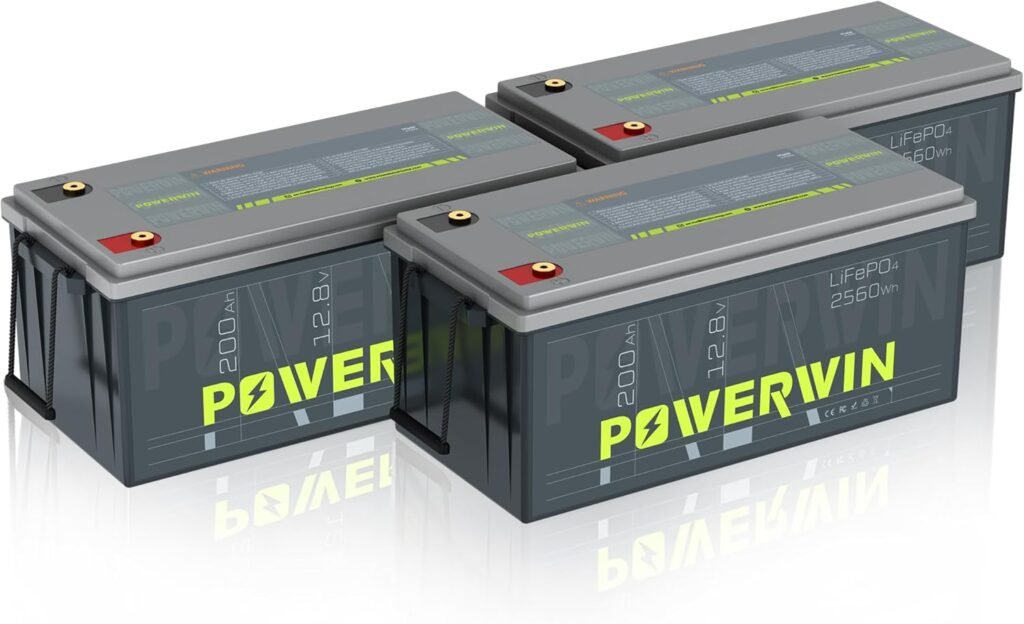

What Is the BT200 12V 200Ah LiFePO4 Battery?

When we talk about the BT200 12V 200Ah LiFePO4 Deep Cycle Battery – 100A BMS, 15,000 Cycles, we are looking at a modern, efficient, and safe lithium battery solution designed for serious off-grid, RV, marine, and home energy storage users. This particular product pack includes 3 batteries, which opens the door to building a powerful, scalable system.

We are not just dealing with a generic battery. We are working with a LiFePO4 (Lithium Iron Phosphate) unit, which is known for safety, stability, and long cycle life. That makes this setup ideal for those of us building long-term energy systems rather than just temporary solutions.

Key Specifications at a Glance

Before we get into performance and real-world use, we find it helpful to look at the core specs. These numbers tell us what kind of power and capacity we can count on.

Here is a quick breakdown of the most important details:

Feature	Specification / Details
Model	BT200 12V 200Ah LiFePO4 Deep Cycle Battery
Battery Chemistry	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	12V
Capacity	200Ah per battery
Energy per Battery	2560Wh (12.8V × 200Ah, typical LiFePO4 nominal)
Included Quantity	3 batteries
Total Energy (3 pcs)	Approx. 7680Wh (3 × 2560Wh)
Battery Management System (BMS)	100A built-in BMS
Cycle Life	4000–15000 cycles (depending on depth of discharge)
DOD @ 4000 cycles	100%
DOD @ 6000 cycles	80%
DOD @ 15000 cycles	60%
Weight per Battery	About 45 lbs
Cell Type	Premium LFP cells
Protection Features	Overcharge, overdischarge, overcurrent, overheating, short circuit
Series/Parallel Capability	Up to 4 in series and 4 in parallel simultaneously, or 4S/8P individually
Main Applications	Solar, RV, off-grid, marine, trolling motor, home energy storage, EV charging support
Warranty	2-year limited warranty

Seeing it laid out this way helps us understand that this is not just a simple drop-in battery; it is a strong, modular building block for larger systems.

Design and Build Quality

The BT200 focuses on a clean, compact form factor that is meant to be easy to handle and integrate into existing setups. The fact that each battery weighs just 45 pounds makes a big difference in real-world situations, such as mounting it in an RV or carrying it into a basement battery bank.

We appreciate this because traditional sealed lead-acid (SLA) batteries with similar usable capacity can weigh two to three times as much. For anyone who has ever wrestled with an 80–100 lb battery in a cramped compartment, this lighter design feels like a noticeable upgrade.

Safety and BMS Protection Features

Built-In 100A BMS

One of the key aspects of this battery is the 100A BMS (Battery Management System). This integrated system actively monitors and manages cell behavior so that we can safely charge and discharge the battery within its design limits.

The 100A rating means we can draw up to around 1200W at 12V (and often more in short bursts, depending on manufacturer rules), which is plenty for many off-grid and RV applications like inverters, fridges, lights, and electronics.

Multiple Safety Protections

The BMS and internal design offer several layers of protection:

Overcharge protection – prevents damage from being charged beyond the safe voltage limit.
Overdischarge protection – stops the battery from being drained so far that it harms the cells.
Overcurrent protection – limits current to prevent wiring or component damage.
Overheating protection – monitors temperature to reduce or cut off charging/discharging if things get too hot.
Short-circuit protection – shuts things down quickly in case of an accidental short in the system.

We value these protections because many of us use these batteries unattended—charging from solar all day or running loads overnight. Knowing that the unit is actively managing itself adds peace of mind.

Capacity, Power, and Cycle Life

Usable Energy and Power Output

Each BT200 battery offers 200Ah at 12V, giving around 2560Wh of energy. With three batteries included in this setup, we are looking at roughly:

7680Wh total combined energy (3 × 2560Wh).

In practice, this means we could, for example:

Run a 500W load for over 15 hours (in ideal conditions).
Run a 1000W inverter load for around 7–8 hours (depending on efficiency and depth of discharge).

Because LiFePO4 allows much deeper discharge than lead-acid without serious damage, we can use most of that capacity regularly, especially at 80–100% DOD if we accept some tradeoff in cycle life.

Long Cycle Life: Up to 15,000 Cycles

The BT200 is rated for 4000–15000 cycles, which is one of its main strengths. Here is how that breaks down:

4000 cycles at 100% Depth of Discharge (DOD)
6000 cycles at 80% DOD
15000 cycles at 60% DOD

If we imagine a daily cycle (charge during the day, discharge at night), we can translate that roughly:

4000 cycles ≈ about 11 years (if used daily at 100% DOD)
6000 cycles ≈ about 16 years (at 80% DOD)
15000 cycles ≈ over 40 years (at 60% DOD, in theory, under ideal conditions)

Of course, actual lifespan depends on temperature, charge settings, and usage patterns, but it is clear that we are in a very different league compared to lead-acid, which often offers around 300–500 cycles at 50% DOD.

Weight and Portability

Lightweight for the Capacity

At about 45 pounds per battery, we get a strong balance of capacity and mobility. For a 200Ah LiFePO4, this is notably lightweight, especially when the product description mentions it is:

About one-third the weight of a typical SLA battery with similar rated capacity.
Around 24% lighter than many average 12V 200Ah LiFePO4 batteries.

If we are building a portable power system, mounting in a van, or reconfiguring our system often, this lower weight makes the physical installation much more manageable.

Easier Installation and Maintenance

Because the units are lighter and smaller than comparable lead-acid banks, we can:

Place them in tighter battery compartments.
Mount them on shelves or racks more easily.
Transport them between home and off-grid locations if needed.

This matters to us when we do RV conversions, boat upgrades, or home battery banks, where space and handling are constant constraints.

Series and Parallel Configuration Options

Flexible System Design

One of the most attractive aspects of the BT200 is its scalability. The manufacturer states that these batteries can be arranged:

Up to 4 in series and 4 in parallel simultaneously, or
4 in series and 8 in parallel individually (depending on the specific configuration rules we follow).

In plain terms, this means:

Series connections increase voltage (e.g., 12V → 24V → 36V → 48V).
Parallel connections increase capacity (Ah) at a given voltage.

With three batteries in this package, we have multiple configuration options, such as:

All three in parallel at 12V → 12V, 600Ah system (~7.68kWh).
Two in series, one as a separate 12V unit (for different roles, though we usually want matching packs in a system).

If we later expand and buy more BT200 units, we can build robust 24V, 36V, or 48V banks with large capacities, which suits larger inverter systems and whole-home backup.

Why Scalability Matters

We often start with a smaller system and then add more capacity later when budget allows or energy needs increase. Because this battery can comfortably be integrated into series/parallel setups, we do not have to tear down our whole system to grow. Instead, we can:

Build a basic 12V or 24V system now.
Add more BT200 batteries in parallel as our power usage grows (for example, adding more solar or loads).

This makes the BT200 well-suited for long-term energy planning.

Real-World Applications

RV and Van Life Power

For RV and van users, the BT200 offers a practical upgrade path from lead-acid. Using three of these:

At 12V, 600Ah, we can run fridges, water pumps, lights, fans, and inverters for long periods.
The lower weight reduces overall vehicle load and improves fuel efficiency compared to heavy lead-acid banks.

We like that LiFePO4 also supports faster charging from alternators (with proper DC-DC chargers) and solar, making travel days and sunny days more productive.

Off-Grid Solar Systems

For off-grid cabins or tiny homes, a 3-battery BT200 pack can serve as the heart of a small to mid-sized solar system:

Connect to a solar charge controller set up for LiFePO4 charge profiles.
Pair with an inverter/charger to run AC loads like appliances, tools, and electronics.

The long cycle life makes these batteries a strong investment for off-grid users who rely on stored energy daily, year after year.

Marine and Trolling Motor Use

On boats, weight and reliability are crucial. These batteries are well-suited for:

Trolling motors – the consistent voltage profile of LiFePO4 means less performance drop as they discharge.
House loads – including navigation gear, lights, pumps, and onboard electronics.

The internal protections help keep the battery safe in demanding marine environments, where vibration and variable charging conditions are common.

Home Energy Storage and Backup

For home use, we can integrate the BT200 batteries into a backup or partial off-grid setup:

Provide emergency power for fridges, communication devices, lights, and key appliances during grid outages.
Support small-scale solar systems that offset grid usage and store energy for night-time use.

We appreciate that the LiFePO4 chemistry is more thermally stable than other lithium types, which is a plus for indoor or semi-indoor installations (with proper ventilation and in line with manufacturer and code requirements).

EV Charging Support Role

The description mentions EV charging support, which does not mean this is an EV traction battery, but rather that we could:

Use it as a buffer battery in an off-grid or weak-grid environment.
Charge the BT200 bank from solar or grid, then feed a small EV charger (within power limits) via an inverter.

This scenario is especially attractive to those of us trying to charge small EVs, e-bikes, or plug-in hybrids with solar power where grid reliability is poor.

Performance vs Lead-Acid Batteries

Longer Life and Better Value Over Time

Compared to traditional sealed lead-acid (SLA) batteries, the BT200 offers:

Up to 10 times the cycle life.
Much greater usable capacity per cycle (we can use 80–100% of capacity regularly).
Reduced need for replacement over the years.

While the upfront cost of LiFePO4 is higher than lead-acid, the cost per cycle is usually much lower. We spend more once, but we save by not having to replace banks every few years.

Voltage Stability

One of the things we notice with LiFePO4 is the much flatter voltage curve. That means:

The voltage stays relatively stable throughout discharge.
Inverters and DC loads perform better for longer.

With lead-acid, we often feel the system sag: lights dim, inverters complain, and equipment behaves less reliably as the battery drains. With the BT200, the system tends to feel more “solid” from full charge down to a much lower state of charge.

Installation Considerations

Wiring and Connections

When using three BT200 batteries, especially in parallel or series/parallel setups, we need to pay attention to:

Proper gauge cabling to handle up to 100A (or higher system currents if we use multiple batteries).
Balanced wiring for parallel banks (equal-length cables, bus bars where possible).
Secure mounting to prevent movement, especially in mobile or marine applications.

We recommend planning out the system layout on paper first, including inverter, charger, and fuse placements. This saves frustration later.

Charging Settings

To keep the batteries healthy, our chargers and controllers should be:

Set to LiFePO4 charging profiles, not lead-acid defaults.
Configured with proper absorption and float voltages recommended by the manufacturer.

Overcharging or chronically undercharging can shorten lifespan, so using equipment that allows us to fine-tune settings is important.

Reliability, Warranty, and Support

2-Year Warranty

The BT200 comes with a 2-year warranty, which gives us a baseline level of assurance. While we might wish for a longer warranty for such a long-lived chemistry, it is still a useful sign that the manufacturer stands behind the product.

We should always register our purchase (if the manufacturer offers registration) and keep proof of purchase in case we need support.

Ongoing Customer Support

The product description notes always-ready support, which we interpret as offering help with:

Technical questions about system design or configuration.
Troubleshooting performance or installation issues.
Warranty claims in the event of a fault.

For complex systems like off-grid setups, responsive support can be the difference between a smooth experience and a frustrating one, so we appreciate that this is part of the offering.

Pros and Cons of the BT200 12V 200Ah LiFePO4 (3PCS)

To keep our thoughts organized, we find it helpful to summarize the upsides and downsides.

Advantages

We see several strong positives:

Exceptional Cycle Life
- Up to 15,000 cycles at 60% DOD and 4000 cycles even at 100% DOD.
- Extremely cost-effective over the long term.
High Safety Level
- LiFePO4 chemistry plus a robust 100A BMS.
- Multiple protections: overcharge, overdischarge, overcurrent, overheating, short circuit.
Lightweight for the Capacity
- At 45 lbs per battery, easier to handle and mount than many batteries in this capacity class.
Scalability and Flexibility
- Can support up to 4 in series and 4 in parallel simultaneously, or 4S/8P individually.
- Allows building 12V, 24V, 36V, or 48V systems with substantial capacity.
Wide Range of Applications
- Suitable for solar, RV, marine, trolling motor, home energy storage, and EV charging support.
- Works well in both stationary and mobile setups.
High Energy per Unit
- Each battery provides 2560Wh, and three together give us about 7680Wh, which is a solid base for many systems.

Potential Drawbacks

We also see a few points to keep in mind:

Initial Cost vs Lead-Acid
- Upfront investment is typically higher than SLA, which might be a barrier for tight budgets, even though it pays off over time.
BMS Current Limit
- The 100A BMS is adequate for many users, but for very large inverters or high-surge loads, we may need multiple batteries in parallel to share the current or consider a higher-current model.
Requires Proper Charging Equipment
- To fully benefit from LiFePO4, we often need compatible chargers, DC-DC chargers, and charge controllers.
- Older equipment designed strictly for lead-acid may not be ideal without adjustments.
Moderate Warranty Length
- The 2-year warranty is good, but some users might expect longer coverage given the claimed cycle life. We should weigh this against the overall performance and price.

How the 3-Battery Pack Enhances System Design

Having three BT200 batteries in one package gives us interesting design flexibility right from the start. Instead of wondering how to expand later, we already have enough units to get creative.

Example Configuration Ideas

We can consider several examples that might match real-world scenarios:

12V, High Capacity System
- All three in parallel: 12V, 600Ah.
- Ideal for 12V-heavy RV systems, boats, or small off-grid setups.
Two Batteries in Series, One Standby
- Two in series: 24V, 200Ah main bank.
- One battery reserved as additional capacity or for a separate 12V system (although mixing old/new in the same bank later requires care).
Planned Expansion to 48V
- We start with three now, and later add one more to run 4 in series for 48V, 200Ah.
- This is great for high-power home or workshop systems using a 48V inverter.

In each of these scenarios, the BT200’s design allows us to adjust our plan as we learn more about our real-world energy use.

Everyday Use and User Experience

Charging and Discharging Behavior

In day-to-day use, LiFePO4 batteries like the BT200 tend to feel “consistent”:

Voltage holds up well under load, so lights and electronics operate reliably.
Charging from solar is efficient because the battery accepts current readily in the bulk stage.

We notice that, when sized correctly, the battery bank simply fades into the background and just works, which is exactly what we want from a power system.

Noise, Maintenance, and Upkeep

Unlike engine-based generators, the BT200 battery itself makes no noise. Any sound comes from the inverters or fans we pair with it. Maintenance is largely limited to:

Checking cable tightness periodically.
Ensuring no corrosion or damage appears on terminals.
Keeping the unit within recommended temperature ranges.

No topping up fluids, no venting hydrogen, no equalization cycles. This low-maintenance aspect is part of what makes LiFePO4 so attractive.

Ideal Users for the BT200 Battery (3PCS)

We see this product being a strong match for several types of users:

Full-Time or Serious Part-Time RVers
- Those of us who rely heavily on battery power and want long-term reliability and low weight.
Off-Grid Cabin and Tiny Home Owners
- People needing a stable, daily-use battery bank for solar or hybrid systems.
Boat Owners and Anglers
- Users who want reliable trolling motor performance and solid house power with less weight.
Homeowners Seeking Backup Power
- Families who want to keep essentials running during outages, especially paired with solar.
Energy Enthusiasts and DIY System Builders
- Those of us who enjoy designing systems and want a scalable, flexible battery platform that will last for years.

Tips for Getting the Most Out of the BT200

To maximize the value and lifespan of these batteries, we find these practical habits useful:

Use the right charge profile: Ensure chargers and solar controllers support LiFePO4 and follow recommended voltages.
Avoid extreme temperatures: Try to keep the battery within moderate temperature ranges for charging and storage.
Plan for balanced wiring: When connecting multiple units, keep cable lengths similar and use bus bars when possible.
Size the inverter properly: Match inverter power to what the BMS and battery bank can comfortably support.
Monitor the system: If possible, use a battery monitor or smart BMS readout to keep an eye on state of charge and health.

These small steps help us protect our investment and keep the system running smoothly over the long term.

Final Thoughts: Is the BT200 12V 200Ah LiFePO4 (3PCS) Worth It?

Looking at the full picture—capacity, weight, safety, cycle life, and scalability—we see the BT200 12V 200Ah LiFePO4 Deep Cycle Battery (3PCS) as a compelling solution for serious energy users. We get:

A robust LiFePO4 chemistry that is safer and more stable than many alternatives.
4000–15000 cycles of usable life, which can easily outlast multiple sets of lead-acid batteries.
A 100A BMS providing essential protections and solid daily performance.
Lightweight construction at 45 lbs per battery, making installation far less of a chore.
Flexible series and parallel configurations, supporting growth into larger systems over time.

For those of us building or upgrading RV, marine, off-grid, or home energy systems and planning for long-term, reliable power, this 3-battery BT200 package offers a strong combination of performance, convenience, and safety. If we are ready to move past the limitations of lead-acid and invest in a modern power foundation, this battery set stands out as a worthy option to power our journeys, our projects, and our homes for many years to come.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
