BT200 12V 200Ah LiFePO4 Deep Cycle Battery review

Have we ever wished our power setup felt as reliable as flipping a light switch at home—no stress, no drama, just steady energy when we need it?

Table of Contents

Why We Started Looking at the BT200 12V 200Ah LiFePO4 Battery

When our power needs began to stretch beyond what traditional lead-acid batteries could handle, we started searching for something tougher, lighter, and more reliable. That’s when the BT200 12V 200Ah LiFePO4 Deep Cycle Battery – 100A BMS ，15,000 Cycles ，Solar, RV, Off-Grid & Marine ，Trolling Motor & Home Energy Storage (8PCS) came onto our radar.

We were especially interested in its combination of LiFePO4 chemistry, long cycle life, and expandability for larger systems. Our goal was to see whether this battery could realistically become the backbone of a serious off-grid, RV, marine, or home backup system.

Key Features at a Glance

Before we get into the experience and practical usage, we find it helpful to summarize the main specs and claims. This battery packs a lot on paper.

Feature	Specification / Claim
Battery Type	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	12V
Capacity	200Ah
Energy	2560Wh (12.8V × 200Ah)
Weight	~45 lbs (about one-third of comparable SLA)
BMS Rating	100A
Cycle Life	4,000–15,000 cycles (depending on depth of discharge)
DOD @ 4,000 cycles	100%
DOD @ 6,000 cycles	80%
DOD @ 15,000 cycles	60%
Series Support	Up to 4 in series
Parallel Support	Up to 4 in parallel simultaneously, or 8 in parallel individually
Main Applications	Solar, RV, off-grid, marine, trolling motor, home energy storage
Warranty	2 years
Protections	Overcharge, overdischarge, overcurrent, overheating, short circuit

This spec sheet already positions the BT200 as a strong candidate for serious energy storage setups. Now we can walk through how these details actually matter in real-world use.

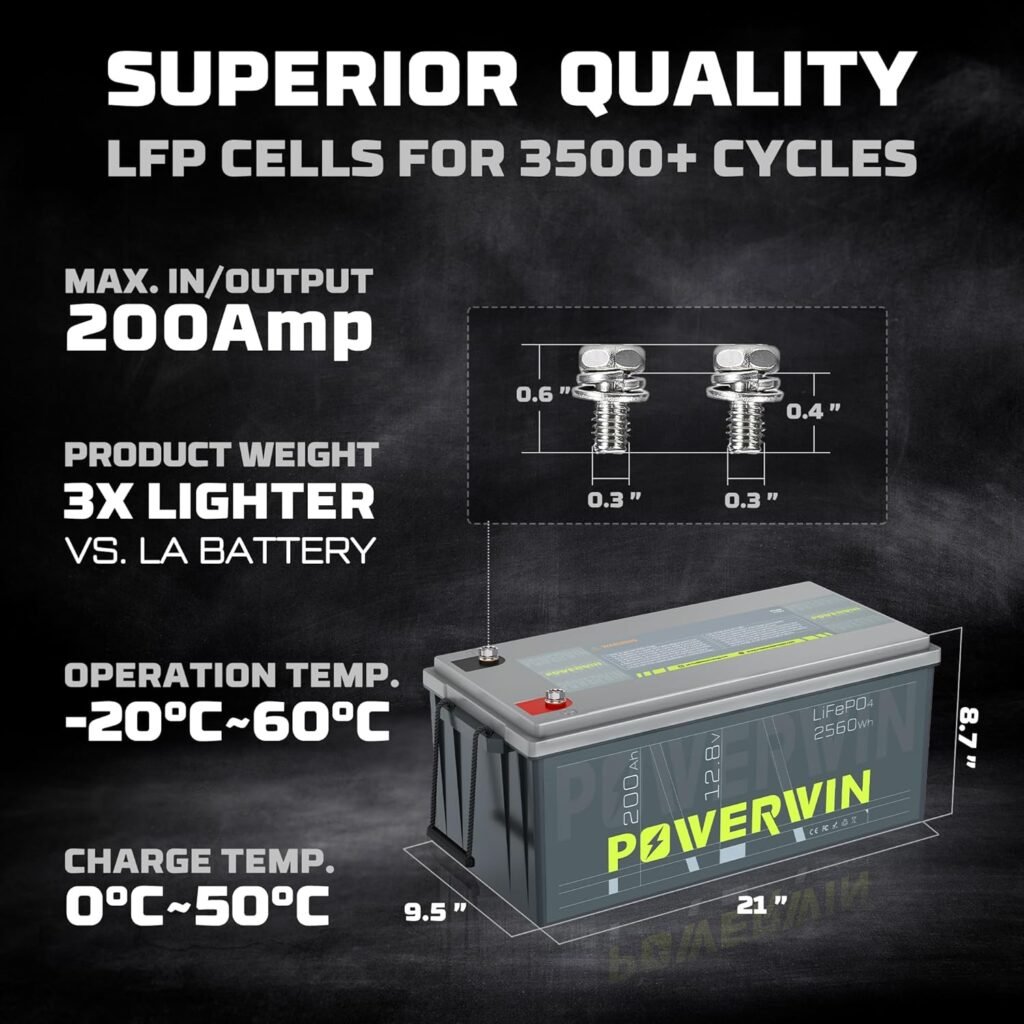

Build Quality and Design

Overall Construction and Form Factor

We immediately notice how compact and tidy the BT200 feels for a 200Ah battery. At around 45 pounds, it is significantly easier to move than a lead-acid battery with comparable capacity.

We appreciate this for two reasons: it saves our backs during installation, and it makes rearranging or upgrading a system much less of a chore. The casing feels solid and engineered for practical use in RVs, boats, and off-grid environments.

LiFePO4 Chemistry and Safety Benefits

The BT200 uses LiFePO4 (Lithium Iron Phosphate) chemistry. Compared to traditional lithium-ion and lead-acid, LiFePO4 stands out for thermal stability, safety, and longevity.

We value this chemistry because:

It is far more resistant to overheating.
It is less prone to thermal runaway or fire risk than many other lithium chemistries.
It tolerates frequent deep discharges much better than SLA/AGM.

In short, this is the chemistry we prefer for stationary storage, RV house batteries, and marine power—anywhere we need safe, dependable energy.

Battery Management System (BMS) and Safety

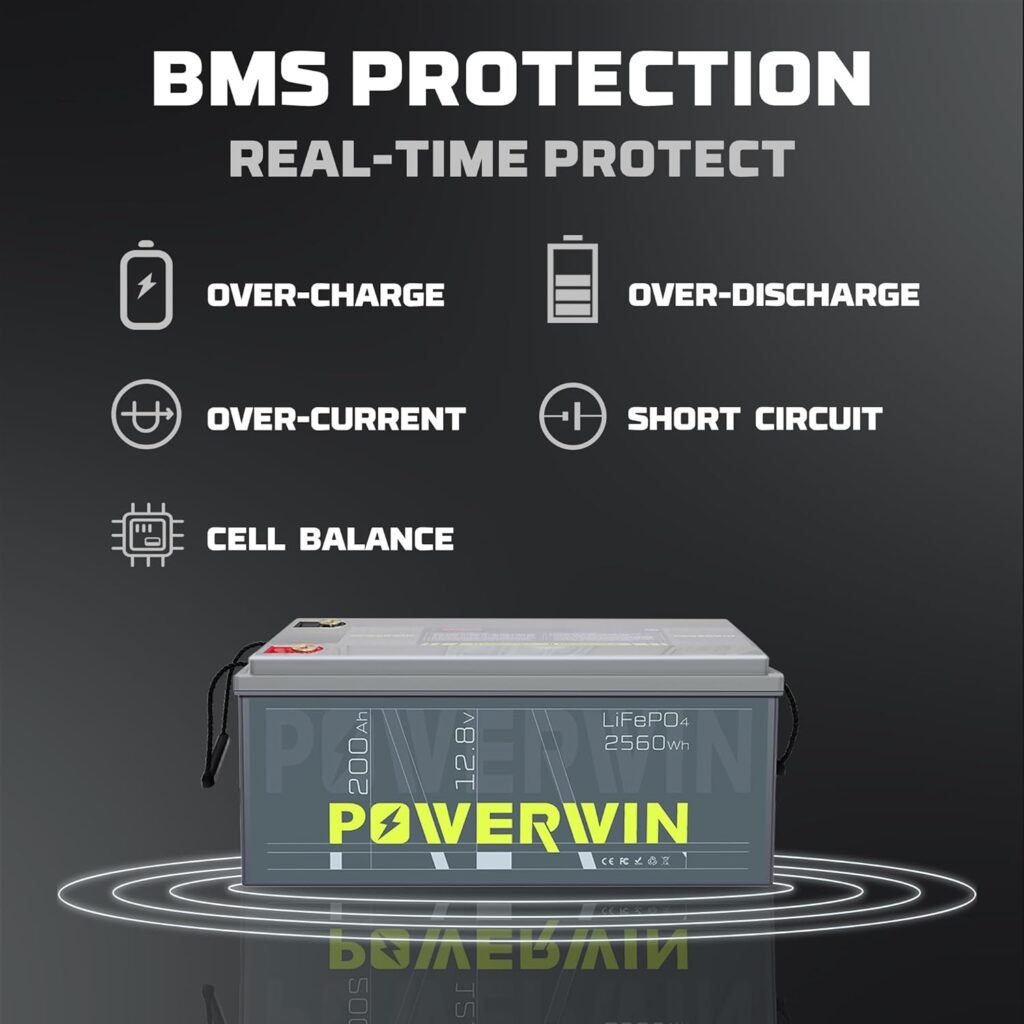

BMS Protection Features

The BT200 includes a 100A BMS (Battery Management System) that handles several key protections. This is the silent guardian inside the battery that keeps everything running safely.

It provides:

Overcharge protection – prevents damage from excessive voltage during charging.
Overdischarge protection – keeps us from draining the battery so low that it harms the cells.
Overcurrent protection – prevents damage from drawing more current than the system is designed for.
Overheating protection – safeguards against unsafe temperatures during charge/discharge.
Short-circuit protection – instantly reacts if there is a serious wiring or device failure.

We rely on this because it turns a pack of lithium cells into a practical, usable system that can endure real-world conditions without constant monitoring.

What 100A BMS Means for Real-World Loads

A 100A BMS on a 12V system means we have up to about 1,200W continuous power draw (since 12V × 100A ≈ 1,200W).

That gives us enough power for:

Running RV appliances (fridge, lights, pumps, TV, etc.)
Moderate inverters (typically up to around 1000W continuous comfortably)
Smaller trolling motors (depending on current draw)
Home backup for low to moderate loads (lights, electronics, routers, small tools)

If we want to run large inverters (like 2000W–3000W), we would ideally run multiple BT200 batteries in parallel to spread the current and stay under the 100A limit per battery.

Capacity, Energy, and Real-World Runtime

200Ah and 2560Wh: What That Means for Us

The battery is rated at 12V 200Ah, which works out to 2560Wh of energy. For planning purposes, that energy can be translated into how long it can support different loads.

Here are some simple examples (assuming close to full usable capacity):

A 100W load (like some lights + a router) → around 25 hours.
A 300W load (small fridge + fans) → around 8 hours.
A 600W load (small inverter running multiple devices) → around 4 hours.

We do factor in that some inverters and wiring have efficiency losses, so real-world runtime is slightly lower, but this gives us a good ballpark.

Depth of Discharge and Cycle Life

One of the strongest points of the BT200 is its claimed 4,000–15,000 cycles, depending on depth of discharge (DOD). That range significantly affects long-term value.

Here is how that breaks down:

Depth of Discharge	Approximate Cycles	Approximate Years (1 cycle/day)
100% DOD	~4,000	~11 years
80% DOD	~6,000	~16 years
60% DOD	~15,000	~41 years

Of course, few of us will use a battery every single day for decades, but this highlights how overbuilt LiFePO4 can be for typical use cases.

We like to operate around 70–80% DOD for a balance of runtime and maximum longevity. In that range, the BT200 still provides strong usable capacity while potentially lasting well over a decade in normal use.

Scalability and System Design Options

Series Connections: Higher Voltage Systems

The BT200 can be connected up to 4 in series. That means:

2 in series → ~24V system
3 in series → ~36V system
4 in series → ~48V system

For us, this capabilities opens doors to more efficient systems. Higher voltage systems reduce current for the same power, which in turn reduces wiring losses and allows for smaller cables.

We find 24V or 48V configurations appealing for:

Larger off-grid solar setups
Home energy storage
Some higher-voltage trolling motor or marine setups
Running larger inverters more efficiently

Parallel Connections: More Capacity and Current

The BT200 also supports up to 4 in parallel simultaneously, or up to 8 in parallel individually (depending on how the system is arranged). Parallel connections keep the voltage the same while increasing total capacity and available current.

In practice, this means:

2 batteries in parallel → 12V, 400Ah
4 batteries in parallel → 12V, 800Ah
8 batteries in parallel → 12V, 1600Ah

We find this useful in systems where we are committed to 12V but need a lot more runtime and more total amperage to feed inverters, DC devices, or trolling motors.

Combining Series and Parallel: Larger Banks

Because the BT200 can manage up to 4 in series and 4 in parallel simultaneously, we can build substantial banks. For example:

4 in series, 2 banks in parallel (4S2P) → a 48V, 400Ah system
4 in series, 4 banks in parallel (4S4P) → a 48V, 800Ah system

We like these configurations for serious off-grid cabins or whole-home backup where solar and battery storage handle a significant portion of daily power needs.

Weight and Portability

How 45 Pounds Changes the Game

The BT200 weighs around 45 pounds, and that matters more than we might expect. Many 200Ah SLA (sealed lead-acid) batteries can weigh 120–130 pounds or more. Lugging those around is no fun.

By contrast, these are:

Roughly one-third the weight of comparable SLA batteries.
About 24% lighter than many 12V 200Ah LiFePO4 competitors.

For us, that means easier installation in:

RVs (sliding into tight storage bays or under seats)
Boats (hauling from dock to ship or moving through narrow spaces)
Remote off-grid sites (where we may have to carry everything ourselves)

We appreciate that this weight reduction does not compromise capacity or performance—it simply makes building and maintaining our system more manageable.

Applications and Use Cases

For Solar and Off-Grid Systems

This battery feels particularly well-suited for solar and off-grid environments. Paired with a compatible solar charge controller, the BT200 can handle daily cycling, deep discharges, and long service life.

We use it for:

Off-grid tiny homes and cabins
Sheds or workshops that need independent power
Remote monitoring stations or telecom setups
Backup power for internet, routers, and critical electronics

The combination of long cycle life and LiFePO4 safety gives us confidence to leave it in service for long stretches without constant checking.

For RV and Van Life

RVs and camper vans benefit hugely from LiFePO4, and the BT200 fits that need nicely. The 200Ah capacity, combined with the 100A BMS, supports:

DC loads: lights, water pumps, fans, USB charging ports
Inverters for AC loads: laptops, TVs, kitchen appliances (within reasonable wattage)
Solar panels for recharging during the day

We like that a pair or more of these batteries can form a robust 12V system that keeps us powered for extended off-grid stays. The reduced weight is especially helpful when we are mindful of axle limits and payload capacity.

For Marine and Trolling Motor Use

Marine use demands both reliability and resilience, and this battery’s protection features and LiFePO4 chemistry align well with that. It is a natural fit for:

House battery banks on boats
Powering trolling motors (within current and voltage limits)
Running fish finders, lights, navigation systems, and radios

We pay attention to the current draw of specific trolling motors to ensure we don’t exceed the 100A BMS limits per battery, or we design a multi-battery system if necessary.

For Home Energy Storage and Backup

As home energy storage becomes more popular, the BT200 stands out as a modular building block. With multiple units, we can power:

Essential circuits: lights, fridge, internet, medical equipment
Partial or full-home backup, depending on system size
Solar-plus-storage setups to reduce grid dependence

We like that we can start with a small bank (one or two batteries) and then expand as needs and budget grow, thanks to the scalable nature of series and parallel options.

Charging, Compatibility, and System Integration

Charging Requirements

LiFePO4 batteries have different charging profiles than SLA, and we always want to match the charger to the chemistry. For the BT200, we recommend:

Using a LiFePO4-compatible charger or solar charge controller.
Making sure voltage settings match the manufacturer’s recommended charge and float voltages.
Avoiding generic “lead-acid only” chargers that cannot be adjusted for lithium.

By setting charging correctly, we ensure maximum lifespan and consistent performance. We also appreciate that LiFePO4 batteries typically recharge faster than lead-acid when paired with appropriate chargers.

Using With Inverters and Solar Controllers

Most modern inverters and MPPT charge controllers can be configured to work with LiFePO4. We just need to:

Match system voltage (12V, 24V, 48V depending on configuration).
Observe current limits and cable sizing.
Adjust bulk/absorption/float voltages as recommended.

We like to choose inverters with low idle power draw for battery-based systems, because even a few dozen watts of standby consumption can add up over many hours.

Performance and Day-to-Day Usage

Stable Voltage and Usable Capacity

One of the most noticeable changes when shifting from SLA to LiFePO4 like the BT200 is how stable the voltage is during discharge. While SLA batteries sag significantly under load and as they discharge, LiFePO4 holds voltage much more consistently.

We feel this in daily use:

Appliances run more consistently.
Inverters are less likely to complain about low voltage.
We can use a higher portion of the battery’s capacity without the system feeling “weak.”

In practice, this means that the usable capacity of a 200Ah LiFePO4 bank often feels significantly greater than a 200Ah SLA bank at the same nominal rating.

Temperature Considerations

While LiFePO4 is safe and stable, it does have some sensitivity to temperature, especially during charging.

We keep in mind:

Charging at very low temperatures (around freezing or below) should be carefully controlled or avoided unless the battery has a low-temperature cut-off or internal heating.
Discharging in cold conditions is generally less of an issue, but performance can be reduced.
High temperatures reduce lifespan over time, so we prefer cool, ventilated spaces for installation.

We recommend checking whether the particular BT200 configuration includes low-temperature charging protection, and we always design the environment with temperature in mind.

Advantages Over Traditional Lead-Acid Batteries

Longer Service Life

Compared with SLA/AGM batteries that may only provide 300–500 cycles at deeper discharges, the BT200’s 4,000–15,000 cycle range is a big leap.

We effectively gain:

8–10 times longer cycle life in many scenarios
Lower cost per cycle over the lifetime of the battery
Less frequent replacements, which also reduces labor and downtime

Over years of ownership, we see this as the main argument for LiFePO4—higher upfront cost, but dramatically better long-term value.

Higher Usable Capacity

Lead-acid generally should not be routinely discharged below about 50% if we care about lifespan. LiFePO4, including the BT200, can comfortably use 80–100% of its capacity regularly.

In practice:

A “200Ah” SLA may only provide about 100Ah of regular usable capacity.
A 200Ah LiFePO4 like the BT200 can give us 160–200Ah of usable capacity.

We like this because it means we can design a smaller bank for the same usable runtime, saving space and weight.

Faster Charging and Lower Self-Discharge

LiFePO4 can accept higher charge rates (within reason) and exhibits very low self-discharge when not in use.

We benefit in ways such as:

Faster recovery from deep discharges when solar conditions improve or when we plug in a charger.
Less energy wasted sitting idle across weeks or months.
Fewer worries during seasonal use, such as RVs or boats that sit unused for part of the year.

Who This Battery Is Best Suited For

Ideal Users and Setups

We see the BT200 as a particularly good match for:

Off-grid enthusiasts who need dependable daily cycling.
RV and van life travelers who want to run appliances without shore power.
Boat owners using trolling motors and house loads.
Homeowners building or upgrading a small to mid-size battery bank for backup or solar storage.
DIY system builders who want room to expand over time.

For all these users, the blend of safety, scalability, weight savings, and long cycle life makes the BT200 a compelling centerpiece for their power system.

Who Might Need Something Different

There are some situations where we might consider an alternative or at least a different configuration:

Very high-current applications that exceed 100A per battery continuously may require larger BMS ratings or more batteries in parallel.
Extremely cold environments might need batteries with built-in heating or special low-temperature charging features.
Ultra budget-limited setups might still opt for SLA, though long term that can cost more.

We weigh these considerations against our actual daily needs, not just peak numbers, to decide whether the BT200 is the right choice or part of a broader system.

Warranty, Support, and Brand Confidence

2-Year Warranty

The BT200 comes with a 2-year warranty, which provides an important layer of reassurance. While the theoretical cycle life extends far beyond two years, having a formal warranty helps us feel secure about early-life defects or issues.

We always register or keep proof of purchase, and we recommend reading the specific warranty terms for coverage conditions and limitations.

Dependable Support and After-Sales Service

The description highlights “always-ready support,” which we interpret as a commitment to answer questions and assist with troubleshooting. With batteries and power systems, support matters because:

Many users are building DIY or semi-DIY systems.
Integration issues often involve multiple components (chargers, inverters, solar controllers).
Good guidance can prevent expensive mistakes like misconfigured voltages or overloaded circuits.

We treat support availability and responsiveness as part of the product’s real-world value, especially for larger investments in energy storage.

Pros and Cons Summary

To keep things clear, we like to step back and summarize what stands out most.

Advantages

High Safety and Stability: LiFePO4 chemistry plus robust BMS protections.
Long Cycle Life: Up to 4,000–15,000 cycles depending on DOD.
Scalability: Supports up to 4 in series and multiple in parallel.
Lightweight: Around 45 pounds, much lighter than SLA equivalents.
Good Capacity: 200Ah / 2560Wh, with high usable percentage.
Versatile Applications: Solar, RV, marine, trolling motor, home storage.
Modern Performance: Low self-discharge, stable voltage, fast charging potential.

Potential Drawbacks

BMS Limit: 100A continuous may require multiple batteries in parallel for very high-power inverter loads.
Initial Cost: Higher upfront price than basic lead-acid (though better lifecycle value).
Temperature Sensitivity for Charging: Needs proper care or protection in very cold climates.

We see the pros significantly outweighing the cons for most modern off-grid or mobile applications, especially if we plan a system thoughtfully.

Practical Tips for Getting the Most from the BT200

Design the System Before Buying

We find it smart to plan:

Total watt-hours needed per day.
Maximum load (peak and continuous).
System voltage (12V, 24V, 48V).
Space and weight limits.
Charging sources (solar, alternator, shore power, generator).

Then we can calculate how many BT200 units we actually need and how they should be arranged in series and/or parallel.

Use Proper Cabling and Protection

To keep everything safe and efficient:

Use appropriately sized cables to handle maximum current safely.
Install fuses or breakers between the battery bank and inverter or loads.
Ensure tight, corrosion-resistant connections.

We also like to keep the layout neat and labeled. It makes troubleshooting and future upgrades much easier.

Operate in a Healthy DOD Range

Even though the BT200 can handle 100% DOD for thousands of cycles, we suggest:

Targeting around 70–80% DOD for everyday use when possible.
Avoiding unnecessary full discharges.
Configuring low-voltage cutoffs conservatively.

This helps squeeze even more longevity from an already long-lived battery.

Our Overall Assessment

After examining the specifications, design philosophy, and intended use cases of the BT200 12V 200Ah LiFePO4 Deep Cycle Battery – 100A BMS ，15,000 Cycles ，Solar, RV, Off-Grid & Marine ，Trolling Motor & Home Energy Storage (8PCS), we view it as a solid, modern power solution for a wide range of systems.

We appreciate:

Its combination of high safety, light weight, and strong capacity.
The ability to scale up from a single battery to large multi-unit banks.
The exceptionally long potential lifespan when used within recommended guidelines.

For us, this battery is not just a replacement for lead-acid; it is a fundamental upgrade in how we think about mobile and off-grid power. When integrated with a well-designed solar or charging system, it can anchor a dependable power setup for years to come.

If we are building or upgrading an RV, boat, off-grid cabin, or home battery bank and want a balance of performance, safety, and longevity, the BT200 stands out as a compelling option well worth serious consideration.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
