ECO-WORTHY 4.68KWH Solar Power Complete Kit review

Have we been searching for a home solar kit that actually feels complete, powerful, and not overly complicated to set up?

Table of Contents

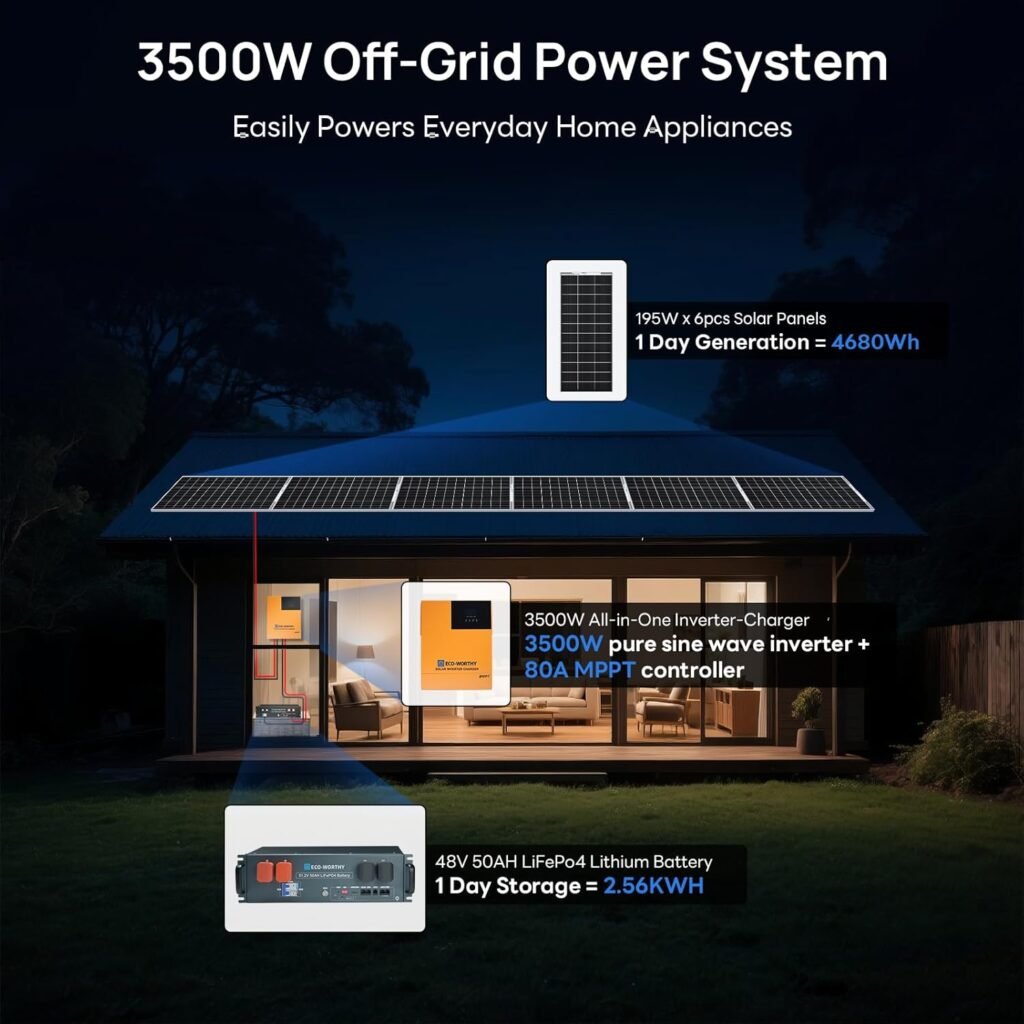

What This ECO-WORTHY Solar Power Complete Kit Really Is

When we look at the
ECO-WORTHY 4.68KWH Solar Power Complete Kit 1200W 48V with Lithium Battery and Inverter,
we are essentially looking at a ready-to-go off-grid power system for home use. It is designed to give us a reliable source of electricity using the sun, even if the grid goes down or we live in a remote area.

This kit bundles together solar panels, a lithium battery, a powerful inverter/charger, and the key accessories we need. That means we are not hunting for mismatched components or worrying about compatibility as much as we would with a DIY piecemeal build.

Key Components at a Glance

To understand what we can realistically power and how this system fits into our life, we need to get familiar with each main part. Everything in this kit works together to capture, store, and deliver energy to our home appliances.

Here is a quick breakdown of the core components:

Component	Quantity	Main Specs	Purpose
N-Type Bifacial Solar Panels	6 pcs	195W each, 25% efficiency, 18 busbars, 58.86″ x 26.18″ x 1.38″	Capture solar energy from the sun (and some from reflected light)
Lithium Battery	1 pc	48V, 50Ah, 2,560Wh, LiFePO₄, 100A BMS	Store energy for use day and night
Solar Charger Inverter	1 pc	3,500W, 48VDC to 110/120VAC, 7,000W surge, 80A MPPT, UPS mode	Convert DC power to AC, manage charging, and support backup power
Monitoring & Communication	Built-in	WiFi, Bluetooth app, RS485, CAN, RS232	Real-time system monitoring and control
Safety & Accessories	Included	63A breaker, battery cutoff switch, wiring, mounting hardware (varies)	Safe operation and installation support

This structure gives us a fairly complete backbone for an off-grid or backup home power solution. We still need to factor in installation and possibly some extra wiring or mounting adjustments, but the big, expensive pieces are included.

Daily Energy Output and What It Means for Our Home

The kit is rated to produce about 4.68 kWh per day in a location with roughly 4 hours of full sunlight. This number helps us understand what kind of lifestyle and loads we can support.

Understanding the 4.68 kWh/Day Claim

4.68 kWh per day is an estimate, not a promise. Real output depends on our:

Location and climate
Seasonal changes in sun hours
Panel orientation and tilt
Shading (trees, chimneys, nearby buildings)

But as a baseline, 4.68 kWh/day is a reasonable expectation for a 1,200W array in good conditions.

To put that into context:

A typical efficient refrigerator: ~1–1.5 kWh/day
A TV: ~0.1–0.3 kWh/hour depending on size
LED lighting: very little, maybe 0.2–0.5 kWh for a full evening
Laptop: ~0.05–0.1 kWh per charge
An efficient window AC (used moderately): 1–2 kWh/day or more, depending on runtime

So with 4.68 kWh/day, we can realistically cover essential loads in a small home, cabin, shed, or serve as a strong backup system for key circuits.

The N-Type Bifacial Solar Panels: Why They Matter

The kit includes six 195W N-type bifacial solar panels. These are not basic entry-level panels; they use newer tech to enhance efficiency and durability.

N-Type Cells and 18 Busbars

N-type solar cells have several advantages:

Better high-temperature performance: Less loss of output when the panels heat up in summer sun.
Higher efficiency: Up to around 25% conversion efficiency, which is impressive.
Improved long-term reliability: Typically less prone to certain types of degradation.

The panels also use 18 busbars, which helps:

Improve current collection and reduce resistance losses
Increase performance under partial shading or micro-cracks
Enhance overall efficiency and stability

Bifacial Design and Real-World Gains

Because the panels are bifacial, they can generate power from both the front and the back. We get extra energy from light reflecting off surfaces like:

Light-colored roofs
Concrete or gravel
Snow in winter
Ground with reflective material

The real gain varies, but under the right conditions we might see a noticeable bump in energy generation compared with standard monofacial panels. This helps us squeeze more out of the same footprint, which is especially nice when roof space is limited.

The 3,500W Solar Charger Inverter: The Heart of the System

The inverter in this kit is a big part of why it feels “complete.” It is more than just a simple inverter; it is a combined inverter, charger, and 80A MPPT solar controller.

Power Capacity and Surge Handling

With 3,500W continuous power and 7,000W surge, this inverter can comfortably handle:

Refrigerators and freezers
TVs, internet routers, laptops
Coffee makers and microwaves (within reason)
Lights, fans, and small tools

Surge capacity is particularly important for appliances with motors, like refrigerators or pumps, that draw a big spike of power when starting up.

48VDC to 110/120VAC Conversion

The system runs on a 48V DC battery bank, which is more efficient and stable for higher-power systems compared with 12V or 24V. Then it converts that DC power to 110/120V AC, the standard for most home devices in regions like North America.

Because it is a pure sine wave inverter (implied from its feature set and role), it should play nicely with sensitive electronics, minimizing buzzing, flickering, or extra heat in devices.

Built-In 80A MPPT Charge Controller

An important part of this inverter is the 80A MPPT (Maximum Power Point Tracking) charge controller. Rather than needing a separate box to manage solar charging, it is built in.

Why MPPT Is a Big Plus

MPPT technology helps us get the most out of our panels:

Tracks the optimal voltage and current point where panels produce maximum power
Adjusts dynamically as sunlight intensity shifts
Typically delivers 15–30% more usable energy than simple PWM controllers, especially in variable conditions

This is crucial when we want to make the most of a 1,200W array and get as close as possible to that 4.68 kWh/day estimate.

UPS Function and Backup Power Capability

The inverter offers UPS (Uninterruptible Power Supply) functionality with about 20ms switching time. That gives us a relatively seamless transition when the grid goes down, or when switching power sources.

What 20ms Switching Means for Daily Use

For most devices:

Computers with decent power supplies can ride through a 20ms interruption
Lights may flicker slightly, but usually nothing dramatic
Routers and modems often stay running without a reboot

This makes the system useful not just for off-grid cabins or sheds, but as a whole-home backup for key circuits. We can keep essentials running during outages without scrambling for a generator.

WiFi Monitoring and Control

Modern solar systems are no fun if we are blind to what is happening. This inverter includes WiFi monitoring and control, plus app support.

Why Monitoring Matters

With the app and wireless connectivity, we can:

See real-time power production from the panels
Check battery charge level and health
Track consumption and load
Adjust some inverter settings (depending on the app capabilities)
Diagnose issues faster if something is off

This makes it easier for us to tune our usage based on actual performance. For example, we can pick the best times to run heavier loads like microwaves or air conditioning based on solar production.

The 48V 50Ah Lithium Battery: Storage and Safety

The included battery is a 48V, 50Ah LiFePO₄ (Lithium Iron Phosphate) battery with about 2,560Wh (2.56 kWh) of usable capacity under typical conditions.

Capacity and Real-World Runtime

With 2.56 kWh of battery storage, we can do things like:

Run a refrigerator (1–1.5 kWh/day) for many hours
Keep lights, modem, router, and a laptop powered for a night
Cover a small home’s essential loads during shorter outages

In combination with 4.68 kWh/day of solar generation, this is enough for a modest off-grid setup or a reliable backup system. We just need to be realistic about heavy loads like large air conditioners or electric heaters, which can consume a lot of power quickly.

LiFePO₄ Chemistry Advantages

LiFePO₄ is one of the safest and longest-lasting lithium chemistries:

Long cycle life: Often several thousand cycles at typical depth of discharge
Thermal stability: Lower risk of combustion compared with some other lithium types
Flat discharge curve: More stable voltage throughout most of the discharge

The battery is equipped with 16 A-grade LiFePO₄ cells and is certified under UL9540A and UL1973, which relate to battery safety and system-level testing. This gives us more confidence in performance and safety.

Battery Management and Protection

The battery includes a 100A BMS (Battery Management System), a 63A breaker, and a cutoff switch.

What the BMS Does for Us

The BMS is like a built-in guardian for our battery:

Protects against overcharge and over-discharge
Manages cell balancing for even wear and performance
Guards against overcurrent and short circuits
Helps prevent overheating or charging in unsafe conditions

With 2C discharge support, the battery can safely deliver up to about 100A at 48V (roughly 4.8 kW) for short periods. This aligns well with the inverter’s power capabilities and surge behavior.

Expansion Options for Growing Our System

If we are thinking long-term, expansion is key. This kit does not lock us into one size.

Battery Expansion: Up to 76.8 kWh

The battery supports parallel connection of up to 32 units, giving a potential total of 76.8 kWh of storage. That is enough for:

Large homes aiming for serious off-grid capability
Extended outages in storm-prone regions
Properties with high energy needs, such as workshops or small farms

We might start with the included 2.56 kWh battery and then add more as our budget or energy needs grow.

Inverter Expansion: Up to 21 kW

The inverter supports parallel operation of up to 6 units, for a total of 21 kW. We can configure this for single-phase or three-phase systems, which is a big plus for:

Larger properties or small businesses
Equipment that needs three-phase power
Future-proofing our home system

We do not have to jump to the maximum right away; we can treat this as a building block in a bigger system.

What We Can Power with This Kit

The product description claims support for air conditioning, TV, refrigerator, coffee maker, microwave, and other AC 110/120V devices. This is generally realistic, within certain limits.

Examples of Possible Loads

Here is a rough idea of what we might run, assuming we manage usage carefully:

Refrigerator: Yes, typically without issue, as long as it is reasonably efficient
TV and electronics: Yes, these are usually modest loads
Coffee maker: Yes, it is a short, high-power burst (often 800–1,200W), which the inverter can handle
Microwave: Yes, but we should avoid running it at the same time as other heavy loads
Window AC: Yes, if it is efficient and we keep runtime reasonable; central AC may be more demanding
Lights and fans: Easily

We just need to pay attention to:

Total watts at any one time (stay within roughly 3,500W continuous)
Total energy in a day (around 4.68 kWh solar + 2.56 kWh battery usable, depending on sun and depth of discharge)

This system is excellent for essential loads, not for running everything in a large home simultaneously like a full-grid connection.

Where This Kit Fits Best: Use Cases

The ECO-WORTHY kit is versatile. Depending on how we use power, it can suit a variety of scenarios.

Off-Grid Cabins and Tiny Homes

For a small cabin or tiny home with efficient appliances and LED lighting, this kit could be our main energy source. It can:

Run a small fridge
Handle lights, phones, laptops
Support a TV and some cooking equipment

With careful energy budgeting, it provides a comfortable lifestyle without reliance on the grid.

Sheds, Garages, and Workshops

If we want to electrify a detached building, this kit gives us:

Lighting and outlets
Power for small tools and chargers
Office or studio equipment

We get independence from long trench runs and permits for grid extension in many cases.

Home Backup Power

In a standard home, the kit is very useful as a backup:

Keeps the fridge running during outages
Powers our internet, some lights, phones, and a TV
Runs a few comfort appliances or medical devices, depending on load

With careful planning of circuits and usage, we can ride out a grid failure much more comfortably.

Communication Interfaces: RS485, CAN, and RS232

Beyond WiFi and Bluetooth, the kit includes RS485, CAN, and RS232 interfaces on the battery and/or inverter.

Why These Ports Matter

These communication options are especially useful if:

We plan to integrate the system with advanced home automation or energy management
We want to connect it to third-party monitoring hardware or software
We are building a more complex, professionally managed off-grid setup

For many users, the app and WiFi will be enough. But knowing that the system is “communication-ready” makes it more appealing to advanced users and installers.

Installation Considerations

While the kit includes major components and accessories, we still need to think about the practical side of getting it up and running.

Mounting the Panels

The 6 panels are each about 58.86″ x 26.18″ x 1.38″, so they take up a modest amount of space. We need to:

Choose a roof or ground area with good sun exposure and minimal shading
Aim for a tilt angle suitable for our latitude and seasonal needs
Use proper racking and hardware (often included, but we may need extras depending on surface)

Because these are bifacial panels, ground mounts over a reflective surface can sometimes be especially effective.

Electrical Work and Safety

Even though this is a “kit,” many regions require a licensed electrician to:

Wire the inverter into our home’s electrical system
Set up transfer switches or critical load panels
Ensure everything meets local electrical codes and safety standards

The system involves high DC voltage and AC mains, which can be dangerous. Professional installation is strongly recommended for safety and code compliance.

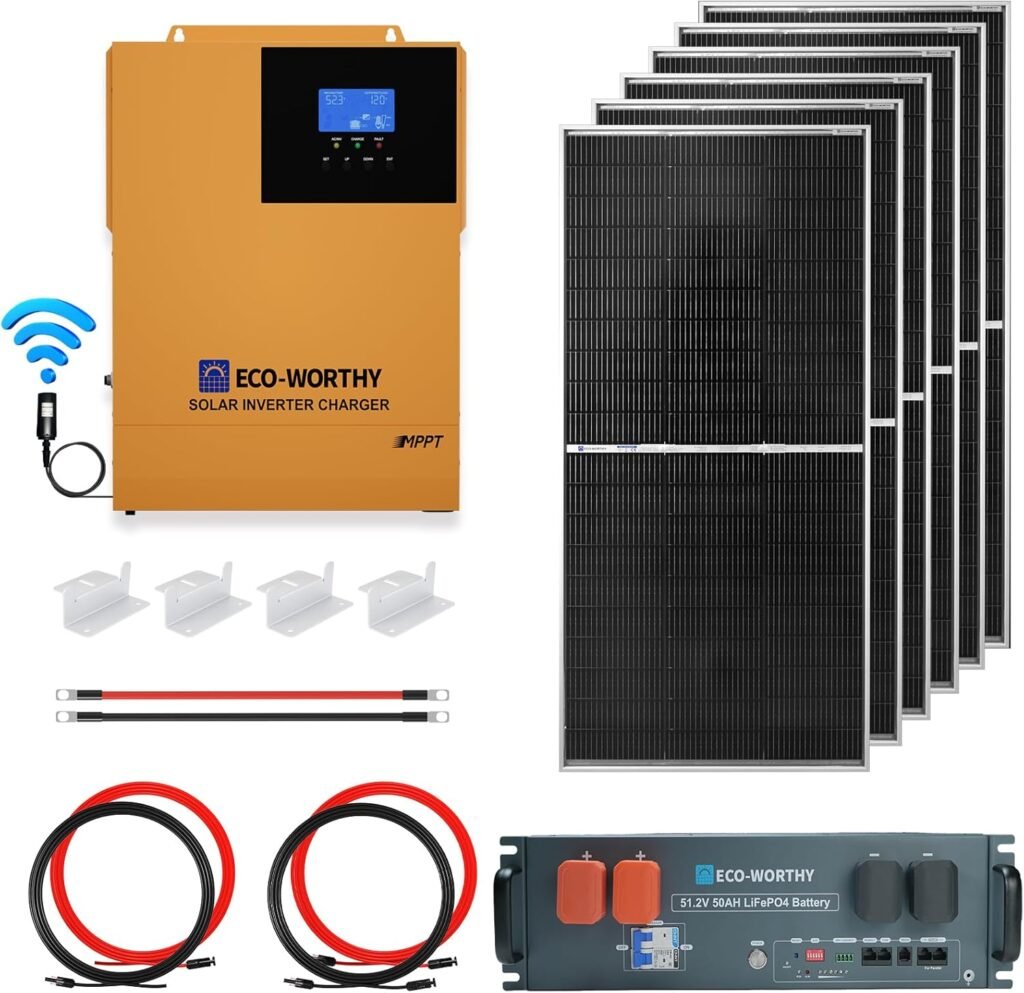

What We Actually Receive in the Box

The manufacturer notes that this product comes in multiple packages, which means our delivery will likely be split.

We should expect:

6 x 195W N-type bifacial solar panels
1 x 3,500W 48V solar charger inverter (with built-in 80A MPPT)
1 x 48V 50Ah LiFePO₄ battery
Various cables, breakers, cutoff switch, and mounting accessories (the exact list may vary slightly)

Because of multiple packages, we should carefully check each delivery to confirm we have the complete set before scheduling installation. Missing a single cable or bracket can delay everything.

Strengths of the ECO-WORTHY 4.68KWh Complete Kit

This kit has several standout strengths that make it attractive for many households.

1. Truly Integrated System

We are not just getting panels or just an inverter; we get a cohesive system with:

Panels
Battery
Inverter
MPPT controller
Protection and monitoring

This makes design and compatibility much simpler for us compared with sourcing each piece separately.

2. Modern, Efficient Technology

The use of:

N-type bifacial panels with 25% efficiency
LiFePO₄ battery with UL certifications
MPPT controller
WiFi and app monitoring
Expandable inverter and battery setups

puts the kit in a more advanced category than many basic starter solar packages.

3. Flexible Use: Off-Grid and Backup

We can use it:

As a main power system for smaller structures
As backup power for essential circuits in a home
As the base for a growing off-grid setup

The UPS function and relatively quick switching make it especially handy for regions with unstable grid power.

Potential Limitations and Things to Keep in Mind

No system is perfect, and this kit is no exception. It is important to understand what it is not, so our expectations stay realistic.

1. Not a Whole-House Solution for Heavy Loads

A 3,500W inverter and 4.68 kWh/day of solar generation is not meant for:

Running large central air systems for long periods
Heavy electric heating (baseboard heaters, big electric water heaters)
All major appliances at once in a large home

We can absolutely cover essentials and some comfort loads, but we still need to think about energy efficiency and staggered use of high-draw devices.

2. Battery Capacity Is Modest at the Start

The included 2.56 kWh battery offers good flexibility, but for full off-grid living in larger homes, we would likely want more storage. Thankfully, expansion is possible, but that adds cost.

3. Installation Complexity

Even though it is a complete kit, we still face:

Mounting and wiring panels
Running conduit
Connecting to our home panel safely
Possibly dealing with permits and inspections

We should budget for professional help if we are not experienced with electrical work.

Who This Kit Is Best Suited For

When we put everything together, we can see the profiles of users who are most likely to benefit from this kit.

Ideal Users

Owners of cabins, tiny homes, or off-grid cottages who want a capable, modern solar solution in one package
Homeowners seeking a serious backup system for outages, focused on critical loads
DIY enthusiasts comfortable working with solar and electrical professionals to fine-tune a system
People planning to grow their system over time, thanks to expansion options for both batteries and inverters

Less Ideal Users

Households that expect to power a large, fully electrified home (including big AC, electric heating, and multiple large appliances) without making changes to usage habits
Users who want a simple plug-and-play portable power station without any installation

Tips for Getting the Most Out of the System

To maximize the value of this kit, we can adopt a few simple strategies.

Optimize Panel Placement

Aim for the best sun exposure through the year
Avoid shading from trees, chimneys, or other buildings
Consider reflective ground surfaces if using the bifacial panels in a ground mount

Use Energy-Efficient Appliances

Choose inverter fridges, LED lighting, and high-efficiency electronics
Avoid or limit resistive loads like electric space heaters if possible
Use fans and smart thermostats to reduce heavy air conditioning needs

Monitor and Adjust

Use the WiFi/app tools to learn when our system produces the most energy
Shift heavy loads to peak solar hours when possible
Keep an eye on battery state of charge to avoid unnecessary deep discharges

Overall Evaluation: Is This Kit Worth It for Us?

Putting everything together, this ECO-WORTHY kit offers a robust, forward-looking solution for small to medium power needs in homes, cabins, sheds, or as a backup system. The blend of bifacial N-type solar panels, LiFePO₄ battery, 3,500W inverter with MPPT, and modern monitoring tools makes it feel much more complete than many bare-bones solar packages.

We should choose this system if we:

Want a well-matched set of components that work together
Care about efficiency, safety certifications, and room for future expansion
Are aiming for reliable off-grid or backup power for essential loads

We might need to add more batteries or parallel inverters down the line if our energy needs grow, but as a starting point, this kit gives us a solid, capable backbone for a modern home power system that leans heavily on the sun instead of the grid.

If we are comfortable planning our loads intelligently and treating this as either a strong backup or a primary solution for a modest-energy lifestyle, this kit offers a friendly, realistic path into serious solar independence.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
