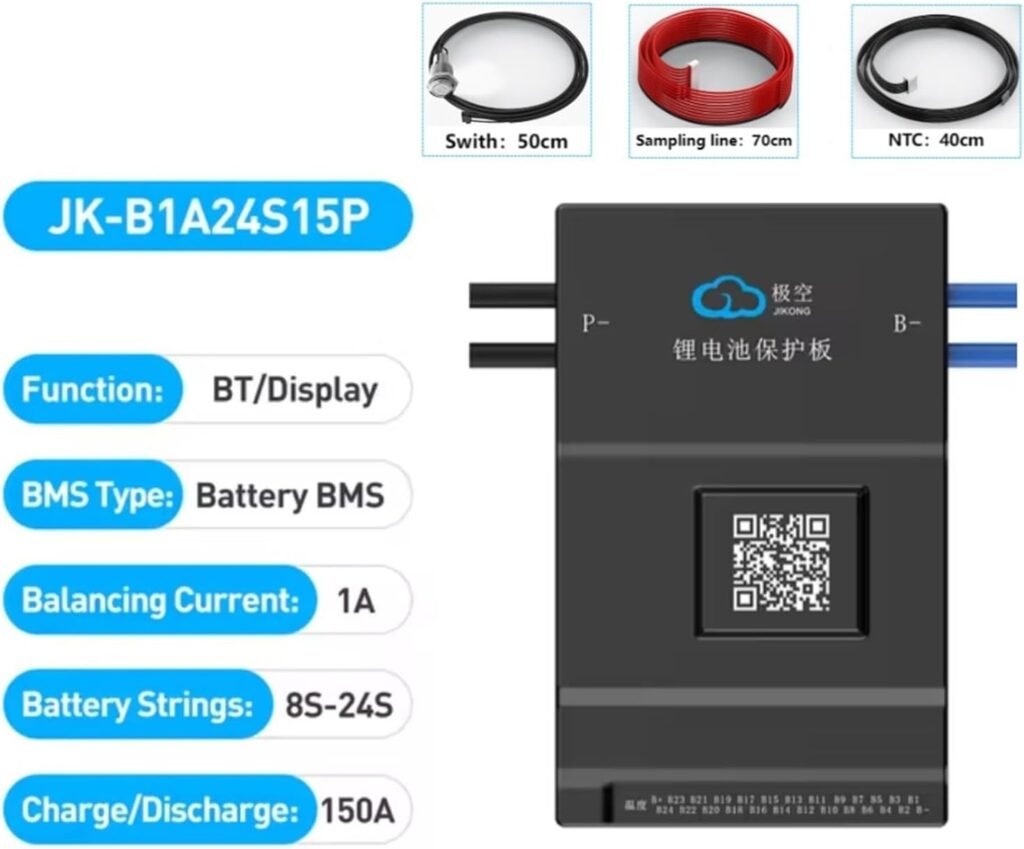

JK BMS Active Balance 24S (JK-B1A24S15P) review

Have we found the right smart BMS for our LiFePO4 and Li-ion battery projects?

Product Overview

We want to make clear what the JK BMS Active Balance BMS 8S 12S 13S 14S 16S 17S 20S 24S Smart BMS 60A 80A 100A 150A 200A 300A Lifepo4 Li-Ion Lto Battery (JK-B1A24S15P) brings to the table. We’ll summarize the main ideas: active balancing, smartphone connectivity via the JK app and BT, multiple series support, and a range of current ratings for DIY and professional systems.

We appreciate that this BMS targets a wide set of battery pack configurations and chemistries, and that it emphasizes active balancing to maximize usable capacity and extend cycle life. We’ll walk through features, specifications, installation, performance, troubleshooting, and our overall verdict so that we can decide whether it fits our application.

Key Features

We want a concise list of the features that matter most when evaluating a BMS, and this product offers several notable ones. We’ll highlight the features that are likely to influence our decision: active balancing, app control, multiple protections, and a variety of supported pack sizes and currents.

• Active balancing that claims to raise cell usage efficiency to 99% and prolong battery life.
• JK-developed smartphone app with Bluetooth communication for real-time monitoring and configuration.
• Full protection suite: over-charge, over-discharge, over-current, short circuit, and low temperature charging cutoff.
• Wide model range covering common pack sizes: 8S through 24S and current ratings from 60A to 300A.
• Supports LiFePO4, Li-ion, and LTO chemistries with active balance currents between 0.6A and 2A.

We find these features appealing for DIY systems, off-grid installations, e-bike conversions, RVs, and other applications where pack balancing and monitoring improve safety and longevity.

Specifications

We like to put technical specs in a single place for quick reference, so here’s a condensed specification table that maps the supported series, typical nominal voltages (for LiFePO4), current options, and the active balancing capability. These are approximate nominal voltages based on a 3.2V/cell LiFePO4 baseline and intended to be a practical reference rather than an absolute spec sheet.

Supported Series	Approx. Nominal Voltage (LiFePO4)	Max Current Options	Active Balance Current	Supported Chemistries	Connectivity
8S	~25.6 V	60A / 80A / 100A / 150A / 200A / 300A	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App
12S	~38.4 V	60A / 80A / 100A / 150A / 200A / 300A	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App
13S	~41.6 V	60A – 300A (model-dependent)	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App
14S	~44.8 V	60A – 300A (model-dependent)	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App
16S	~51.2 V	60A – 300A (model-dependent)	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App
17S	~54.4 V	60A – 300A (model-dependent)	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App
20S	~64.0 V	60A – 300A (model-dependent)	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App
24S	~76.8 V	60A – 300A (model-dependent)	0.6A – 2A	LiFePO4, Li-ion, LTO	Bluetooth + JK App

We note that exact current availability depends on the specific SKU; for instance, some pack counts will be offered primarily in certain current ratings. The example SKU shown in the product name (JK-B1A24S15P) suggests a 24S variant—likely paired to a particular current rating or design variant.

Active Balancing Technology

We care about balancing because uneven cell voltages limit usable capacity and shorten pack life, and this BMS advertises active balancing to address that. Active balancing transfers charge between cells rather than dissipating excess energy as heat, which is usually more efficient and better for long-term capacity retention.

We should note that active balancing current range (0.6–2A) means balancing is relatively fast compared to passive resistor-based balancing on many budget BMS units. For larger packs and high imbalance, balancing time will depend on how far apart cells are and whether the system is charged while balancing runs. Active balancing works best integrated with charging cycles—regular charging cycles will give the BMS chances to equalize cells to near 99% utilization.

JK App and Bluetooth Communication

We like on-phone monitoring because it keeps us informed about pack health without having to connect a laptop or meter. JK’s own app provides real-time display of cell voltages, pack voltage, temperature, state of charge (SOC) indicators, and fault logs, and it communicates via Bluetooth.

We appreciate that the app allows configuration of protection thresholds and parameters. That makes it easier for us to tune the BMS to specific chemistries (e.g., LiFePO4 vs. NMC), charge/discharge cutoffs, and current limits without changing hardware. The convenience is substantial for field adjustments and trouble diagnosis.

Protection Features (Full Functionality)

We prioritize safety, and the JK BMS includes a comprehensive set of protections intended to keep cells and wiring safe during normal use and fault conditions. The core protections cover over-charge, over-discharge, over-current, short circuit, and low temperature charging cutoff.

We also value that the system can alert us (via the app and by triggering protection relays) when thresholds are exceeded. This combination of automatic protective action and remote visibility lets us respond quickly to faults and helps prevent catastrophic failures.

Over-charge and Over-discharge Protection

We expect the BMS to prevent individual cells and the entire pack from exceeding safe voltage limits, and the JK BMS provides cell-level monitoring and cutoff logic. Over-charge protection stops charging when cells reach the configured maximum voltage, while over-discharge protection prevents further discharge when cell voltages drop too low.

We should configure the thresholds correctly based on our chosen chemistry; LiFePO4 requires lower max voltages and different cutoff points than typical NMC Li-ion cells. The app makes this configuration straightforward and accessible.

Over-current and Short Circuit Protection

We rely on the BMS to detect excessive currents and disconnect the pack quickly if necessary, and the JK BMS provides over-current and short-circuit protection to do that. These protections typically include both a soft disconnect for prolonged over-current conditions and a fast cutoff for short circuits.

We recommend verifying the response times and the trip current settings before field installation so that our external fuses and wiring are sized correctly to coordinate with the BMS protection behavior.

Low Temperature Charging Cutoff

We value battery longevity, and charging at low temperatures can cause lithium plating and permanent capacity loss. The JK BMS includes a low temperature charging cutoff to prevent charging if the pack temperature is below a safe threshold.

We should pair the BMS with a reliable temperature sensor placement near the cells so that the cutoff reflects actual cell temps. For cold-climate installations, we may consider battery heating or insulation strategies alongside the BMS to maintain usability.

Compatibility and Use Cases

We like versatile hardware, and this BMS covers a wide range of pack sizes and chemistries that match many hobbyist and professional applications. Common use cases include off-grid solar banks, RVs, electric boats, small EVs and e-bikes, UPS systems, and bespoke energy storage for commercial tools.

We’ll want to match the specific series (S count) and current rating to our application—smaller systems may be well served by 60A–100A units, while higher-demand systems and vehicles will need the 150A–300A options. The 0.6–2A active balancing suits most mid-sized packs; very large packs might need parallel balancing strategies or higher balance rates.

Recommended Applications

We see this BMS being especially suitable for DIY battery banks in homes and mobile platforms. It is a good fit when we combine multiple cells or modules into a pack and need reliable balancing to preserve usable capacity. The BT app also makes it suitable for installations where remote or periodic monitoring is desirable without additional hardware.

We should be cautious about using this BMS in very high-power traction applications where extreme short-circuit currents or regulatory certifications are required; in those cases, we’ll verify the model’s surge handling and consult supplier documentation for compliance.

Model Selection and Sizing

We want a simple approach to pick the right variant. Start by matching the series count (S) to the pack voltage, choosing a current rating above the expected continuous discharge current, and confirming the BMS supports the chosen chemistry. We’ll also consider peak currents and inrush events when selecting the max current rating.

We recommend selecting a BMS with a continuous current rating at least 20–30% above our expected continuous draw for margin and thermal headroom. For example, if our system will draw 120A continuous, a 150A-rated BMS is a safer choice than a 100A unit. Also ensure the active balance current and balancing behavior suit the expected imbalance scenarios for our cells.

Installation and Setup

We appreciate clear installation steps and will outline practical guidance so installation goes smoothly. The BMS must be mounted on a non-conductive surface, connected to cell taps in the correct order, wired for pack positive/negative, and integrated with contactors or relays as required. We’ll also verify polarity and torque on all fasteners to avoid bad connections.

We strongly recommend testing cell connections and verifying communication with the app before connecting loads or chargers. A step-by-step setup and verification process reduces the risk of wiring mistakes and gives us confidence in the pack’s performance.

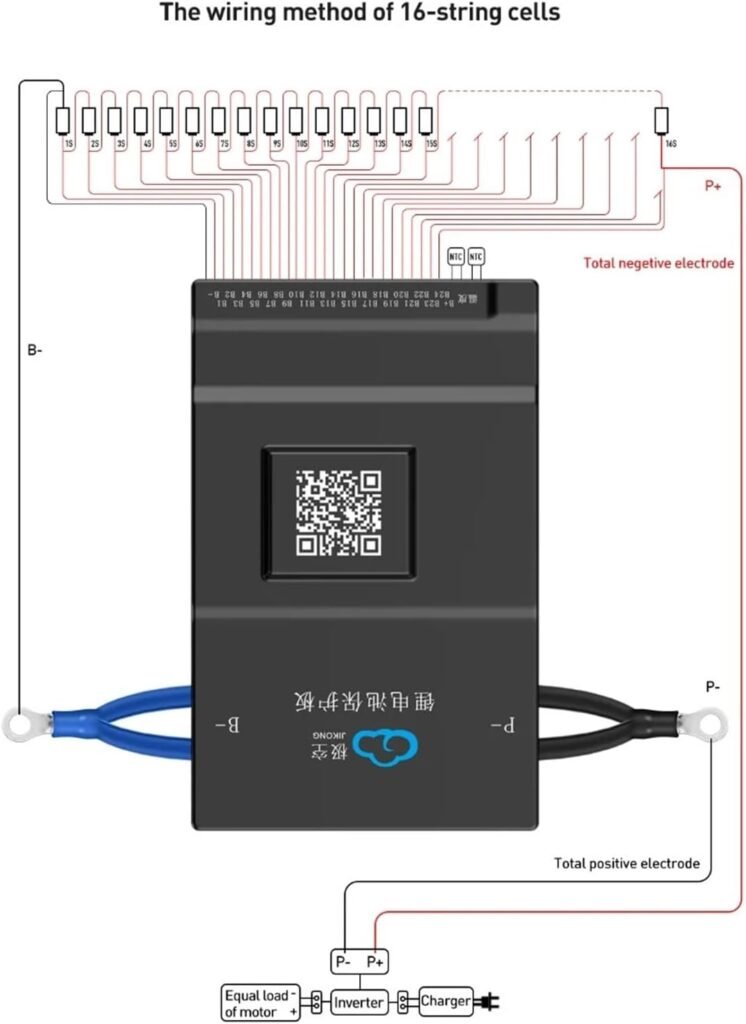

Basic Wiring Steps

We prefer to follow a systematic wiring plan, and here are the core steps: secure the BMS to the pack or enclosure, route and connect cell sense wires in the right series order, hook up pack positive and negative terminals, connect temperature sensor(s), and wire the BMS’s charge/discharge control outputs to contactors or MOSFETs as instructed.

We always double-check each sense wire with a multimeter to ensure correct order and continuity before powering the pack. Mis-wired sense leads can cause incorrect cell readings and improper protection behavior, so this verification step is essential.

Configuration via App

We enjoy the convenience of app-based configuration. After powering the BMS and pairing via Bluetooth, we can set per-cell protection voltages, timing for charge/discharge cutoffs, balance thresholds, and alarm behaviors all within the JK app.

We advise customizing the settings to our chemistry: for LiFePO4, set a conservative maximum cell voltage and appropriate low-voltage cutoff; for NMC, use higher charge voltage thresholds but ensure they’re within cell manufacturer specs. Save and document any non-default settings for future troubleshooting.

Performance and Efficiency

We look at performance through the lens of balance speed, power consumption, and protection responsiveness. Active balancing at up to 2A can significantly reduce long-term imbalance effects and increase usable capacity—JK claims up to 99% voltage alignment, which, if achievable in practice, means fewer capacity losses due to weak cells.

We should expect the BMS to introduce minimal parasitic consumption when idle, but actual power draw depends on the balance circuits and Bluetooth module. The efficiency advantage of active balancing is that it moves charge between cells rather than burning it off; as a result, the pack retains more energy for usable output.

Real-world Balancing Expectations

We recommend treating the 99% efficiency claim as an ideal target that depends on initial cell mismatches, cell condition, and how often the pack is charged. Severe imbalance or aging cells will still limit overall pack capacity and may require manual reconditioning or cell-level replacement to fully restore balance.

We advise running the pack through a few charge cycles while monitoring with the JK app to confirm how quickly the active balancing equalizes cell voltages and whether additional action (cell replacement, capacity testing) is required.

Pros and Cons

We find it helpful to list the strong points and the trade-offs so we can weigh them against our priorities.

Pros:

• Active balancing increases usable capacity and helps prolong cell life.
• Smartphone app with Bluetooth offers convenient real-time monitoring and configuration.
• Broad range of supported series and current ratings fits many DIY and commercial applications.
• Comprehensive protection suite improves safety and fault visibility.
• Support for multiple chemistries (LiFePO4, Li-ion, LTO) increases versatility.

Cons:

• Active balance current (0.6–2A) may be slow for very large imbalances in huge packs.
• App and firmware support quality depends on updates and manufacturer responsiveness.
• For high-regulation or certified commercial applications, additional certification details may be required.
• Installation requires careful wiring and configuration—mistakes can cause incorrect behavior.

We think the advantages outweigh the downsides for most hobbyist and small commercial projects, but for critical or certified applications we would seek additional documentation and possibly tested alternatives.

Comparison with Passive BMSs and Other Brands

We like to compare before we commit. Passive (resistive) balancers typically dissipate excess cell energy as heat and operate only when the pack is being charged; active balancing is more efficient in most cases and can function over a wider range of states. Compared to many basic BMS units, this JK model’s active balancing and app integration give it a stronger feature set.

We should weigh brand reputation, post-sales support, and firmware update cadence when comparing; some established brands provide robust toolchains and documentation that are important for scale projects. The JK BMS appears feature-rich but we recommend checking user reviews, firmware update history, and supplier support channels for the specific SKU we plan to buy.

Installation Best Practices

We prefer to follow a checklist during installation to reduce risks. Use appropriately sized wiring and connectors, properly route and secure sense wires, place temperature sensors close to cells, and use a reliable contactor or relay for charge/discharge control. Also, isolate the BMS and wiring from mechanical vibration and potential shorts.

We suggest performing an initial checkout procedure: verify sense wiring order and continuity, check open-circuit per-cell voltages with a DVM, pair the BMS with the app, review config settings, and perform a controlled charge with a current-limited source to observe balancing and protection behaviors. Documenting this gives us a baseline for future troubleshooting.

Troubleshooting and Common Issues

We like to be ready for the most common problems: incorrect sense wiring, communication/connectivity issues, unexpected cutoffs, and lingering cell imbalance. Each of these has a set of typical checks and fixes we can follow.

• Incorrect sense wiring: Confirm wiring order and continuity; a miswired sense lead can show cells in the wrong order.
• Bluetooth pairing failures: Ensure the app and firmware are up-to-date, the device is within Bluetooth range, and power cycles if needed.
• Unexpected triggers of protection: Check thresholds in the app, confirm actual cell voltages match the app readings, and verify wiring and contactor behavior.
• Slow balancing: If balancing is slow, determine the magnitude of mismatch and check whether the active balance current is sufficient; consider cycling the pack under supervision.

We recommend documenting all errors and app logs so vendor support can help more effectively if needed.

Firmware and App Updates

We appreciate ongoing software support because app improvements and firmware updates can fix bugs and add features. Check for updates via the JK app and follow manufacturer instructions for firmware upgrades to avoid bricking the unit.

We advise performing firmware updates only when the pack is in a safe state and when we have local support materials—always follow the recommended update steps and avoid interruptions during the flash process.

Maintenance and Long-Term Care

We treat a BMS as a safety-critical component that benefits from regular checks. Periodically inspect connections for corrosion or looseness, verify that cell voltages remain balanced over multiple cycles, and monitor the app logs for recurring warnings or anomalies.

We’d schedule a quarterly or semi-annual review depending on usage intensity: confirm sense wire integrity, check the temperature sensor placement, and ensure contactors or MOSFETs operate as intended. Proactive maintenance reduces the chance of unexpected failures.

Practical Tips for Maximizing Battery Life

We want practical steps to make our battery packs last, and the BMS is central to that. Keep charging protocols within manufacturer specs, avoid deep discharges where possible, maintain moderate temperatures during charge/discharge, and let the active balancer do its job by charging to the configured maximum regularly.

We also recommend matching cells by capacity and age before assembly so the BMS has less mismatch to correct. If cells are very mismatched, active balancing can help but replacing outlier cells may be the better long-term choice.

Price and Value Considerations

We often balance price against features, and this JK BMS presents strong value if active balancing and app monitoring matter to us. Compared to simpler passive BMS units, the added active balance circuitry and Bluetooth control justify a higher cost for many applications.

We advise factoring in not just the purchase price but also installation complexity, possible need for contactors/fuses, and the cost of potential upgrades or replacements in the future. For critical applications, consider warranty and vendor support as part of total cost of ownership.

Our Verdict

We find the JK BMS Active Balance BMS (JK-B1A24S15P and related series) to be a compelling option for DIYers, off-grid builders, and anyone who values active balancing and smartphone monitoring. The BMS’s broad series support, multiple current options, and full protection suite make it versatile and practical for many battery projects.

We recommend this BMS when active balancing and remote monitoring are priorities and when the user is comfortable performing careful wiring and configuration. For large commercial or certified installations, we advise confirming regulatory and surge-handling requirements with the supplier and considering professional-grade solutions if necessary.

Final Recommendations

We propose the following checklist before purchase and installation:

• Confirm the exact series count (S) and current rating needed for our pack and loads.
• Verify chemistry settings in the app match our cell chemistry (LiFePO4 vs. NMC vs. LTO).
• Ensure we have a contactor or appropriately rated switching device for charge/discharge control.
• Prepare tools for careful wiring: quality crimpers, torque driver for terminal screws, and a good multimeter.
• Test and verify the BMS with the JK app before placing the pack into service.

We feel that following these recommendations will help maximize the chances of a successful installation and long-lasting battery performance.
