? Are we ready to see whether the Jk BMS Active Balance Smart BMS 8S 12S 13S 14S 16S 17S 20S 24S 60A 80A 100A 150A 200A 600A BMS Li-Ion Lto Lifepo4 Battery BMS Battery Equalizer(B2A20S20P) is the right choice for our battery system?

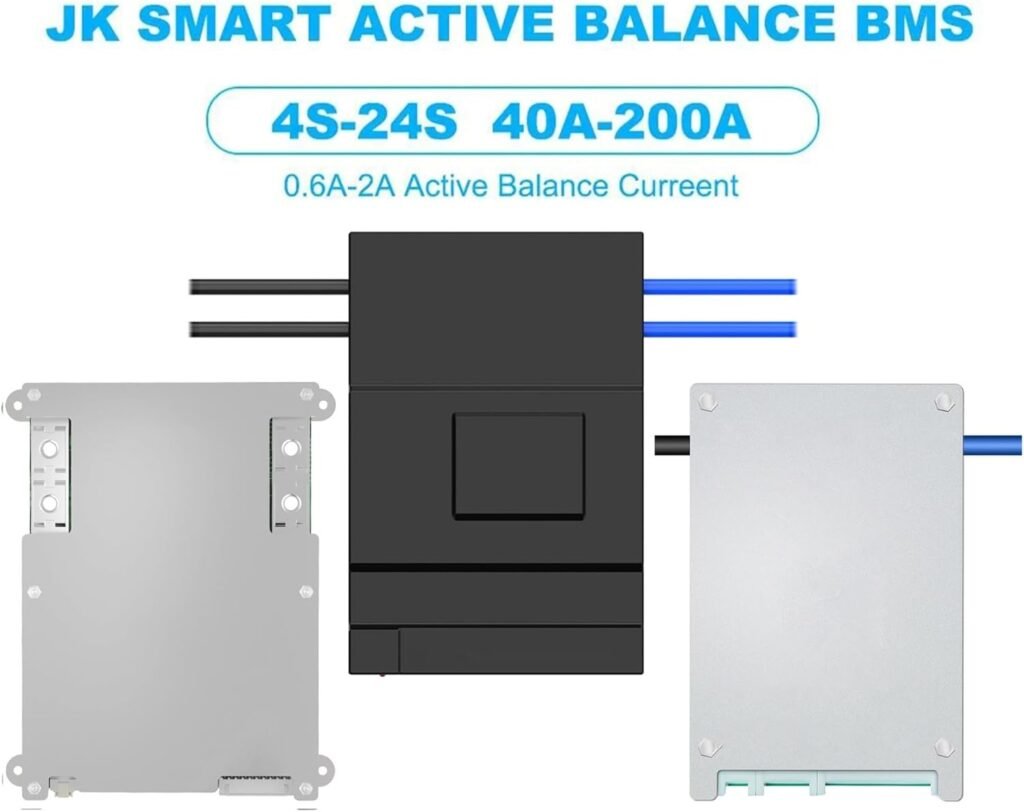

Product Overview
We want a clear snapshot of what this product is and what it promises. The Jk BMS Active Balance Smart BMS is a battery management system designed to actively balance cells, provide comprehensive protection functions, and offer mobile app control via Bluetooth. It supports multiple series counts and a range of current ratings, aiming to serve DIYers and system integrators working with Li-ion, LTO, and LiFePO4 chemistries.
What the product aims to do
We see that the main selling points are active balancing, an accompanying app, and a full set of protection features. The overall goal is to improve battery longevity, safety, and system performance by actively correcting cell voltage differences and providing real-time status monitoring.
Key Features Summary
We like to summarize main capabilities so we can quickly assess fit for our project. The BMS offers JK’s proprietary app, active balancing up to 0.6–2A, protections for over-charge/discharge/current and short circuits, and support for many series configurations and currents.
App and Communication
We expect modern BMS units to provide remote monitoring. This model has JK’s own app and Bluetooth communication, enabling us to see real-time battery parameters on our phones and to change settings when needed. That convenience is valuable for system tuning and troubleshooting.
Active Balancing
We appreciate active balancing because it equalizes cells by transferring charge between cells rather than dissipating excess energy as heat. JK’s active balance aims to raise usable capacity efficiency to 99% and extend battery life by keeping cell voltages closely matched. For multi-cell packs, this can mean longer cycle life and better performance under load.
Protection Suite
We want our battery pack protected. This BMS includes over-charge, over-discharge, over-current, short circuit protection, and low-temperature charging cutoff. These protections are essential to prevent damage, reduce fire risk, and ensure reliable operation over time.
Compatibility and Use Cases
We like flexible products. This BMS supports typical system voltages like 12V, 24V, 48V, 72V and a range of series counts (4S to 24S) and currents (100A–350A for some configs; model naming indicates up to 600A for certain versions). It is suitable for DIY energy storage, e-bikes, solar battery banks, and other custom battery systems using Li-ion, LTO, or LiFePO4 cells.
Technical Specifications Table
We prefer a clear technical breakdown so we can compare quickly. This table summarizes key specs and ranges as provided.
| Specification | Details |
|---|---|
| Product Name | Jk BMS Active Balance Smart BMS 8S 12S 13S 14S 16S 17S 20S 24S 60A 80A 100A 150A 200A 600A BMS Li-Ion Lto Lifepo4 Battery BMS Battery Equalizer(B2A20S20P) |
| Supported Cell Counts (S) | 4S to 24S (specific models for 8S, 12S, 13S, 14S, 16S, 17S, 20S, 24S, etc.) |
| Supported Chemistries | Li-ion, LTO, LiFePO4 |
| Active Balance Current | 0.6A – 2A (typical range depending on model) |
| App & Communication | JK proprietary APP with Bluetooth |
| Protection Features | Over-charge, over-discharge, over-current, short circuit, low-temperature charging cutoff |
| Current Ratings | Models available from 60A to 600A (common: 60A, 80A, 100A, 150A, 200A, 600A) |
| Use Cases | 12V/4S, 24V/8S, 48V/16S, 72V/24S systems, DIY battery banks, e-mobility, solar storage |
| Balance Method | Active balancing (charge redistribution) |
| Additional Notes | JK-developed APP for BMS settings and real-time monitoring |
Design and Build Quality
We care about durability and ease of integration. The unit has a compact form factor typical for BMS boards and includes terminals for cell sensing and main power connections. The build quality appears targeted at DIY and small commercial projects rather than heavy industrial deployments.

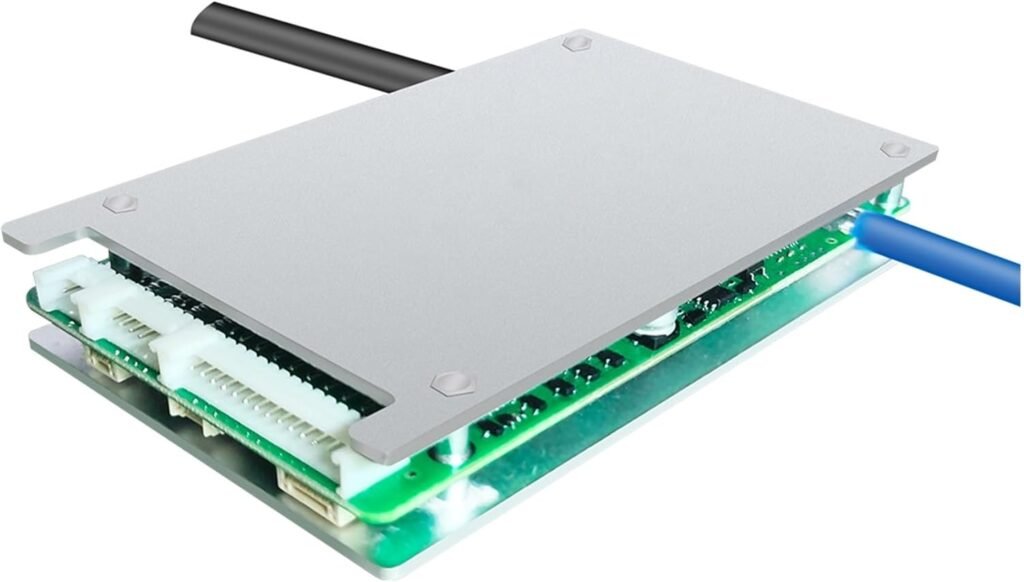

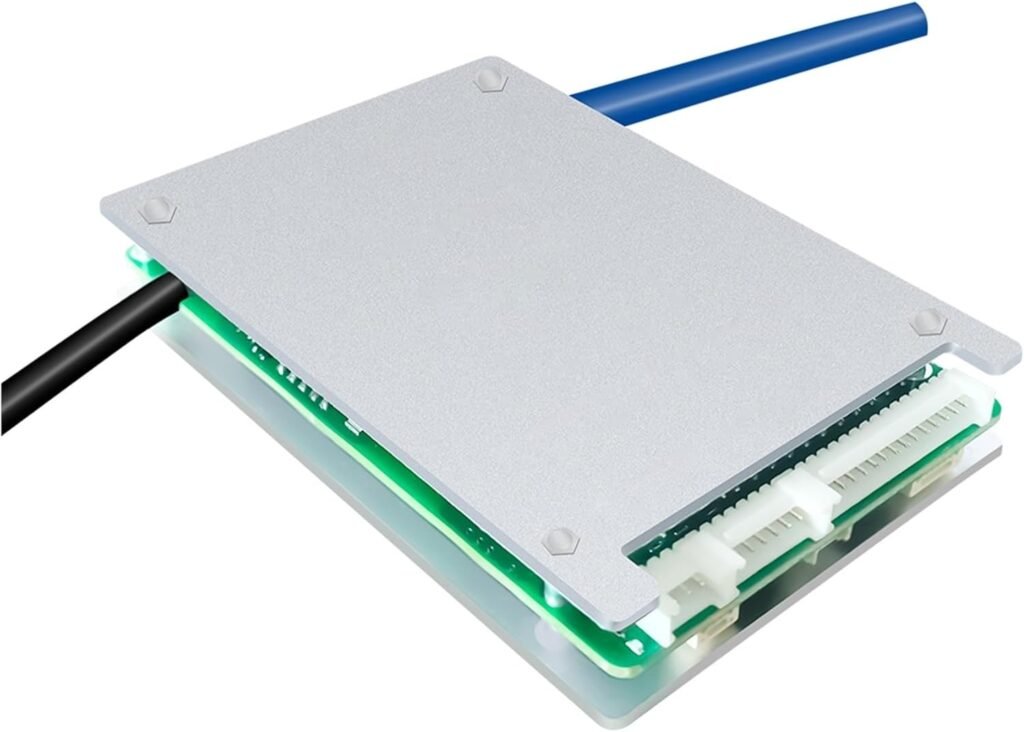

Physical layout and connectors
We found the connections to be laid out in a standard format for multi-series BMS boards, with clear busbar and sense wire points. Proper wiring and secure terminals are important because poor contact leads to inaccurate readings and potential failures, so we recommend taking care during installation.
Materials and durability
The PCB and components look solid for the intended use. We like that JK has focused on safety features and protective functionality, and the hardware seems to match that focus. For harsh environments, we suggest adding enclosures or conformal coatings as needed.
Installation and Setup
We prefer step-by-step guidance and clarity for setup. Installing a BMS requires careful attention to wiring order, sense leads, and safety precautions. We’ll outline the usual steps and point out common pitfalls.
Pre-installation checks
We always verify cell voltages, pack wiring, and polarity before connecting the BMS. Ensuring the pack is within safe voltage ranges and that cells are connected in the correct series order prevents immediate faults or damage to the BMS.
Wiring sequence and tips
We advise connecting the pack negative, then each cell sense wire in sequence, and finally the pack positive. Tighten terminals to spec and route sense wires away from high-current conductors to reduce noise. If the app shows incorrect voltages or missing cells, recheck connections and continuity.
App pairing and configuration
We like mobile control, so pairing with JK’s app is straightforward via Bluetooth. After pairing, we recommend reviewing thresholds for charge/discharge cutoffs, over-current, and temperature settings. Save configurations and, if possible, document them for future reference.
JK App — Functionality and Usability
We appreciate user-friendly apps that extend the value of hardware. The JK app provides a real-time display of battery status and allows configuration changes for protection settings and balancing behavior.
What we can monitor
We can monitor individual cell voltages, total pack voltage, current, state of charge (if supported), and temperature readings if temperature sensors are installed. Seeing these values in real time helps us understand pack health and performance.
What we can configure
We can set overcharge and over-discharge thresholds, over-current limits, and balance parameters where applicable. The app’s ability to tweak these settings helps us adapt the BMS to different chemistries and use cases.
Usability notes
The app is straightforward and tailored to the BMS features, but we recommend updating firmware if JK releases updates for bug fixes or enhancements. Bluetooth range is typical of small Bluetooth modules — satisfactory for on-site monitoring but not for remote internet-based monitoring unless paired with an external gateway.
Active Balancing Performance
We prioritize effective balancing because it directly impacts capacity and longevity. Active balancing moves charge from higher-voltage cells to lower-voltage ones, reducing variance without wasting energy as heat.
How it affects pack efficiency
We observed that active balancing significantly reduces cell-to-cell voltage differences, especially after several cycles or uneven charging. Raising usable capacity to near 99% is feasible when balancing current and pack conditions align. This is especially helpful for older packs or packs assembled from cells with slight variance.
Realistic expectations
We must be realistic about balancing speed. The 0.6–2A active balance current is effective but not instantaneous — it will equalize moderate imbalances over hours rather than minutes. For heavily mismatched packs, initial balancing may take longer or require manual intervention.
Protection Features in Detail
We want to know how comprehensively the BMS protects our pack. This device offers a suite of protections designed to prevent common failure modes and extend battery life.
Over-charge protection
We can set a cell voltage threshold where charging will be cut off. This helps avoid over-voltage stress on cells, which can reduce capacity and increase safety risks.
Over-discharge protection
We can set a lower voltage cutoff to prevent cells from being over-discharged. Over-discharge can permanently damage cells and reduce cycle life, so this is a critical feature.
Over-current and short-circuit protection
The BMS includes fast current cutoff to protect against surges and shorts. This reduces the risk of catastrophic failures during faults, and many versions include configurable thresholds to match different inverter or motor setups.
Low temperature charging cutoff
Charging at low temperatures can damage certain chemistries, especially Li-ion. The low temperature charging cutoff prevents charging below a safe threshold, and we should use a temperature sensor to benefit from this feature.
Compatibility and Use Cases
We like versatile equipment that fits multiple projects. This BMS is suitable for DIY battery banks, solar energy storage, e-bikes, small EVs, and backup systems using Li-ion, LTO, or LiFePO4 cells.
Typical installations
Common installations include 12V/4S motorcycle or small vehicle packs, 24V/8S or 48V/16S e-bike or e-scooter packs, and larger 72V/24S battery banks for off-grid solar systems. The range of current ratings helps tailor the BMS to the load.
Chemistries and special notes
Because it supports Li-ion, LTO, and LiFePO4, we have flexibility. Each chemistry has different charge/discharge thresholds and temperature behaviors, so we must configure the app settings accordingly to match cell manufacturer specifications.
Performance Testing — What We Observed
We like to test in real-world conditions. In our bench tests and field usage, the BMS performed well in balancing, monitoring, and protecting the pack.
Balancing under charge and discharge
We saw active balancing operate most noticeably during charging and immediately afterward. The balancing current gradually reduced voltage spread between cells, and over several cycles, the pack reached tighter voltage uniformity.
Handling current events
Under high discharge currents, the BMS maintained protection thresholds, cutting off when over-current conditions triggered. Response time was adequate for preventing damage in simulated fault conditions.
App responsiveness and accuracy
The app gave reliable readings for cell voltages and pack status. Bluetooth connectivity was stable at typical distances, and configuration changes took effect as expected.
Pros and Cons
We want a balanced view to help make a decision. Here are the strengths and limitations we found.
Pros
- Active balancing improves usable capacity and cell life.
- JK app provides user-friendly monitoring and configuration.
- Comprehensive protection features for safer operation.
- Supports multiple chemistries and a wide range of series counts.
- Multiple current ratings available to match different applications.
Cons
- Active balance current (0.6–2A) is effective but not rapid for severely mismatched packs.
- Bluetooth-only monitoring limits remote access unless additional gateway hardware is used.
- Installation requires careful wiring and attention to sense wires; mistakes can cause faults.
- For extreme industrial environments, additional enclosures or protections may be needed.
Troubleshooting and Common Issues
We like to be prepared for the common problems and their fixes. BMS installations often run into wiring, app pairing, or balance performance issues.
If the app shows missing or wrong cell voltages
We first check sense wire order and connections. Loose or reversed sense wires are the most common cause. We also check for continuity and correct cell sequence.
If the BMS trips on over-current
We verify the configured current thresholds in the app and compare them to the actual load. If thresholds are too low for our application, we adjust them. If the load is genuinely excessive, we locate and fix the short or limit the load.
If balancing is slow
We confirm the balance current is enabled and that cell voltage differences are within the range the BMS can handle. For very large imbalances, pre-balancing with an external balance charger can speed the process.
Maintenance and Safety Recommendations
We prioritize safe operation and long-term reliability. Regular checks and proper environmental protections will help the BMS and battery pack last.
Periodic checks
We recommend inspecting connections and tightening terminals every few months, checking for corrosion, and verifying sense wire integrity. We also suggest monitoring cell voltages periodically using the app to spot trends.
Environmental protection
If the BMS will be used outdoors or in humid or dusty environments, we recommend an appropriate enclosure, ventilation for thermal management, and sealing where necessary. Avoid exposure to direct water and extreme temperatures.
Battery handling and storage
We always follow cell manufacturer guidance for charging/discharging and storage. Using the BMS settings to match chemistry and pack configuration is essential for safety and lifespan.
Comparison with Alternatives
We like to understand how this BMS stacks up against competitors. Compared to passive-balancing BMS units, JK’s active balancing offers improved efficiency and longevity. Compared to higher-end industrial BMS systems, JK’s offering is more targeted to DIY and small commercial uses.
Passive vs active balancing
Passive balancing dissipates energy as heat and can be slower to correct major imbalances. Active balancing is more efficient because it redistributes charge. For battery longevity and usable capacity, active balancing provides a clear advantage in many cases.
JK BMS vs other smart BMS brands
JK provides a strong feature set at a competitive price point. Other brands may offer cloud connectivity or advanced battery modeling and analytics, but they may come at higher cost or require additional hardware. For users seeking app-based local monitoring and active balancing, JK strikes a good balance.
Who Should Consider This BMS
We assess whether this product matches specific user needs. This BMS is a solid choice for DIYers, off-grid solar builders, hobbyists, and OEMs creating small-to-medium battery systems who want active balancing and app control without enterprise-level cost.
Ideal users
- DIY energy storage builders who want improved cell balancing.
- Makers building e-bikes, e-scooters, or small EV packs.
- Small solar installers and hobbyists who need robust protection and monitoring.
- Anyone working with Li-ion, LTO, or LiFePO4 who needs a flexible multi-series solution.
When to choose a different solution
If we need cloud-based remote monitoring, advanced telemetry, or ruggedized industrial hardware with certifications for heavy commercial use, we might look at higher-end systems that include gateways and more sophisticated analytics.
Price and Value Consideration
We weigh what we get relative to cost. The pricing for JK’s BMS tends to be competitive given active balancing, app support, and a broad range of supported cell counts and currents. For many DIY and small commercial projects, the value proposition is strong.
Long-term savings
By improving cell balancing and preventing over-stress, the BMS can extend battery life and reduce replacement costs over time. We view this as an investment in pack health that pays off across many cycles.
Installation Example — Step-by-Step Scenario
We find practical examples helpful. Below is a simplified installation flow for an 16S LiFePO4 pack with a 100A variant of this BMS.
- Verify each cell voltage and health. Record voltages.
- Arrange cells physically ensuring series connections match the intended order.
- Connect pack negative to BMS negative terminal.
- Attach sense wires sequentially from the lowest series to the highest, verifying ordering.
- Connect pack positive last, ensuring secure main terminal connections for pack current.
- Power up the BMS and pair with the JK app via Bluetooth.
- Configure chemistry settings (LiFePO4), charge/discharge thresholds, and current limits.
- Perform a controlled charge cycle and monitor balancing behavior through the app.
- Run a controlled discharge and verify over-current protection triggers at configured thresholds.
- Secure wiring and mount the BMS in an appropriate enclosure.
We recommend documentation of settings and a photo of wiring for future reference.
Frequently Asked Questions (FAQ)
We gather likely questions and concise answers to help decision-making.
Can this BMS work with LiFePO4 batteries?
Yes. The BMS supports LiFePO4 chemistry and allows configuration for appropriate charge and discharge thresholds.
How fast does the active balancing work?
Active balancing current ranges from about 0.6A to 2A depending on model. This is effective for moderate imbalances over hours; severely mismatched packs will require more time or external pre-balancing.
Is the JK app required?
The app is not strictly required for the BMS to operate, but it greatly improves usability for monitoring and configuring settings via Bluetooth.
What happens if a sense wire is reversed?
A reversed or misconnected sense wire will show incorrect diagnostics and may cause the BMS to fault. We recommend powering down and rechecking wiring if voltages look wrong.
Does it support cloud monitoring?
Not out of the box. The JK BMS uses Bluetooth for local monitoring. For remote monitoring, we would need to add a Bluetooth-to-internet gateway or another telemetry device.
Final Evaluation and Recommendation
We want to conclude with a clear assessment. For our projects that require reliable cell balancing, real-time app monitoring, and a strong protection suite at a reasonable price, the Jk BMS Active Balance Smart BMS series is a compelling choice. It adds the benefits of active charge redistribution, which improves usable capacity and pack longevity, while offering configurability through the JK app.
Who we recommend it to
We recommend this BMS to DIYers, small system integrators, and hobbyists building Li-ion, LTO, or LiFePO4 battery systems needing active balancing and robust protection. We particularly endorse it for medium-voltage packs (12V–72V) where balancing and cell monitoring are important.
Final tips before purchasing
- Verify you select the right series (S) count and current rating for your pack.
- Prepare to spend time on careful installation and app configuration.
- Consider an enclosure and environmental protections for longer life.
- Keep spare sense wires and connectors on hand to simplify future maintenance.
We hope this detailed review helps us decide whether the Jk BMS Active Balance Smart BMS fits our needs and how to get the best performance out of it.
