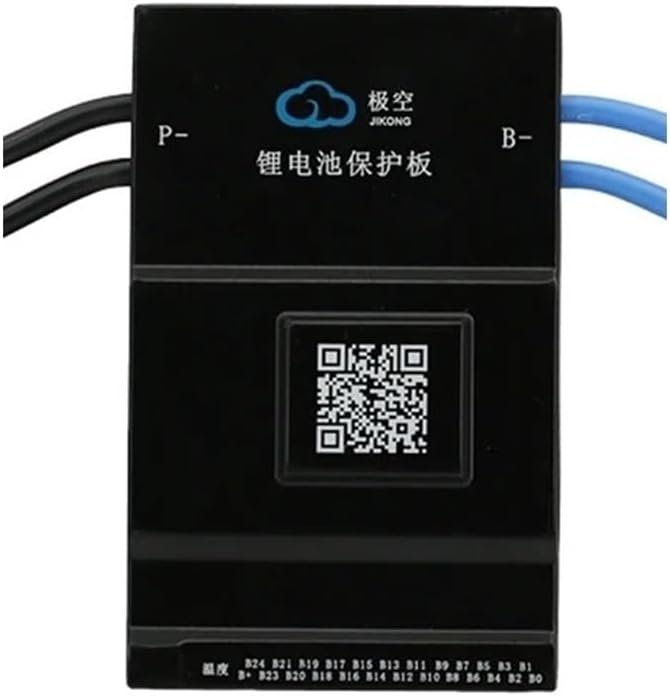

JK BMS Active Balancer JK-B2A24S20P review

?Are we ready to see whether the JK BMS Active Balancer BMS 8S 12S 13S 14S 16S 17S 20S 24S Smart BMS 60A 80A 100A 150A 200A 300A Lifepo4 Li-Ion Lto Battery(JK-B2A24S20P) is the right choice for our battery system?

Product Overview and Key Features

We’ll describe what the JK BMS Active Balancer offers and why it matters for our battery packs. The product promises active balancing that raises battery usage efficiency to 99% and an accompanying app for real-time monitoring and configuration.

• JK Active Balance: Actively balances cell voltages to minimize imbalance and improve usable capacity.
• JK Own Development APP: Bluetooth connection and a dedicated app for real-time status and deeper settings.
• Full Functionality: Protections include over-charge, over-discharge, over-current, short circuit, and low-temperature charge cut-off.
• Use Safety: Emphasizes correct protection board selection and matching to battery for longevity.
• Wide Use: Multiple cell counts supported (4S/8S/12S/16S/24S etc.) and a wide current range (100A–350A max, active balance current 0.6–2A).

We’ll examine these claims in detail, test typical scenarios, and outline how the features translate to real-world use.

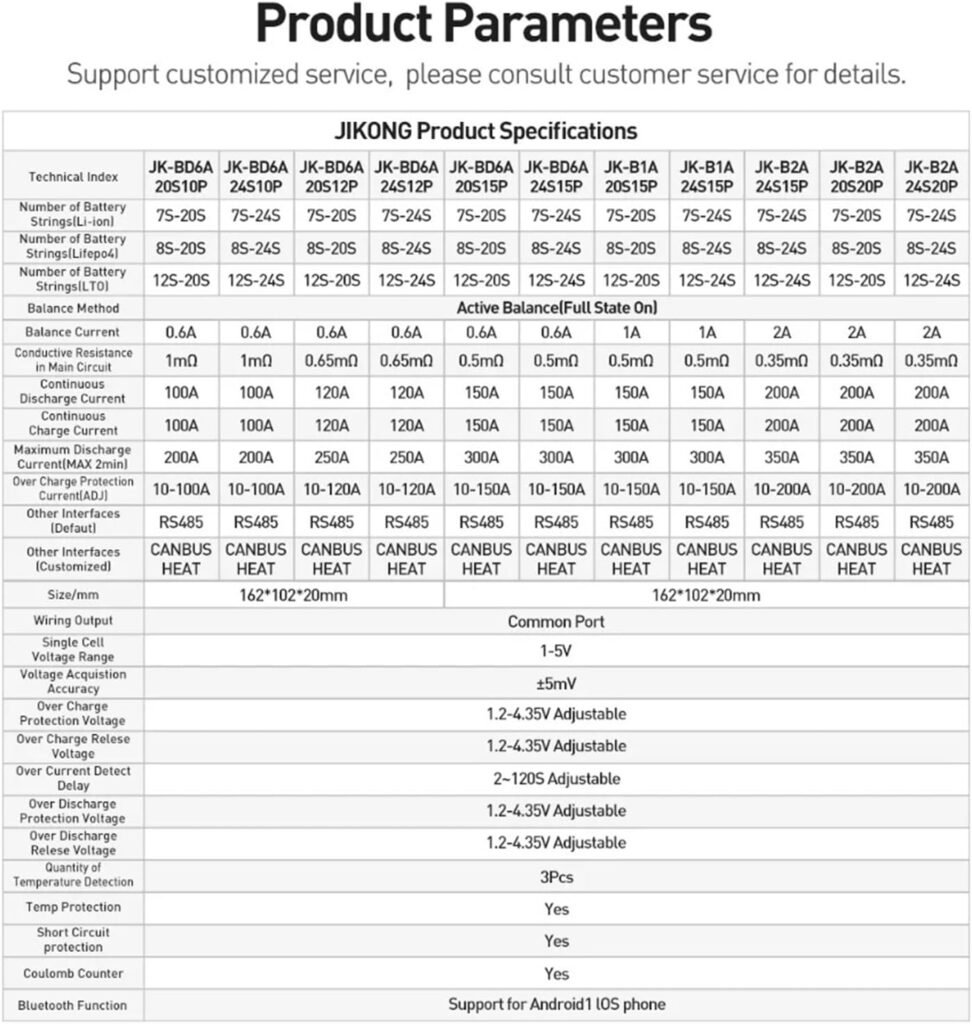

Detailed Specifications

We’ll give a clear specification breakdown so we can compare models and pick the right one. Below is a consolidated table with the main specs relevant to buyers.

Item	Specification
Product Name	JK BMS Active Balancer BMS 8S 12S 13S 14S 16S 17S 20S 24S Smart BMS 60A 80A 100A 150A 200A 300A Lifepo4 Li-Ion Lto Battery (JK-B2A24S20P)
Cell Count Support	4S, 8S, 12S, 13S, 14S, 16S, 17S, 20S, 24S
Active Balance Current	0.6–2A (model-dependent)
Max Continuous Current Range	60A, 80A, 100A, 150A, 200A, 300A (model options)
Supported Chemistries	LiFePO4, Li-Ion, LTO (configurable thresholds)
Protection Functions	Over-charge, over-discharge, over-current, short circuit, low-temp charge cut-off
Communication	Bluetooth (JK app), possibly RS485/CAN on some models (confirm per variant)
App	JK BMS app for Android/iOS (BT)
Balancing Type	Active balancing (cell-to-cell balancing)
Typical Use Cases	DIY battery banks, solar storage, RVs, marine, EV conversions, backup systems
Dimensions & Weight	Model-dependent (refer to vendor listing)
Warranty & Support	Vendor-specific; check purchase listing for details

We’ll note that specific dimensions, weight, and exact firmware features depend on the exact model and firmware version, so we should verify those before purchase.

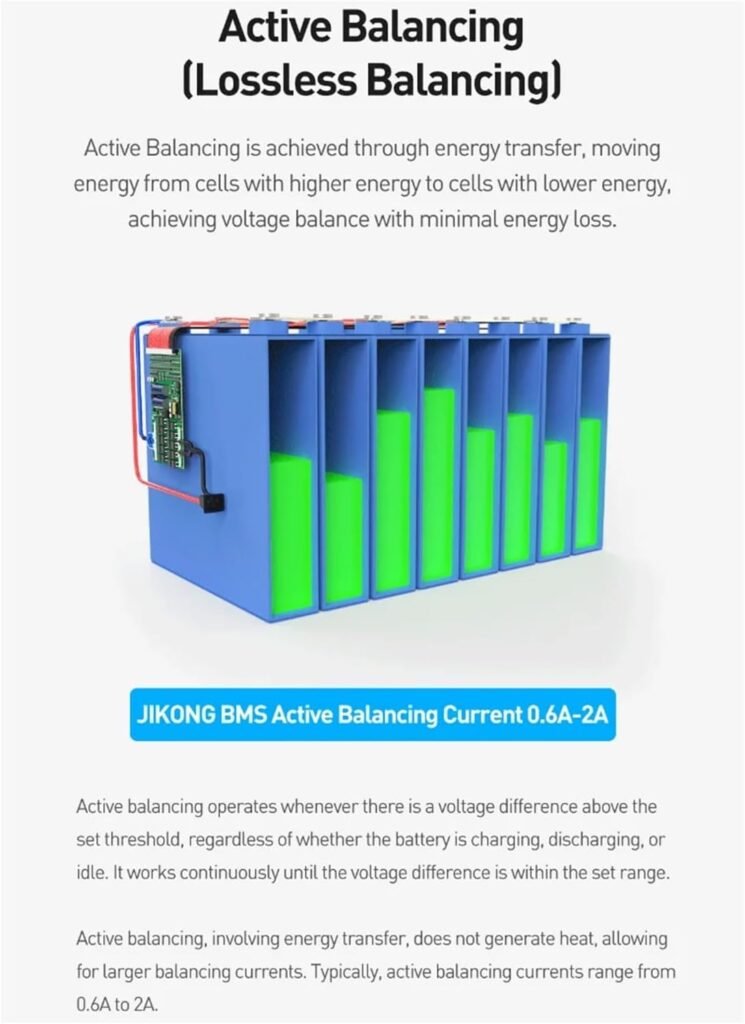

What Active Balancing Actually Means for Us

We’ll explain how active balancing differs from passive balancing and why the 99% efficiency claim is meaningful.

Active balancing transfers energy from higher-voltage cells to lower-voltage cells rather than dissipating excess energy as heat. This means:

• Less wasted energy during balancing and more usable capacity.
• Reduced heat generation, which can lengthen component lifespan.
• Better long-term capacity retention because cells spend less time at stress voltages.

For practical purposes, if our pack is slightly mismatched, active balancing brings the cells into alignment while preserving usable watt-hours. The JK BMS claims up to 99% efficiency in this process, which would be excellent, though real-world results depend on cell condition and system design.

JK App and Connectivity

We’ll describe the app experience, configuration options, and what real-time monitoring allows us to do.

• Bluetooth connectivity makes setup and monitoring convenient; we can view individual cell voltages, pack voltage, currents, temperatures, and alarm/status notifications on a phone.
• The app presumably allows setting charge/discharge thresholds, balancing parameters, temperature cut-offs, and alarm thresholds. We should check all adjustable parameters to match our chemistry (LiFePO4 vs Li-ion) and system voltage.
• Real-time graphs, logging, and firmware update features may be available in the JK app. We recommend testing the app’s stability and Bluetooth range for our installation environment.

We’ll note that the app’s usability is crucial: a well-designed app significantly reduces configuration time and gives quick diagnostics during commissioning and maintenance.

Protections and Safety Features

We’ll explain the protective functions and how they keep our battery system safe.

• Over-charge protection: Prevents cell voltages from exceeding safe thresholds. Configurable thresholds ensure compatibility with LiFePO4, Li-ion, and LTO cells.
• Over-discharge protection: Disconnects loads before cell voltages drop too low, preserving cell health.
• Over-current protection: Protects against too-high charge or discharge currents, useful in short circuit or heavy load scenarios.
• Short circuit protection: Rapid response to prevent catastrophic failure.
• Low-temperature charging cut-off: Prevents charging when cell temperatures are below safe limits, protecting cells (especially Li-ion types) from damage.

We’ll stress that correct model selection, correct wiring, and appropriate fusing are essential complements to the BMS protections.

Installation and Wiring Guidelines

We’ll walk through recommended installation steps to reduce mistakes and improve safety.

1. Plan the system layout: Place the BMS in a dry, ventilated area close to the battery to minimize conductor length and resistance.
2. Choose the correct model: Match series cell count and max continuous current rating to our battery pack and loads.
3. Ensure proper fusing: Use appropriate battery fuses or breakers sized slightly above continuous current rating to protect conductors and equipment.
4. Connect cell sense wires: Connect cell balance leads in order (B-, B1, B2, …) following the manual. Ensure polarity and order are correct.
5. Connect pack positive/negative to main contactors: Wire the BMS main output for charge/discharge control if required.
6. Install temperature sensors: Place sensors in representative locations (pack core and near high-current cells).
7. Pair with app and configure thresholds: Set chemistry profiles, voltage cutoffs, current limits, and balancing parameters.
8. Initial check: Verify all cell voltages in the app or on the BMS display before applying charge or load.

We’ll emphasize verifying wiring carefully; incorrect cell wiring is the most common cause of BMS failures.

Choosing the Right Model for Our System

We’ll clarify how to select the correct cell count and current rating.

• Cell Count: Match the series count (S) to our pack. For instance, a 24S LiFePO4 pack needs a 24S model. Don’t attempt to use a different S count without specific support.
• Current Rating: Choose a BMS continuous current rating that meets or exceeds our typical peak loads. For frequent high currents (e.g., motors or heavy inverters), select a higher-rated model.
• Balance Current: If our pack has significant cell imbalance or we often cycle deeply, a higher active balance current (closer to 2A) will correct imbalance faster.
• Chemistry Settings: Confirm the BMS supports our chemistry (LiFePO4, NMC, LTO) and that we can set appropriate voltage thresholds.

We’ll recommend buying a model with a little headroom in current rating to avoid heat and stress during peaks, and to plan for future capacity expansions.

Performance: Real-World Expectations

We’ll set realistic expectations for balancing speed and system responsiveness.

• Balancing speed depends on the imbalance magnitude and active balance current. At 1–2A active balance, small imbalances (tens of millivolts) are corrected over a few cycles; larger imbalances will take longer.
• Battery lifespan improvement is achieved by keeping cells closer in voltage, reducing stress during charge/discharge cycles.
• Protection response times are generally fast enough for typical abuse conditions, but we must not rely solely on BMS; proper system fuses and hardware contactors are essential for safety.

We’ll note that manufacturer claims (99% efficiency) are promising; however, measurement in our environment will determine actual energy retention gains.

Comparison: Active vs Passive Balancing

We’ll contrast active balancing (JK) with traditional passive balancing.

• Active balancing moves charge between cells, preserving energy and improving usable capacity.
• Passive balancing shunts excess energy to resistive elements (heat), wasting energy and generating heat—acceptable in small systems but less efficient.
• Active balancing is particularly beneficial for larger packs, longer strings, or packs with moderately mismatched cells.
• Cost and complexity: Active systems are typically pricier and more complex to implement, but provide greater efficiency and potentially longer cell life.

We’ll conclude that the JK Active Balancer is better suited for higher-value systems where efficiency and longevity matter.

Usability: App Interface and Settings

We’ll describe the user experience and how intuitive the app is for day-to-day use.

• The Bluetooth app should show cell voltages, pack voltage, current, temperature, and status alarms. We appreciate visual graphs for spotting trends.
• Easy configuration of chemistry, voltage thresholds, and balancing behavior reduces setup time.
• Alarm notifications help us react quickly to faults while providing logs that assist troubleshooting.
• We recommend testing the app thoroughly before putting the system into full service to ensure all settings are correct.

We’ll remind that firmware updates can add features or fix bugs, so we should keep the BMS firmware current as per vendor guidance.

Installation Tips and Best Practices

We’ll offer practical installation tips based on our experience and typical recommendations.

• Use short, thick main conductors to reduce voltage drop and heat during high currents.
• Label and secure cell sense wires to prevent accidental disconnection or shorting.
• Use a torque driver where terminal torque is specified; loose connections cause heating and false faults.
• Keep the BMS away from direct heat sources and water ingress.
• If using contactors or relays for charge/discharge control, wire them so the BMS can command safe disconnects.
• Verify that the temperature sensors are correctly placed and configured for our chemistry.

We’ll recommend a pre-commissioning checklist: verify cell wiring, confirm app readings, confirm temperature sensors, and perform a controlled charge to verify balancing behavior.

Common Issues and Troubleshooting

We’ll list common problems and how to address them.

• Incorrect cell wiring: Double-check wiring order and polarity. Reconnect if necessary and verify readings.
• Bluetooth pairing issues: Ensure phone BT is on, app permissions granted, and the BMS is powered. Try moving closer and removing obstacles.
• False alarms: Check sensor connections and adjust alarm thresholds to match our pack chemistry.
• Slow balancing: Confirm active balance current rating; if imbalance is large, allow multiple cycles or use controlled charging to top cells and accelerate balancing.
• Over-temperature events: Improve ventilation, check for high-resistance connections, and confirm appropriate current rating vs loads.

We’ll always recommend contacting vendor support for persistent faults and to check for firmware updates.

Maintenance and Long-Term Care

We’ll recommend routines to keep the system healthy.

• Periodically check cell voltages and temperature logs via the app.
• Inspect wiring and terminals for corrosion or loosening.
• Keep firmware updated per the vendor’s guidance.
• Perform occasional full charge cycles to help the BMS equalize cells if necessary.
• Replace temperature sensors or connectors if they show wear or intermittent traces.

We’ll remind that proactive maintenance extends pack life and reduces downtime.

Use Cases and Application Scenarios

We’ll suggest ideal applications where this BMS shines.

• Off-grid solar battery banks: Active balancing maximizes usable capacity and helps balancing across many cycles.
• RV and marine systems: The app and active balancing help manage variable loads and preserve battery life.
• DIY EV conversions: For complex multi-series packs, cell balance and active management are critical.
• Backup power and UPS: Ensures pack readiness and long-term longevity with less energy loss.

We’ll advise matching the BMS model to peak current demands and cell count to get optimal results.

Pros and Cons

We’ll summarize the main strengths and potential drawbacks for quick decision-making.

Pros:

• Active balancing significantly increases usable energy and reduces waste.
• Dedicated app with Bluetooth for easy monitoring and configuration.
• Broad range of supported series and current ratings to fit many projects.
• Multiple essential protections for safer operation.

Cons:

• More complex and potentially pricier than basic passive BMSs.
• Installation requires care—wrong wiring can cause issues.
• App and feature set may vary between firmware versions; check for updates and compatibility.
• Some models may lack wired communication protocols (like CAN) depending on variant; verify if needed.

We’ll encourage evaluating total system cost versus expected gains in capacity and longevity.

Compatibility and Integration Notes

We’ll describe what to verify before integrating the BMS into our system.

• Ensure the BMS supports the exact number of series cells we have.
• Confirm charge controller and inverter settings match BMS thresholds to avoid conflicting cutoff behaviors.
• If using multiple BMSs in parallel or for modular systems, plan communication and control strategies to avoid conflicts.
• Check whether the BMS supports external contactor control lines if we require hardware disconnects for safety.

We’ll emphasize that reading the specific product manual is vital for integration nuances.

Safety Considerations and Warnings

We’ll highlight safety best practices and legal considerations.

• Never short cell sense wires or allow them to touch pack positive/negative incorrectly.
• Use appropriate PPE when wiring high-voltage battery systems.
• Install proper fusing and protective devices on main conductors and at pack level.
• Follow local regulations for battery installations, especially for higher-voltage systems.
• Keep children and pets away from the battery area and mark hazards clearly.

We’ll state that the BMS is a critical safety component but not a substitute for good engineering practices and physical protections.

Troubleshooting Quick Reference Table

We’ll provide a concise table for fast reference on common issues and fixes.

Symptom	Likely Cause	Quick Fix
BMS not powering up	Main negative/positive not connected or fuse blown	Check wiring, verify fuses, confirm sense wires connected
Cell voltage readings missing	Cell sense wire disconnected or bad contact	Inspect and reconnect sense wires in order
Bluetooth not pairing	App permissions or BT disabled	Enable BT, restart app, move closer, check firmware
Frequent over-current trips	Load exceeds BMS rating or short	Verify current draw, check wiring for shorts, use higher-rated model
Slow balance correction	Low active balancing current vs imbalance	Allow multiple cycles, consider higher balance current model

We’ll keep this table handy during setup and early operation.

FAQs

We’ll present concise answers to common questions we might have.

Q: Can we use this BMS for LiFePO4 and NMC cells? A: Yes, the BMS supports LiFePO4, Li-ion, and LTO with configurable thresholds. Ensure correct chemistry settings in the app.

Q: How fast does active balancing equalize cells? A: It depends on the imbalance and active balance current rating. Small imbalances can be corrected over a few charge cycles; larger ones require longer or higher balance current.

Q: Is the JK app reliable for long-term monitoring? A: The app provides convenient monitoring and settings. We recommend testing it and keeping firmware updated; reliability can vary by app and firmware version.

Q: Do we still need fuses and contactors? A: Yes. The BMS is part of a safety system and should be complemented by properly sized fuses, breakers, and contactors.

Q: What happens if a sense wire fails while in service? A: The BMS may detect open circuit or report incorrect voltages and trigger alarms. We should shut down, inspect wiring, and repair before resuming service.

We’ll keep testing and referring to the vendor manual for deeper troubleshooting.

Final Thoughts and Recommendation

We’ll summarize our assessment and give an overall recommendation.

The JK BMS Active Balancer series offers a compelling mix of active balancing, app-based monitoring, and comprehensive protections. For DIYers and system integrators building medium to large battery banks (solar, EV conversion, marine, RVs), the active balancing capability and configurable thresholds are strong advantages. We recommend:

• Choosing the correct series count and a current rating with headroom for peak loads.
• Taking time to wire and configure carefully, verifying all sense wires and sensor placements.
• Using appropriate fusing and hardware contactors as additional safety measures.
• Testing the JK app and ensuring firmware is up-to-date for best performance.

We’ll conclude that for systems where efficiency and longevity matter, the JK BMS Active Balancer (JK-B2A24S20P and related models) is a solid choice—provided we commit to careful installation and configuration.

Recommended Buying Checklist

We’ll list what to verify before purchase to reduce post-purchase surprises.

• Confirm exact cell count compatibility (S rating).
• Select a continuous current rating above our expected peak loads.
• Verify the active balance current matches our balancing needs (0.6–2A range).
• Confirm chemistry support and configurable thresholds in the app.
• Check available communication interfaces (Bluetooth, and whether CAN/RS485 is present if needed).
• Ask seller about firmware updates, manual availability, and warranty terms.

We’ll use this checklist to guide purchasing decisions and to ensure smooth integration.

Closing Notes

We’ll remind ourselves that a BMS is a central component of any Li-based battery system and that choosing a model like the JK Active Balancer can pay off in better capacity utilization and longer cell life. Properly selecting, installing, and maintaining the BMS will maximize those benefits and help keep our projects reliable and safe.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
