Are we ready to see whether the JK Smart BMS JK BMS Active Balance BMS 4S 8S 12S 13S 14S 16S 17S 20S 24S Smart BMS 60A 80A 100A 150A 200A 600A Lifepo4 Li-Ion Lto Battery BMS Battery Equalizer (Color : B2A20S20P, Size : BMS) is a fit for our battery project?
Product overview
We find that this JK Smart BMS model is positioned as a versatile battery management system aimed at DIYers and professionals who work with LiFePO4, Li-ion, and LTO cell chemistries. The BMS emphasizes active cell balancing, Bluetooth app control, and a wide range of supported series counts and current ratings to match many system sizes.
What the product claims
We see several key claims in the product description, including active balancing that pushes cell usage efficiency toward 99%, a dedicated JK app with Bluetooth communication that shows real-time battery status, and full protection features such as over-charge, over-discharge, over-current, short circuit protection, and low temperature charge cutoff. The manufacturer also highlights model variety for voltage and current configurations, making the unit adaptable to 4S up to 24S systems depending on model selection.
Who this product is for
We believe this BMS is suited for people building off-grid battery banks, e-bike or EV conversions, solar energy storage, UPS systems, and other multi-cell battery packs where cell balancing and remote monitoring matter. It will also appeal to those who prefer an app-driven interface and want active balancing rather than passive bleed balancing for improved pack longevity.
Key specifications
We like to have a clear, concise reference, so we summarized core specs and options in the table below for easy comparison. These are derived from the product details and the product name, which indicates a wide range of available series and current ratings. Always double-check the seller’s listing for the exact model and ratings you purchase.
| Feature | Specification / Range |
|---|---|
| Supported series (S) | 4S, 8S, 12S, 13S, 14S, 16S, 17S, 20S, 24S (model-dependent) |
| Voltage systems referenced | 12V (4S), 24V (8S), 48V (16S), 72V (24S) — others supported per S count |
| Current ratings (models) | 60A, 80A, 100A, 150A, 200A, 600A (product name); listing mentions 100A–350A range |
| Active balance current | 0.6A–2A (typical, model-dependent) |
| Cell chemistries | LiFePO4 (LFP), Li-ion, LTO |
| Protections | Over-charge, over-discharge, over-current, short circuit, low-temp charging cutoff |
| Communication | Bluetooth via JK App (proprietary) |
| App features | Real-time cell voltages, pack voltage, temperatures, alarm settings, some BMS parameter configuration |

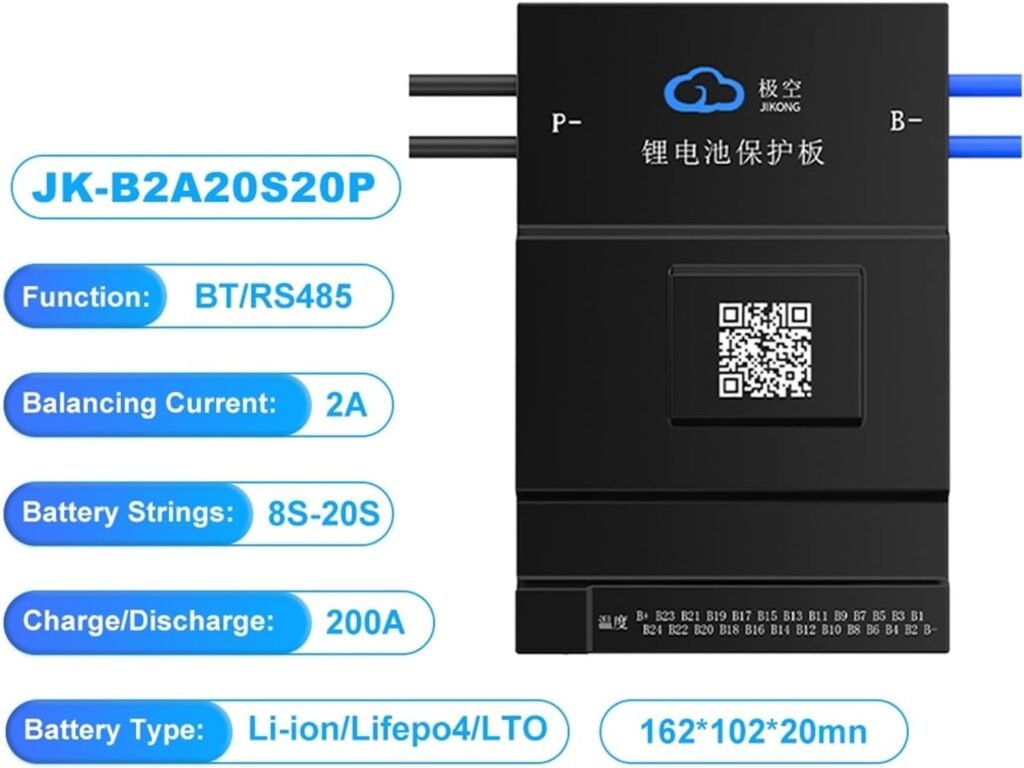

| Form factor | “BMS” size variant in listing; color B2A20S20P (label only) |
Design and build quality

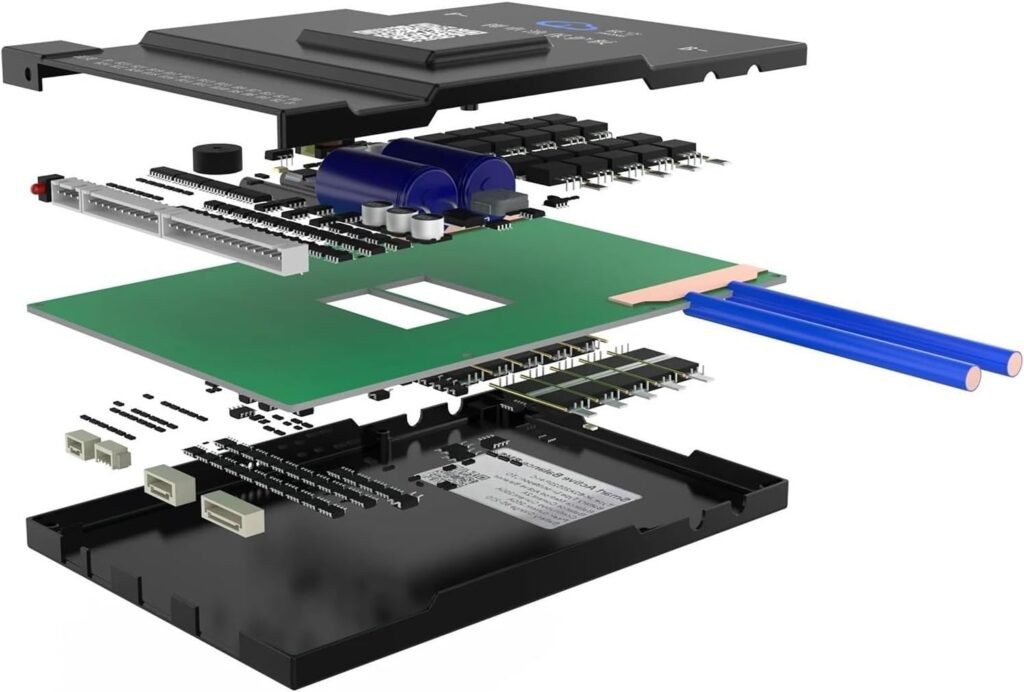

We notice the physical build is compact and designed for integration inside battery enclosures, with multiple sense wires and heavy current terminals on higher-amp models. The BMS typically integrates balancing electronics, MOSFETs for protection switching, and a Bluetooth module on-board.
We feel it’s important to check that the model we receive matches the rated current and S count, as production runs can differ in terminal layout and connector types. Also, if mounting in a tight enclosure, confirm dimensions and orientation before final assembly.
Packaging and components included
We generally expect the product to include the BMS board, a set of balance/sensing connectors or pre-wired harness, and a user manual, although exact items may vary by seller. The manual commonly contains wiring diagrams, safety precautions, and a QR code or instructions for downloading the JK App.
We recommend verifying that all required sense wires and current-carrying connectors are present and in good condition before powering the pack. If a harness is missing or different from your expectations, contact the seller to avoid installation errors.
JK App and Bluetooth connectivity
We like that the manufacturer provides a dedicated JK App to monitor battery health and set parameters over Bluetooth, which simplifies configuration and daily monitoring compared to BMS units without remote telemetry. The app reportedly shows real-time voltages, temperatures, and alarms, and allows some configurable protection thresholds depending on firmware.
When using the app, we advise pairing carefully and keeping the firmware updated where possible. Bluetooth range and reliability depend on the Bluetooth module and enclosure shielding; we recommend testing connection quality in the intended operating setup before relying on remote monitoring alone.
App features and settings
We found that app features typically include viewing individual cell voltages, total pack voltage, current (if supported), temperature readings, and logs or alarm history. Settings often allow us to customize over/under voltage triggers, enable/disable balancing, and configure charge/discharge permissions.
We encourage users to read the app help sections or manual for correct parameter ranges. Incorrectly setting protection levels can harm cells or cause unnecessary cut-offs, so use default values unless you are confident in your battery chemistry and cell ratings.
Active balancing explained
We like active balancing because it re-distributes energy between cells instead of wasting energy as heat, which can materially increase usable capacity and extend cycle life. The JK Active Balance mechanism claims to reduce voltage differences between cells and raise battery usage efficiency up to 99%, which is a strong marketing claim but logically aligns with the advantages of active balancing over passive bleed balancing.
Active balancing effectiveness depends on balance current and state-of-charge differences. With the JK’s stated active balance current of around 0.6A–2A, we can expect meaningful balancing over time in packs with moderate imbalance, but very large imbalances may take many hours to correct.
Practical implications of active balancing
We appreciate that active balancing is particularly useful in larger packs where small differences accumulate over many charge cycles and where passive balancing would waste energy as heat. For systems that see frequent partial charges and discharges, active balancing helps maintain uniform cell voltages and reduces premature pack cutoff due to a single low cell.
We recommend pairing active balancing with good cell matching at build time and periodic cell checks. Active balancing isn’t a substitute for proper cell selection and proper charging practices; it complements them.
Protection features and safety
We find the JK BMS offers standard and crucial protections: over-charge protection to prevent cells from being pushed above safe voltages, over-discharge protection to avoid damaging low voltage events, over-current and short-circuit protection for safety under fault conditions, and low temperature charging cutoff to prevent lithium plating or other damage when charging below safe temperatures.
We consider these protections essential for any multi-cell battery pack, and the presence of a temperature cutoff is especially beneficial for systems installed in cold climates or subject to outdoor conditions.
How protections operate in practice
We often see the BMS use MOSFETs to disconnect charge or discharge paths when thresholds are exceeded. The app may provide alerts and logs that help diagnose repeated cutoffs, which can point to problems such as a failing cell, improper wiring, or a charging source issue.
We advise testing protection behavior during initial setup using safe procedures and limiting the pack to low current during early commissioning to verify that the board reliably trips and resets according to settings.
Compatibility and supported chemistries
We appreciate that the JK BMS explicitly supports LiFePO4, Li-ion, and LTO chemistries. That flexibility makes it useful for a variety of projects, from LiFePO4 solar banks to high-energy Li-ion packs. However, correct parameter configuration for each chemistry is essential to avoid damage.
We caution that different chemistries have unique charge/discharge voltage windows and temperature behavior. We recommend confirming the app or manual offers appropriate preset profiles or allows manual configuration consistent with the cell manufacturer’s specifications.
Series count and current model selection
We note the product name lists many series options (4S to 24S) and current ratings from 60A to 600A depending on the variant. Choosing the correct S count is a first step because a 16S BMS wired into a 12S pack won’t function properly. Current rating selection should consider continuous load, inrush currents, and safety margins.
We recommend sizing the BMS continuously-rated current above the expected continuous load and confirming the short-term or peak handling capability for motor starts or other transient events. If in doubt, choose the next higher available current rating.
Installation and wiring
We like to plan wiring carefully before starting installation: identify cell positions, mark sense leads, and route high-current cables separately from small-signal sense wires to minimize interference and measurement errors. Proper isolation, correct polarity, and secure connections are all crucial to reliable BMS operation.
We suggest using ring terminals on heavy current wires, heat-shrink on soldered joints, and strain relief for the sensing harness. Follow the manual wiring diagram precisely — many issues originate from reversed sense wires or poor connections at the cell taps.
Step-by-step basic installation checklist
We recommend the following steps as a safe checklist for installation: 1) Verify that cell voltages are within safe range before connecting the BMS. 2) Connect negative main terminal first if recommended, then install the sense leads from the lowest cell to the highest cell in order. 3) Attach the main positive terminal last. 4) Power up and check each cell reading via the app before applying charge or load. 5) Confirm protection thresholds and balance behavior in the app.
We also advise having a fuse or circuit breaker in the main positive lead as a safety measure and to use insulated tools to reduce the risk of shorting during installation.
Performance expectations and testing
We expect accurate voltage sensing within a few millivolts under normal conditions, and balancing to operate continuously or when conditions meet the BMS’s balancing criteria. With 0.6A–2A balancing current, cells that are within a few hundred millivolts will equalize reasonably during several charge cycles.
We recommend initial testing that includes a slow charge while monitoring cell voltages until balancing initiates, followed by an under-load discharge test to ensure the BMS does not trip prematurely. Logging through the app during these tests can reveal patterns such as repetitive cutoffs that suggest cell mismatch or wiring issues.
Thermal behavior and continuous current
We note that higher current models will generate heat from MOSFETs and power electronics under load, so providing ventilation or mounting on a heat-dissipating surface helps. Continuous operation close to the rated current can warm the BMS; we recommend checking temperature ratings in the manual and allowing a margin for heat rise.
We advise monitoring the BMS during heavy loads for the first few hours and verifying that protective cutoffs don’t occur under expected operating conditions.
Real-world use cases
We see this BMS being valuable in solar-plus-storage DIY systems where active balancing can increase usable capacity over many cycles and in electrified vehicle conversions where battery reliability matters. Hobbyists building medium- to high-voltage packs will appreciate the variety of series counts available.
We also consider off-grid cabins, backup power for telecom, and portable power stations as good candidates. In each case, choosing the correct S count and current rating for the application is essential.
Use case examples
For example, in a 48V LiFePO4 solar bank built from 16 cells (16S), the JK BMS with active balancing can keep cells in better balance across seasonal and daily charging cycles, reducing the chance of one cell limiting pack capacity. For an e-bike using a 4S or 13S pack (model dependent), the app monitoring helps us track cell behavior under load and identify aging cells earlier.
We suggest matching the BMS to the expected operating environment — sealed enclosures in harsh climates may need external temperature sensors or special mounting to ensure the low-temperature cutoff and other protections work correctly.
Pros and cons
We find it helpful to list practical advantages and limitations so we can make an informed purchase.
Pros:
- Active balancing improves usable capacity and pack longevity compared to passive-only systems.
- Bluetooth app gives convenient real-time monitoring and some configurable settings.
- Wide range of series counts and current models allows good matching to many projects.
- Standard protections (over/under, over-current, short circuit, low temp cutoff) are included.
Cons:
- Bluetooth performance can be limited by enclosure shielding and distance, so it may not always be reliable for remote installations.
- Active balancing current is moderate (0.6A–2A), so large imbalances take time to correct.
- Documentation and wiring harnesses can vary by seller, so we may need to clarify what’s included.
- Some listings show differing max current ranges — confirm exact model specs before purchase.
Troubleshooting common issues
We often encounter certain recurring issues with BMS installations, and many are avoidable by careful wiring and initial testing. Below we summarize common problems and practical fixes based on typical BMS behavior.
Symptom: Cells read incorrectly or show swapped voltages.
- Likely cause: Sense wires connected out of order or poor contact.
- Fix: Power down, re-check sense wire order and secure connections. Confirm readings after re-powering.
Symptom: BMS immediately trips on charge or discharge.
- Likely cause: Over/under voltage threshold misconfiguration or faulty cell.
- Fix: Check individual cell voltages via app. Replace any cells outside safe range and confirm correct protection thresholds.
Symptom: Bluetooth connection drops frequently.
- Likely cause: Enclosure shielding, distance, or interference.
- Fix: Test with lid open to confirm signal. Consider external Bluetooth antenna if supported, or plan for periodic on-site checks.
We recommend keeping a multimeter, spare connectors, and access to the app during initial commissioning to speed diagnosis.
When to contact support
We advise contacting seller or manufacturer support when we encounter hardware faults such as non-responsive BMS board, excessive heating, or repeated failure to reset protections after resolving the underlying issue. Documenting the steps taken and sending logs or app screenshots often speeds resolution.
We also suggest requesting firmware update instructions if a behavior suggests firmware-related limitations, and to confirm that any updates are supplied by an official source.
Maintenance and care
We think routine maintenance includes periodic checking of cell voltages, inspecting connectors for corrosion, and ensuring the BMS firmware and app stay updated when updates are available. Good housekeeping reduces the risk of developing problems that the BMS must correct.
We especially recommend checking the sense wire connections and tightness of high-current terminals every few months in systems that experience vibration or temperature cycling.
Storage and long-term care
If the battery pack will be stored for extended periods, we recommend storing at a safe state of charge as specified by the cell manufacturer and ensuring the BMS remains powered or periodically checked to avoid deep discharge. For long-term storage in cold climates, pay attention to the low-temperature charge cutoff so the pack isn’t charged below safe temperatures.
We suggest logging usage cycles via the app where possible so that aging patterns become visible before a cell fails catastrophically.
Comparison to passive BMS units
We like to compare active balancing to passive balancing systems because the difference affects long-term pack performance. Passive BMS systems shunt excess cell energy as heat during charge to equalize voltages, which is simple but wastes energy. Active balancing transfers energy between cells, which is more efficient but typically more complex and costlier.
We feel that in large or expensive packs where extended cycle life and capacity matter, active balancing is often worth the premium. For very small packs or low-cost disposable setups, a passive BMS might be adequate.
When active balancing matters most
Active balancing is particularly important when the pack is composed of many cells in series and when precise balancing is hard to achieve through hand-matching alone. It’s also valuable in systems with frequent partial charges, where small imbalances compound over time and lead to early cutoff of pack capacity.
We suggest assessing the cost-benefit based on pack value and intended lifespan.
Safety notes and best practices
We emphasize safe working practices: isolate the pack before working on wiring, use insulated tools, wear eye protection, and have a fire extinguisher suitable for electrical fires available during testing. Battery work involves high energy and can be hazardous if mistakes are made.
We also encourage using fuses or circuit breakers in the main conductors, and to follow cell manufacturer guidelines regarding charge/discharge rates, temperatures, and storage.
Regulatory and shipping considerations
We note that lithium battery components can be subject to shipping regulations in some regions, and some jurisdictions have specific requirements for battery systems in vehicles or grid-tied installations. We recommend checking local regulations if the pack will be installed in a regulated environment.
We also suggest documenting the BMS and battery specs for future service or inspections.
Purchasing tips
We advise carefully confirming the exact model before purchase: S count, continuous current rating, included harness, and whether the app and firmware are available and supported in your region. Where possible, buy from sellers with good documentation and responsive support.
We also recommend ordering a slightly higher current-rated BMS if our expected loads occasionally have high-startup currents or if we anticipate future expansions.
What to ask the seller
We encourage asking the seller for: 1) a wiring diagram specific to the model, 2) confirmation of the included harness and connectors, 3) expected active balancing current, and 4) any firmware update procedures. Getting clear answers up front avoids surprises during installation.
We also recommend asking about return policies and warranty terms in case the unit arrives damaged or defective.
Frequently asked questions (FAQ)
We compiled a short FAQ to answer typical queries we expect for this type of product.
Q: Can this BMS be used with a battery pack I already have assembled?
A: Yes, provided the pack’s series count matches the BMS S rating and the BMS current rating meets or exceeds your expected loads. You must connect the sense wires in order and verify cell voltages before first use.
Q: How long does active balancing take?
A: That depends on the initial imbalance and the balance current. With 0.6A–2A balance current, correcting a few hundred millivolts may take several hours to a few charge cycles.
Q: Does the app allow changing charge/discharge thresholds?
A: The JK App generally allows configuration of some protection thresholds, but exact options depend on firmware. Check the manual or app settings for available parameters.
Q: Is the BMS waterproof or suitable for outdoor mounting?
A: Most BMS boards are not fully waterproof and should be installed in a sealed enclosure if used outdoors. Confirm the degree of protection with the seller.
We recommend keeping this FAQ handy during installation for quick reference.
Final verdict
We feel that the JK Smart BMS Active Balance series offers a compelling set of features for builders who want active balancing, Bluetooth monitoring, and a broad selection of S counts and current ratings. The JK app adds convenience for monitoring, and the protection features are typical of a modern BMS.
We advise careful model selection, attention to wiring and installation, and realistic expectations regarding active balance speed. When used properly in the right configuration, this BMS can significantly improve pack longevity and usability compared to passive-only systems.
Recommendation summary
We recommend the product for DIYers and small system integrators looking for an active-balancing BMS with app monitoring, provided they confirm the exact model specs and have the skills to wire and commission a multi-cell battery safely. For critical or commercial installations, consider consulting a qualified battery systems professional to ensure compliance and safe integration.
We hope this detailed review helps us and others make an informed decision about whether the JK Smart BMS JK BMS Active Balance BMS 4S 8S 12S 13S 14S 16S 17S 20S 24S Smart BMS 60A 80A 100A 150A 200A 600A Lifepo4 Li-Ion Lto Battery BMS Battery Equalizer (Color : B2A20S20P, Size : BMS) is right for our project.
