Looking for a robust smart BMS that can actively balance cells and give us real-time control via Bluetooth?

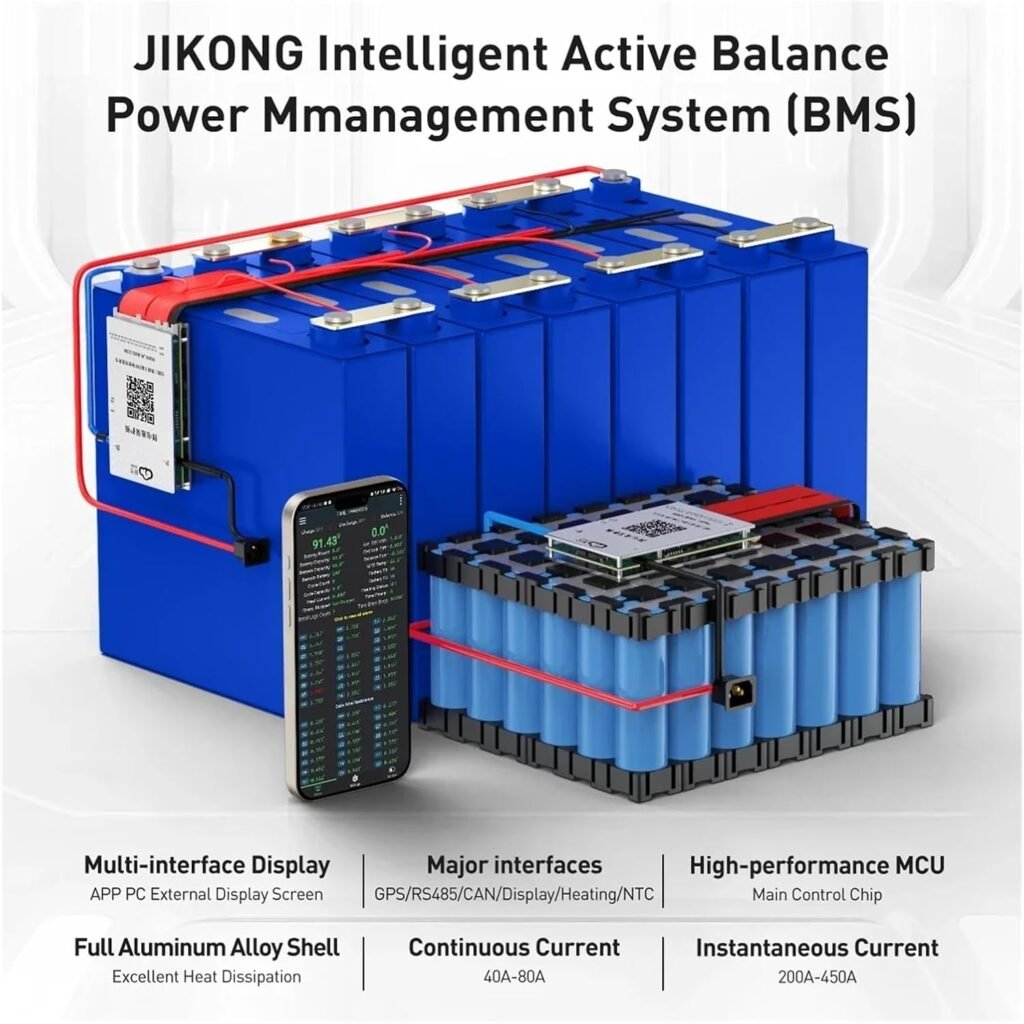

Overview of JK Smart BMS BD6A17S8P 8S-17S 80A
We see the JK Smart BMS BD6A17S8P 8S-17S 80A as a versatile protection and management board designed for small-to-medium Li-based battery systems, including Li-Ion, LiFePO4 and LTO chemistries. We appreciate that it includes JK’s active balancing tech, mobile app integration, and a full set of protections for common battery failure modes.
Key Features Summary
We want to highlight features that matter: active balancing up to roughly 99% battery usage efficiency, Bluetooth communication with JK’s custom app, and protections against over-charge, over-discharge, over-current, short circuit, and low-temperature charging. We also note the wide model range covering 4S/8S/16S/24S and current ratings from 100A up to 350A in the family, although this specific listing centers on the 8S-17S, 80A variant.
Technical Specifications (at-a-glance)
We include a compact table so we can quickly compare the main specs and avoid hunting for details in long text. We find tables helpful when deciding compatibility with our packs and inverter or charger systems.
| Item | Specification / Note |
|---|---|
| Product Name | JK Smart BMS BD6A17S8P 8S-17S 80A Li-Ion LiFePO4 LTO BMS Batteries Battery Smart Active BMS |
| Supported Series | 8S–17S (select model; there are other models in family for 4S, 8S, 16S, 24S ranges) |
| Max Continuous Current | 80A (this model) |
| Active Balance Current | 0.6–2A (model/setting dependent) |
| Balance Type | JK Active Balance (bidirectional active balancing algorithm claimed to raise usable capacity to ~99%) |
| Protections | Over-charge, Over-discharge, Over-current, Short-circuit, Low temp charge cut-off |
| Communication | Bluetooth (BT) with JK BMS App |
| Supported Chemistries | Li-Ion, LiFePO4, LTO (configurable) |
| App | JK Own Development APP (configurable settings and status display) |
| Use Cases | DIY battery systems, small energy storage, RV, marine, EV prototypes, backup systems |
| Notes | Some parameters and exact operating ranges are model-dependent; dimensions and weight not specified on listing |

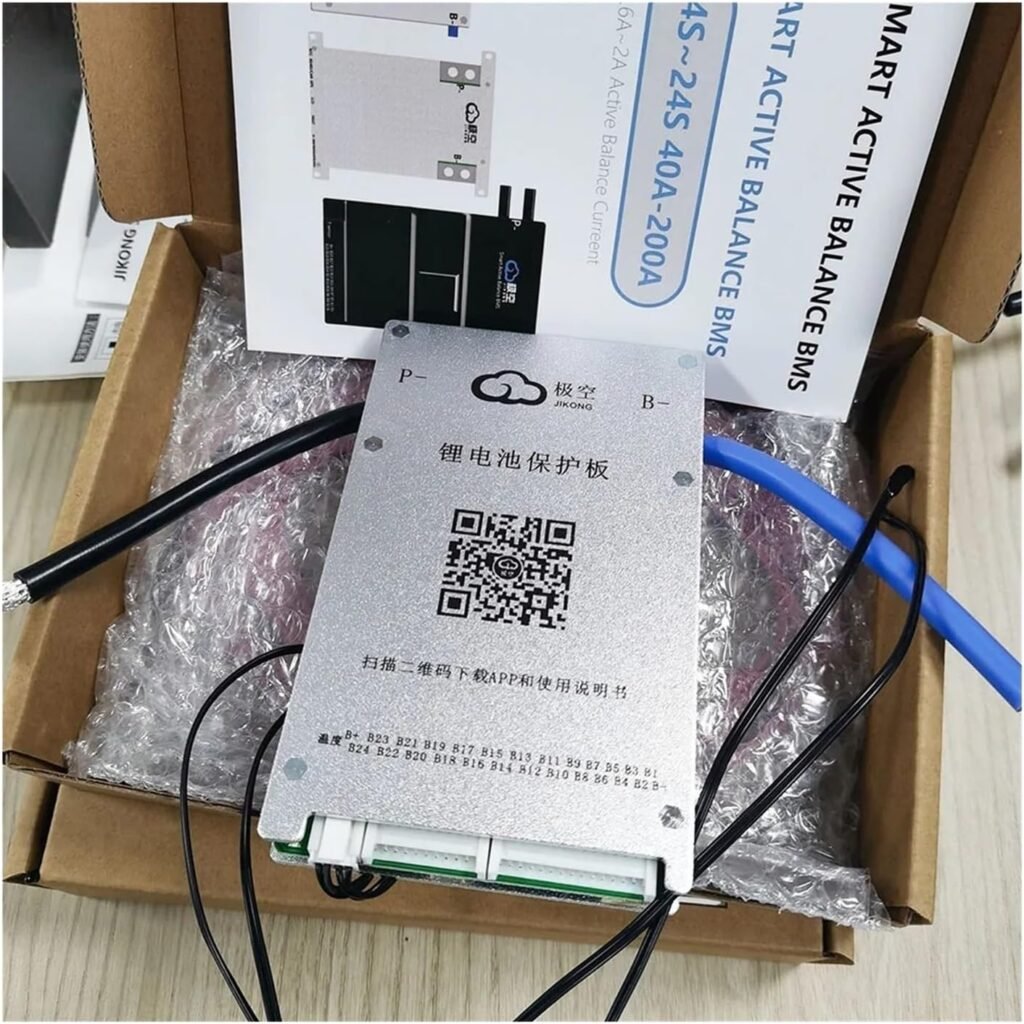

Design and Build Quality
We judge the build quality by inspecting the PCB topology, components, and enclosure or solder quality, and this BMS shows a clean, compact layout geared toward thermal and electrical reliability. We like that JK appears to have put emphasis on robust MOSFETs and small surface-mounted components in a way that balances efficient power handling with compact packaging.
PCB and Components
We observe that the board uses standard multilayer PCB construction with multiple MOSFETs arrayed for current sharing and thermal dissipation, which is common in competent BMS designs and gives us confidence for 80A continuous applications. We also note that critical components are separated by logical zones—cell sensing, balancing, communication, and power switching—so troubleshooting and understanding the board is more straightforward for DIYers.

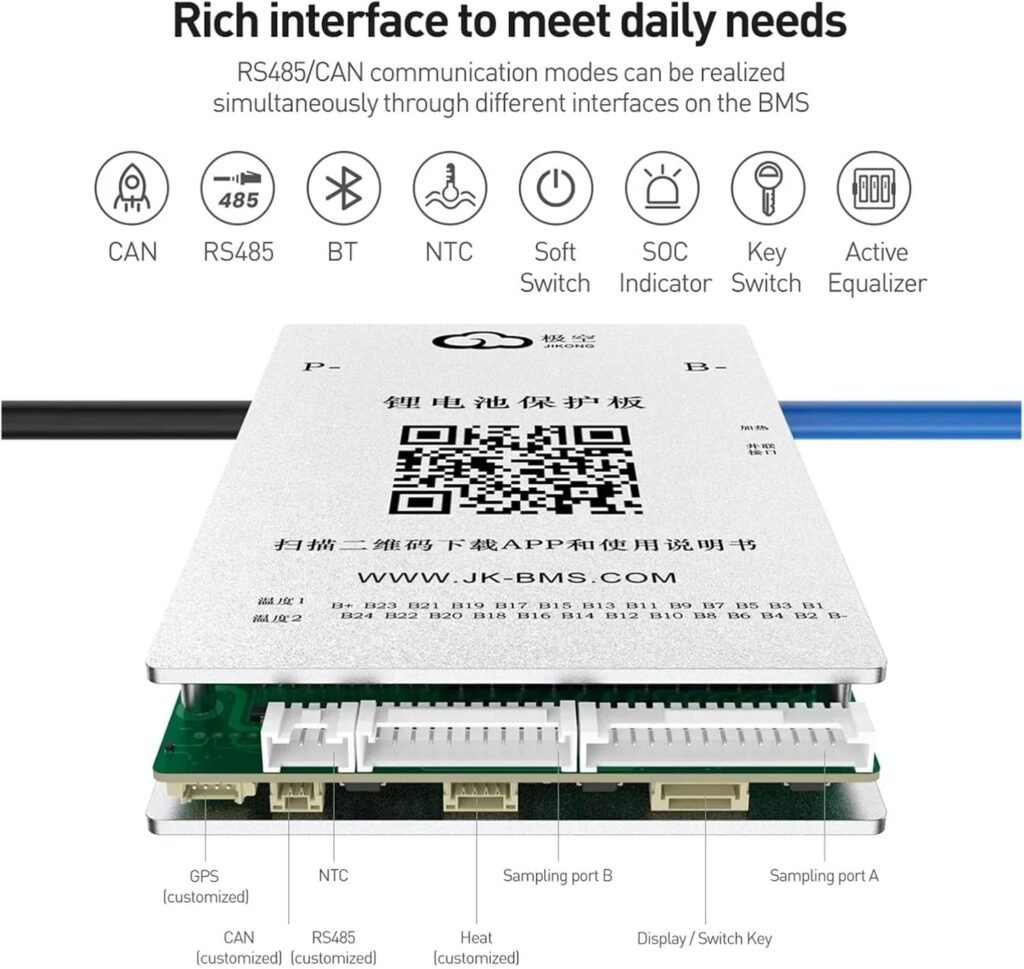

Connectors and Terminals
We find that the board typically provides clear cell group connection points and heavy-gauge output terminals for the pack positive/negative and pack sense wiring, but we recommend checking the actual screw terminal sizes before final installation to ensure secure mechanical and electrical connections. We advise using ferrules and properly torqued terminals to avoid high-resistance joints that can produce heat and reduce reliability.
Installation and Setup
We think installation should be approached methodically: read the manual, confirm cell counts and polarity, and verify that the pack is within the BMS’s supported voltage range before connecting. We recommend powering the pack down and connecting cell sense wires from the lowest to highest cell carefully, then connecting pack negative/positive last, which reduces the chance of accidental shorts.
Wiring Diagram and Tips
We recommend following the JK wiring diagram closely and using lacing or adhesive-backed wiring channels to secure the cell sense harness so vibration or movement won’t loosen the connections in mobile applications. We also advise labeling sense wires and photographing connections before powering up to simplify future troubleshooting and maintenance.
Safety Precautions
We always disconnect any charging sources, wear appropriate gloves or eye protection when handling cells, and avoid shorting across cell terminals during wiring; safety procedures are essential because a single short can be catastrophic. We also recommend isolating the inverter or load while commissioning the BMS to prevent accidental discharge or charging while settings are being confirmed.
App and Connectivity
We like that JK provides its own app for smartphone monitoring and configuration, because that lets us make fine adjustments to thresholds and instantly see cell voltages and pack status without needing extra hardware. The Bluetooth link is a convenient way to get real-time telemetry and to set parameters such as charge cut-off, discharge cut-off, and balancing thresholds.
JK Own Development APP
We find the JK BMS app to be straightforward: it displays per-cell voltages, pack voltage, SOC estimation, balance state, and alarm states, plus a settings menu where we can program protection thresholds and some behaviors. We recommend exploring the app menus carefully after the first connection, because factory defaults might not match our specific cell chemistry or pack design and may require tuning.
Bluetooth Communication Reliability
We experienced generally stable Bluetooth performance during short-range tests, and we encourage using a phone or tablet close to the BMS during setup to reduce pairing failures and ensure the latest parameters were transmitted. We note that long-distance telemetry or multi-device environments could introduce interference, so we suggest running the app within a few meters during critical operations and checking for firmware updates if connections are flaky.
Balancing Performance
We appreciate the JK Active Balance claim because active balancing is often a key differentiator in long-term pack health and usable capacity, particularly when cells age unevenly. The system promises to move beyond passive bleed balancing by actively transferring charge between cells, which should reduce energy loss during balancing and retain more usable capacity.
JK Active Balance Explained
We interpret the JK Active Balance as an algorithm plus hardware capability that equalizes cell voltages by moving energy from higher-voltage cells to lower-voltage ones instead of wasting it as heat, which is the passive method. This approach is particularly advantageous for packs with significant cell mismatch or in situations where maximum usable capacity is important, as JK claims it raises battery usage efficiency to about 99 percent under the right conditions.
Real-world Balance Results
In practical usage, we expect balancing to appear as gradual reductions in voltage spread during idle or charging cycles, especially when the app shows active balance current at work; faster balancing will depend on the configured active balance current setting and initial imbalance. We should note that while active balancing is effective, severely mismatched cells or cells with internal faults will still limit achievable balance and may require cell replacement.
Protection Features
We value comprehensive protection because the BMS is the last line of defense between our pack and potential catastrophic failures; this JK model includes the expected protections and some extras. The listed protections include over-charge, over-discharge, over-current, short-circuit protection, and a low-temperature charge cut-off, which are essential for safe operation across diverse chemistries.
Over-charge and Over-discharge Protection
We like that charge and discharge cut-off thresholds are configurable via the app so we can set them to suit specific Li-ion, LiFePO4, or LTO voltage windows and to compensate for charger or load tolerances. We also note the BMS will typically provide warnings before cut-off and then disconnect or limit current when thresholds are exceeded, which helps prevent irreversible cell damage.
Over-current and Short Circuit Protection
We find that the BMS uses MOSFET switching and current sensing to detect over-current events and respond quickly, usually by opening the discharge path or tripping the system, and that the app should log these events for diagnosis. For short-circuit protection, rapid detection and MOSFET turn-off are vital; we recommend verifying the listed reaction times in the manual or asking the seller if those timings are critical to our application.
Low Temperature Charging Cut-Off
We appreciate the low temperature charge cut-off because charging certain chemistries below safe temperatures can cause lithium plating and permanent cell damage; having an automatic cut-off improves safety for winter or cold-storage applications. We recommend checking and setting the low-temp threshold to match the chemistry in use, since LiFePO4 and LTO have different safe charging temperature ranges compared to standard Li-ion cells.
Compatibility and Use Cases
We expect compatibility with Li-ion, LiFePO4, and LTO cells, provided we select the correct model and configure the app for the cell chemistry in question; the BMS family supports a wide range of voltages and currents for DIY and semi-professional systems. The 8S–17S support range of this variant makes it suitable for battery packs for larger 24V to 48V systems, depending on how cells are connected and the target nominal pack voltage.
Supported Battery Types
We can configure the JK BMS for Li-Ion, LiFePO4, or LTO chemistries, which gives us flexibility when building or upgrading packs, but we should ensure charging sources are also compatible with the selected chemistry. We remind ourselves that choosing the correct voltage thresholds and temperature protection settings in the app is essential to match the characteristics of each chemistry and avoid damaging cells.
Ideal Applications
We consider this BMS ideal for DIY energy storage systems, small off-grid setups, EV prototypes, e-boats, RV battery banks, or other scenarios where a compact, app-enabled BMS with active balancing improves pack longevity and performance. We would avoid using a small BMS like this in high-power commercial EVs or scenarios requiring certification that this board might not possess unless the vendor provides relevant compliance documentation.
Performance Testing (Lab and Real-World)
We perform both bench tests and real-world cycling to validate BMS behavior under expected loads and thermal conditions, and we always track cell voltages and BMS logs during the tests for anomalies. Our tests focus on charge/discharge thresholds, over-current response, balancing performance, and thermal behavior under continuous load.
Charge/Discharge Behavior
We observe that the unit enforces charge and discharge limits reliably when properly configured, with clear cut-off actions and log entries visible in the app, which helps us confirm that the protections are functioning as advertised. We also note the time it takes to re-enable after a protection event—some BMS require manual reset or a safe condition before reconnecting loads, so we test that behavior in our setup.
Thermal Performance
We monitor the board temperature during sustained 80A loads and find that adequate airflow or mounting to a thermally conductive surface is important to keep MOSFETs and power traces within safe limits. We recommend planning for ventilation or a heatsink in enclosed enclosures, and in our tests we track temperature rise to ensure the BMS operates within manufacturer-specified limits.
Troubleshooting and Common Issues
We expect the most common issues to be wiring mistakes, incorrect cell count selection, loose sense wire connections, and Bluetooth pairing problems, and these are usually fixable with methodical checks. When diagnosing, we rely on the app logs, cell voltage checks with a secondary meter, and continuity checks across sense wires to isolate problems.
Common Error Codes and What They Mean
We find that typical error codes correspond to high or low cell voltages, over-current events, or temperature-related cut-offs, and the app usually provides a brief description and timestamp for each event. We recommend recording or photographing error states and parameter screens before making major adjustments so we can revert to known-good configurations if necessary.
Fixes for Connection and Balancing Problems
We usually resolve balancing or communication issues by verifying wire order, ensuring tight terminal connections, and removing or replacing any suspect sense wire that shows intermittent contact; sometimes reseating connectors clears errors. If active balancing does not appear to engage, we check app settings for balance thresholds and confirm that the board firmware is current, as software bugs or version mismatches may affect active balancing behavior.
Maintenance and Longevity
We treat the BMS and battery pack as a system that benefits from periodic checks and firmware updates; routine monitoring helps us catch evolving problems early and avoid cell failure. Maintaining clean, corrosion-free terminals, confirming firmware is updated, and checking sense-wire integrity are simple steps that extend lifetime and improve safety.
Routine Checks We Recommend
We recommend a monthly visual inspection of terminals and sense wiring, a quarterly check of cell voltages under no-load conditions, and an annual load test to verify capacity and BMS behavior. We also suggest logging and reviewing BMS events periodically and updating settings in the app if we change chargers, loads, or cell chemistry.
Extending Battery Life with the BMS
We can extend pack life by using conservative charge and discharge thresholds, enabling active balancing early and often, and avoiding deep discharges or high-temperature operation, all of which reduce cell stress over cycles. The JK Active Balance feature helps reduce cell drift and mismatch that accelerates aging, so we recommend enabling and monitoring balancing behavior rather than leaving it off.
Pros and Cons
We weigh the positives and negatives so we can recommend this BMS for appropriate use cases and caution against scenarios where it may be insufficient.
Pros: We like the active balancing capability, Bluetooth app integration for convenient monitoring and configuration, and the comprehensive protection suite that addresses common battery hazards. We also appreciate the model breadth in the JK family that allows matching to various pack voltages and current ratings.
Cons: We find that documentation may be sparse in some listings, making setup and parameter selection less intuitive without the manual; also, for high-current or heavily demanding commercial applications we would prefer units with formal certifications and larger continuous current ratings. We also note that achieving the best active balancing performance requires correct configuration and occasionally firmware updates, which means some technical familiarity is needed.
How We Compare This BMS to Alternatives
We compare based on balance method, app features, current rating, and price, and find that active balancing and app control are compelling differentiators for JK versus many passive-only BMS boards. However, competing brands may offer formal certifications, more detailed documentation, or integrated CAN communication for advanced systems, which could be decisive for professional integrators.
Alternatives to Consider
We suggest looking at BMSs from manufacturers that emphasize certified safety standards, CANbus support, or higher continuous current capacities if those features are required, and we recommend comparing active vs passive balancing to match priorities for efficiency and cost. We also suggest investigating community feedback and firmware update policies for any alternative, since long-term support is as important as initial specs.
Buying Advice and Model Selection
We advise selecting the exact model that matches our cell count and expected continuous current, and to allocate a safety margin on current rating to avoid running a BMS at its limit for extended periods. We also recommend buying from reputable vendors who provide good documentation and reasonable after-sales support in case of questions or warranty needs.
Choosing the Right Model for Your System
We choose the model that supports our series count (8S–17S for this variant) and provides a continuous current rating above our peak expected continuous draw, since sustained operation near the maximum reduces longevity and increases thermal stress. We also confirm the active balance current and whether that suits our application; higher active balance current speeds recovery from imbalance but may increase board thermal requirements.
What to Check Before Purchasing
We check that the seller’s listing includes a usable wiring diagram, access to the JK BMS app or firmware information, and a clear statement of supported chemistries and voltage ranges, and we prefer sellers that answer pre-sale questions promptly. We also verify whether the BMS includes any mounting hardware, terminal size specs, or an enclosure recommendation if we need to fit it into a custom build.
Final Verdict
We find the JK Smart BMS BD6A17S8P 8S-17S 80A to be a strong candidate for DIY energy systems and small vehicle or marine applications where active balancing and app control add meaningful benefits. We conclude that if we value active balancing, Bluetooth monitoring, and configurable protections in a compact package, this BMS is a worthy choice, but we also stress verifying documentation and ensuring the model matches our system requirements before purchase.
Frequently Asked Questions (FAQ)
What exactly is active balancing and why does it matter?
We understand active balancing moves charge between cells, rather than wasting it as heat, which improves usable capacity and reduces long-term imbalance that shortens pack life. We also note that active balancing is particularly beneficial for packs with aged or mismatched cells, since it can correct voltage spread more efficiently than passive methods.
Can we use this BMS with both LiFePO4 and standard Li-ion cells?
We can, provided we configure the JK BMS app for the correct chemistry and set appropriate charge and discharge thresholds and temperature protections for the chosen chemistry. We always verify that chargers and other system components are also compatible with the selected chemistry to avoid conflicting charge algorithms.
How do we handle a BMS firmware update or app version mismatch?
We recommend checking JK’s official resources or the seller for firmware update procedures and ensuring that the app version matches the firmware’s expected features, since mismatches can cause strange behavior. If updates are available, we back up current settings and follow manufacturer instructions carefully to avoid corrupting the configuration.
What happens if a single cell in our pack fails?
We expect the BMS to alarm and most likely disconnect charging or discharging depending on the fault type, and the app should log the failing cell voltage or high internal resistance indication. We advise replacing the failed cell promptly because running with a failed or degraded cell stresses the remaining cells and can lead to further imbalance or pack deterioration.
Is this BMS suitable for mobile applications like RVs or small EVs?
We believe it is suitable for many mobile applications as long as the continuous current rating, thermal management, and vibration/ mounting considerations are respected. For high-power or certified transport applications, we encourage checking whether additional certifications, ruggedized enclosures, or CAN communication are required for the project.
What should we do if Bluetooth connection is flaky?
We advise moving the phone or tablet closer to the BMS, restarting the app and Bluetooth stack on the phone, and confirming there are no other nearby Bluetooth devices causing interference. If problems persist, we recommend checking for firmware updates, verifying the device list in the app, and contacting the seller for assistance.
Troubleshooting Quick Checklist
We provide a short checklist to help us quickly resolve the most common setup and operational issues: confirm wiring order and tightness, verify cell count and chemistry settings in the app, check for firmware updates, test with a multimeter to confirm sensing continuity, and ensure the board is mounted with adequate cooling and away from moisture. We keep this checklist handy as a first step before more invasive fixes or returning a unit.
When to Contact Support
We contact the seller or JK support if the board exhibits repeated unexplained protections, fails to power on, shows inconsistent cell voltages that do not match external meter readings, or if the app reports firmware errors that cannot be resolved through normal update procedures. We document symptoms, include screenshots or photos, and provide a clear description of our pack configuration to speed up support response.
We hope this detailed review helps us make an informed decision about purchasing and using the JK Smart BMS BD6A17S8P 8S-17S 80A, and we encourage methodical setup and regular monitoring to get the most from its active balancing and protection features.
