Have we been searching for a single BMS that can actively balance cells, protect Li-ion and LiFePO4 chemistries, and give us Bluetooth monitoring for packs from 12V to 48V?
Product overview
We looked closely at the KuRkur DALY Smart Lifepo4 BMS 1A Smart Active Balancer 3S 4S 12V 7S 24V 10S 36V 13S 16S 48V 80A 100A 120A 150A 200A 300A Liion Battery BT,Lifepo4 12s 36v bt 1a,150A and found a feature set aimed at hobbyists, DIYers, and small to medium battery-system builders. We appreciate that the unit combines active balancing, multiple cell-count support, protection functions, and Bluetooth telemetry in one package. We will break down what it does, how to install it, how it performs in typical scenarios, and where it fits compared with other options.
What the product aims to do
We understand that the product’s main goals are to:
- Keep series cells balanced using an active equalizer (1A stated equalization current).
- Protect packs from overcharge, overdischarge, overcurrent, and temperature extremes.
- Provide real-time monitoring via Bluetooth and give operators the data needed to manage packs safely. We note that the manufacturer mentions ongoing upgrades, so firmware and hardware revisions may alter small details over time.

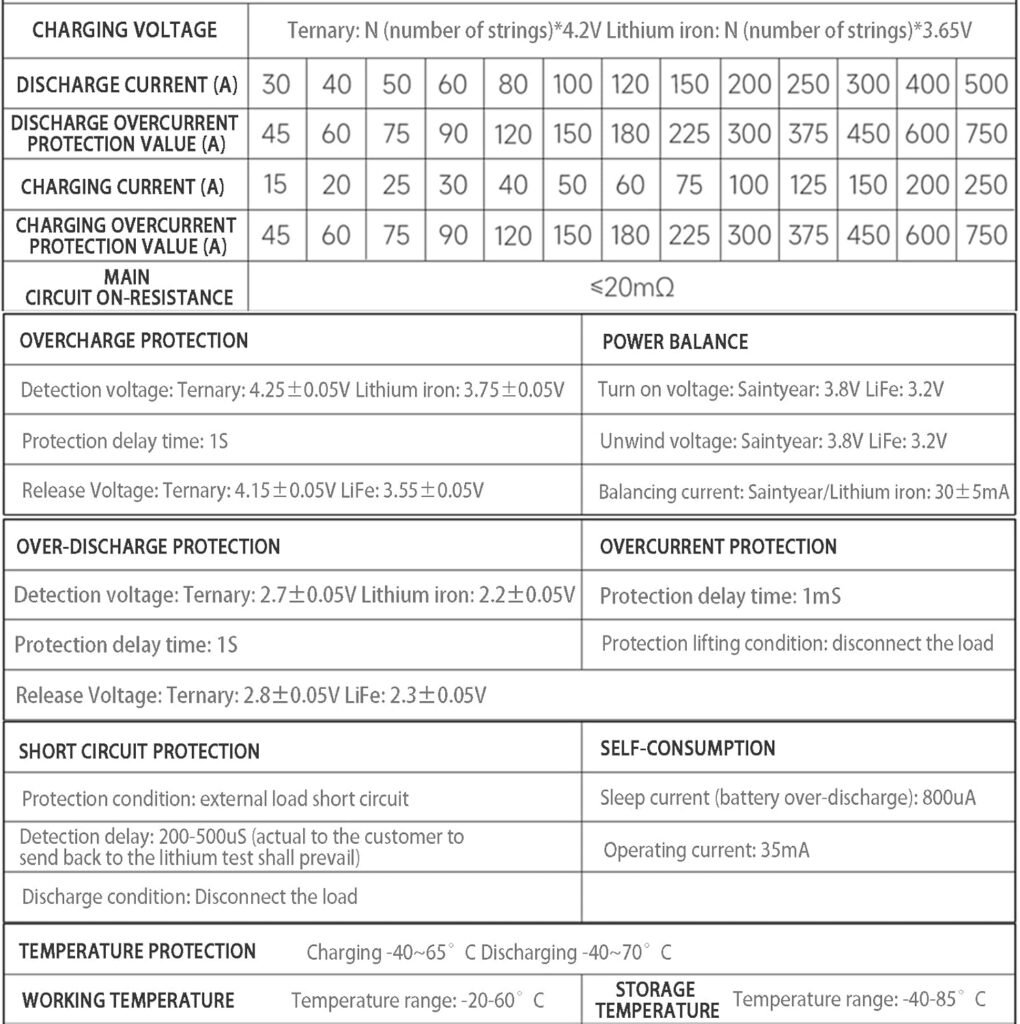

Key specifications and features
We list the most important attributes and thresholds so we can refer to them when planning systems and assessing compatibility.
| Item | Details |
|---|---|
| Supported chemistries | Li-ion (ternary/NMC/NCA), LiFePO4 |
| Cell counts supported | 3S, 4S, 7S, 10S, 13S, 16S (examples cover 12S / 36V etc — device family supports many series counts up to 16S) |
| Nominal voltages | 12V, 24V, 36V, 48V variants |
| Continuous current options | 80A, 100A, 120A, 150A, 200A, 300A (choose model to match load) |
| Active balancing current | 1A (smart active balancer) |
| Overcharge thresholds (approx.) | Li-ion: 4.25V per cell; LiFePO4: 3.75V per cell |
| Overdischarge thresholds (approx.) | Li-ion: 2.7V per cell; LiFePO4: 2.2V per cell |
| Temperature protection | Low temp cutoff: -20°C; High temp cutoff (discharge): +60°C |
| Standby equalization | Full-time standby — equalizer works when cell voltage triggers regardless of state |
| Monitoring | Bluetooth telemetry (2x Bluetooth devices included in package) |
| Package contents | 1x BMS, 1x NTC sensor, 1x balanced cable, 1x battery equalizer, 2x Bluetooth modules, B and P cables |
| Additional | BMS measures pack usage, protects against over-/under-voltage, balances the cells actively |
We find the table helps to quickly match model choice to system needs. We recommend verifying the exact model number when ordering since current ratings and cell-count configuration must match the intended battery.

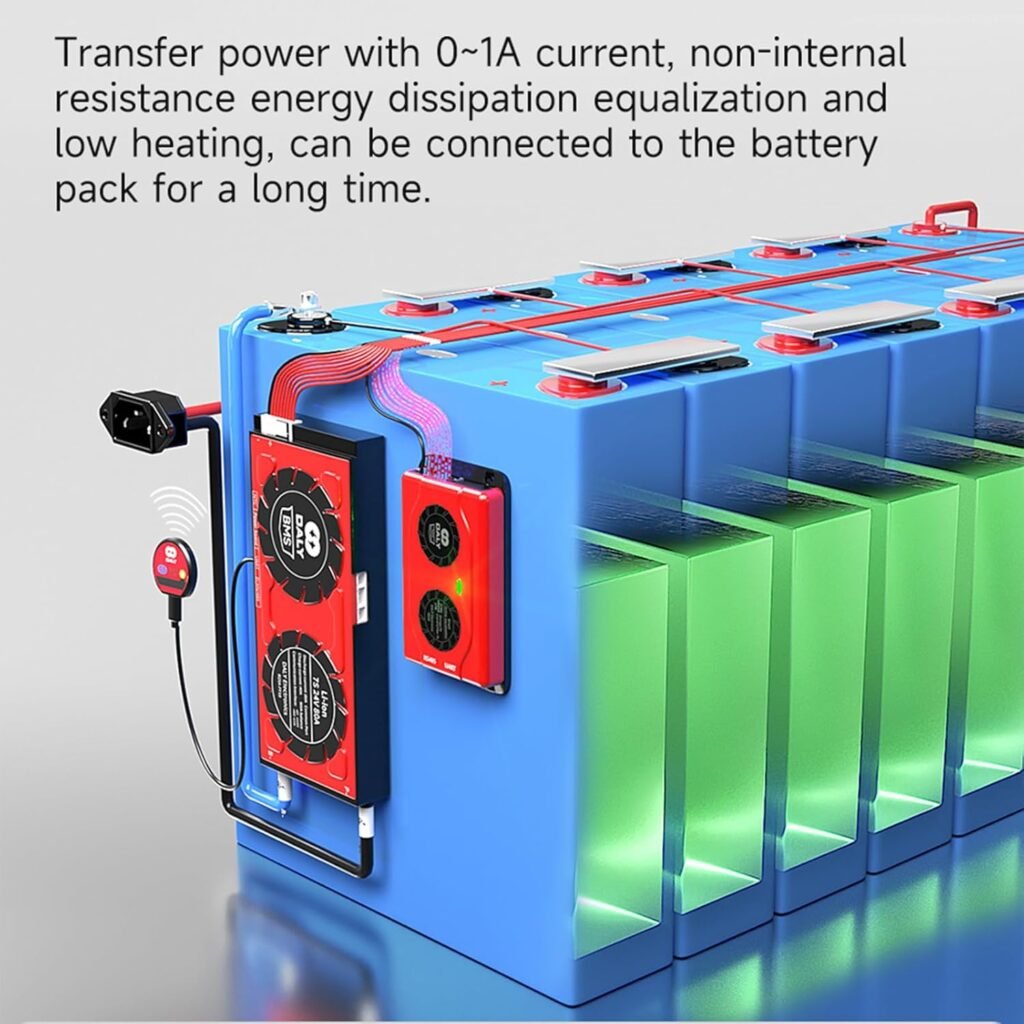

How the active balancing works
We want to clarify how the 1A active equalizer benefits multi-cell packs and what limits to expect.
Active vs passive balancing
We note that passive balancing shunts excess energy as heat while active balancing transfers energy from higher-voltage cells to lower-voltage cells, which is more efficient and preserves usable capacity. The KuRkur DALY BMS uses an active equalizer with up to 1A balancing current. This means it can move charge between cells rather than wasting it as heat.
What 1A means in practice
We estimate that with a 1A balancing rate, correcting a 100–200 mAh imbalance will take only a few hours under favorable conditions during charge cycles. For larger imbalances of several hundred mAh, balancing can take many hours or several charge cycles. We conclude that the 1A active balancer is very useful for routine cell rebalancing and for maintaining long-term pack health but is not a rapid equalizer for severely mismatched cells.
Battery protection and safety features
We focus on the protective functions and thresholds, which are critical for our system reliability.
Voltage protections
We note the stated thresholds:
- Ternary Li-ion: nominal 3.7V/cell, overcharge up to 4.25V, overdischarge 2.7V.
- LiFePO4: nominal 3.2V/cell, overcharge up to 3.75V, overdischarge 2.2V. We appreciate that the BMS provides tailored thresholds for chemistry selection and that it will protect packs from the most dangerous voltage extremes.
Temperature protections
We recognize the inclusion of an NTC temperature sensor in the package and the temperature cutoffs:
- Low-temperature protection at -20°C for charging prevention (to guard against lithium plating).
- High-temperature discharge protection at +60°C to avoid thermal runaway or damage. We recommend placing the NTC sensor near the middle of the pack or on the warmest cell for accurate measurement.
Overcurrent and short-circuit protection
We explain that the BMS versions rated 80A–300A provide the continuous current rating the BMS will permit during normal operation. We expect the BMS to also include short-circuit or overcurrent trip mechanisms, either through electronic MOSFETs or an internal cutoff strategy, though exact trip curves may vary by firmware/hardware revision.
Full-time monitoring and stand-by equalization
We like that the BMS is described as “full-time automatic monitoring” and that the active equalizer operates regardless of the battery state when a cell voltage imbalance triggers it.
Always-on protection
We understand that the BMS continuously measures cell voltages, pack current, and temperature, acting proactively when thresholds are crossed. That continuous monitoring reduces the chance that a fault condition can be missed between charge/discharge cycles.
Active equalization behavior
We note that equalization is stated to be unconstrained by battery status: whether charged, discharged, static, or dormant, once the cell voltage triggers active equalization, the equalizer will run until voltages are equalized. We find this useful for long-term pack health, especially for packs that sit for periods without cycling.

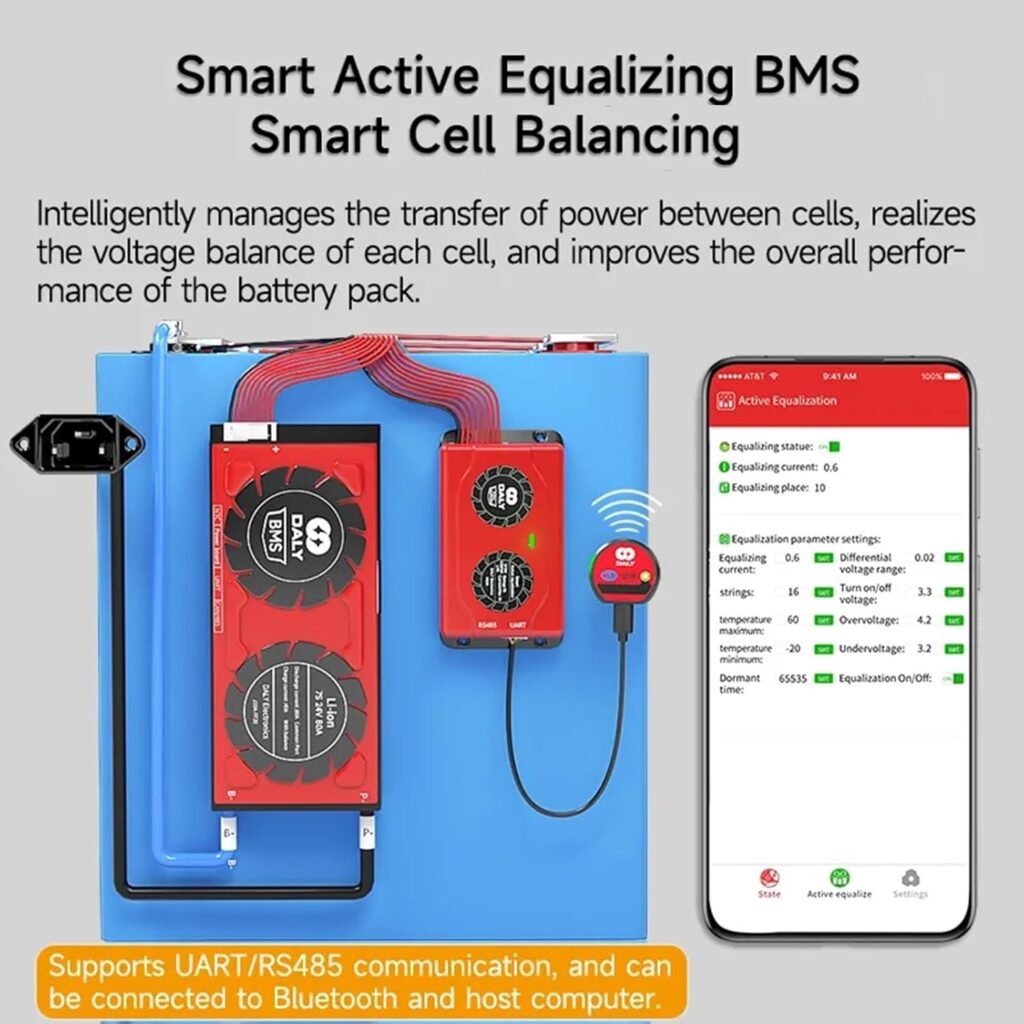

Bluetooth telemetry and app features
We outline what to expect from the Bluetooth modules included in the package and how they help.
Monitoring remotely
We appreciate that two Bluetooth modules are included, which may help with redundancy or allow monitoring from multiple devices. Bluetooth allows us to read cell voltages, pack voltage, current, state of charge estimates, temperature, and alarms with a smartphone or tablet. We suggest checking the app name and compatibility with our phone OS before assuming flawless connectivity.
Typical app functions
We expect the app to display per-cell voltages, pack voltage, real-time current, temperature, logging features, and alarm notifications. We also recommend checking whether firmware updates can be done over Bluetooth and confirming whether the app supports configuring the charge/discharge thresholds for customization.

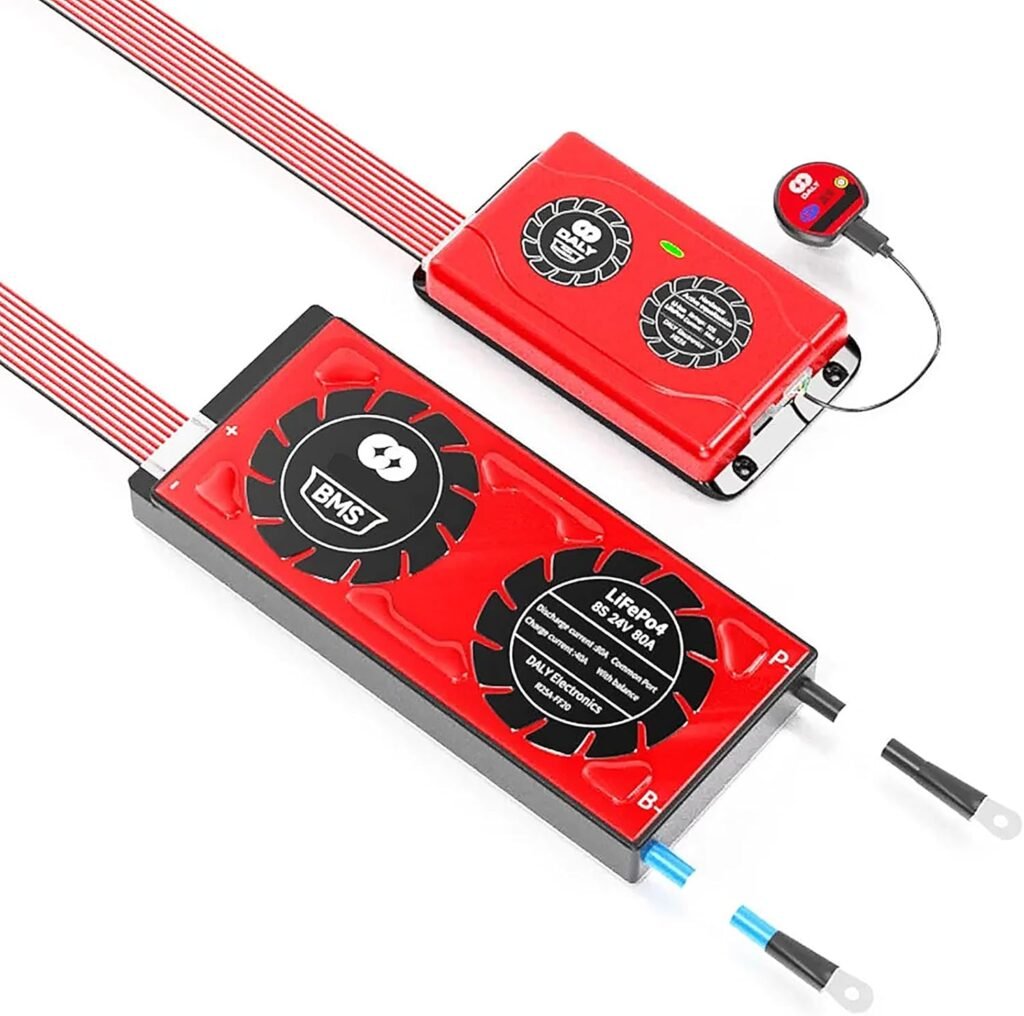

Physical design, connectors, and package contents
We describe what comes in the package and how the BMS physically integrates with battery packs.
Standard inclusions
We note the package contains:
- 1x BMS module
- 1x NTC temperature sensor
- 1x balance cable (for cell voltage sensing)
- 2x Bluetooth modules
- 1x battery equalizer (if presented as an external equalizer in some packages)
- B and P cables for main pack connections We appreciate that the package includes balance harness and temperature sensor, which saves sourcing parts separately.
Connectors and wiring
We find the BMS typically has clearly labeled B- and P- terminals for battery negative and pack negative/positive connection points, and a multi-pin balance connector that matches the cell count. We stress the importance of verifying the balance connector pinout and orientation before connecting, as miswiring can damage the BMS and cells.
Installation and wiring guide
We provide step-by-step notes to help us get a safe and correct installation.
Pre-install checks
We recommend that we:
- Confirm the BMS model matches the battery cell count and continuous current requirements.
- Verify the chemistry setting (Li-ion vs LiFePO4) in the BMS or app so protection thresholds are correct.
- Check the balance connector pinout and ensure the harness corresponds to the cell count. We advise keeping documentation and photos of wiring as a reference.
Wiring sequence
We advise the following safe sequence for most installations:
- Before connecting the BMS, fully measure individual cell voltages to ensure no single cell is grossly out of range.
- Connect the balance harness to the cells with the pack at low current or disconnected from loads/chargers.
- Attach the B- and P- main cables according to the BMS wiring diagram (B- to battery negative, P- for pack output/load negative if applicable).
- Attach the NTC temperature sensor to the selected cell or the pack center.
- Power the system and check cell voltages and BMS status via Bluetooth before charging or loading heavily. We recommend using fuses and proper gauge wiring sized to match the BMS current rating.
Safety notes during installation
We remind ourselves to:
- Wear eye protection and follow safe battery-handling procedures.
- Ensure no metallic tools short the pack terminals.
- Use insulated connectors and tighten terminals to manufacturer torque recommendations. We emphasize that improper wiring can lead to fire or catastrophic battery damage.
Performance expectations
We analyze what real-world performance we should expect from the BMS.
Balancing speed and capacity recovery
We reiterate that 1A equalization will correct modest imbalances over one or two charge cycles, and larger imbalances may require longer corrective time or active charging techniques. We expect the active equalizer to sustain balancing during float and charge states effectively.
Handling continuous and peak currents
We point out that the model selection matters: an 80A BMS is suitable for moderate loads and smaller EV/heavy-cycle systems, while 150A–300A models suit high-current traction or inverter systems. We recommend selecting a BMS with a continuous current rating at least equal to the expected sustained load and higher than the typical peak current to provide a safety margin.
Thermal management
We note that higher-current models will dissipate more heat in the MOSFETs and balancing circuits. Adequate airflow or heat sinking may be required in enclosed installations to ensure the BMS’s internal temperature sensor reading is representative and to prevent thermal cutoffs during heavy use.
Real-world use cases and compatibility
We outline scenarios where this BMS fits well and where it may be less ideal.
Good matches
We find the KuRkur DALY BMS suitable for:
- Solar battery banks that need long-term balancing and monitoring.
- DIY electric bicycles, scooters, and small EVs when matched to the correct current rating.
- Marine and RV battery systems where LiFePO4 reliability and monitoring are valued.
- Home energy storage and UPS systems where cell balancing and safety are priorities. We appreciate its flexibility across 3S–16S configurations (common variants), making it useful for many nominal voltages.
Limitations and cautions
We observe that:
- The 1A balancer is great for gradual correction but not for packs with severe imbalance due to mismatched cell capacity or damage.
- High current users must ensure wiring, fuses, and connectors match the BMS rating; otherwise, the BMS rating becomes irrelevant.
- Users planning regenerative braking or highly dynamic loads should confirm the BMS’s charge/discharge current switching behavior and peak handling. We recommend heavy-duty installations consider external contactors for added safety on very high-current systems.
Comparison with similar BMS products
We compare general strengths and trade-offs compared with other BMS options.
Strengths of this KuRkur DALY model
We like the combined offering of active balancing, Bluetooth telemetry, wide chemistry support, and multiple continuous current models in one product family. The inclusion of balance harness, NTC, and Bluetooth in the package reduces setup time.
What competitors may offer
We note some competitors provide higher equalization currents (several amps) or integrated CANbus, more sophisticated logging, or hardware contactors and external shunts. Some industrial BMS units offer cell-level diagnostics and replacement modules for maintenance, which may be overkill for hobby use but valuable for larger deployments.
When to choose a different BMS
We suggest considering other models when:
- Faster balancing (more than 1A) is required to rescue mismatched packs quickly.
- System integration requires CANbus or advanced automation protocols.
- Professional packs with modular cell replacement strategies are desired. We find that for most DIY and small commercial uses, the DALY family offers a strong balance of features and price.
Testing protocol we recommend
We outline steps we would use to validate and commission the BMS in our own setups.
Initial validation
We propose:
- Verify all cells individually with a calibrated meter before connecting the BMS.
- Power up the BMS and connect via Bluetooth to check for cell readings and firmware version.
- Charge the pack under supervision and observe the balancing behavior when top-of-charge is reached. We recommend keeping the first few cycles under observation to verify thresholds and equalization performance.
Stress testing
We advise:
- Applying a controlled load near the continuous current rating for a limited time while monitoring temperatures and voltage drops.
- Performing a controlled short-duration peak test if the BMS supports peak handling, ensuring fuses or other protection are in place. We caution against prolonged testing without appropriate cooling for high-current models.
Long-term monitoring
We suggest logging data over dozens of cycles to confirm that cell voltage drift is minimal and that the balancer prevents progressive divergence over months. Regular monitoring ensures we catch cells that begin to fail or degrade.
Installation checklist (quick reference)
We create a short checklist that we can follow when installing the BMS.
- Confirm BMS cell-count and current rating match the pack.
- Inspect cells for physical damage and measure voltages individually.
- Connect balance harness to cells carefully, verifying pin orientation.
- Mount NTC sensor near the warmest cell; route sensor wire away from heat sources.
- Connect main B- and P- terminals, confirm polarity.
- Power on and pair Bluetooth; confirm per-cell voltages and alarms.
- Charge under supervision and verify balancing operation.
- Install appropriate fuses or breakers sized to the system.
We find that a checklist reduces mistakes and helps prevent damage.
Pros and cons
We summarize the main advantages and the limitations as we see them.
Pros
- Active 1A balancing improves long-term pack consistency versus passive-only systems.
- Chemistry support for both Li-ion and LiFePO4 with relevant thresholds.
- Bluetooth telemetry with included modules for monitoring and alerts.
- Wide selection of continuous current ratings to match different load profiles.
- Package includes balance cable, NTC, Bluetooth, equalizer, and B/P cables, reducing extra purchases.
Cons
- 1A balancing is slower than higher-current active equalizers for severely unbalanced packs.
- Exact trip curves, firmware features, and app capabilities may vary between revisions; documentation may not always be fully exhaustive.
- High-current models will need careful thermal management in enclosed installations. We believe the positives outweigh the negatives for many applications, but selection must be careful.
Troubleshooting and maintenance
We list common issues and recommended remedies based on typical BMS behavior.
No Bluetooth or missing data
If Bluetooth doesn’t connect or cell data is missing, we would:
- Verify the Bluetooth module is properly connected and powered.
- Restart the phone and BMS, and check app permissions and Bluetooth pairing list.
- Confirm the app supports the specific firmware version. We encourage keeping spare Bluetooth modules if operating in remote or critical systems.
Balancer not engaging
If the active equalizer does not trigger:
- Verify the pack has reached the voltage threshold where equalization should occur.
- Check that the balance harness has correct continuity and pin connections.
- Confirm via the app that equalizer status is enabled and that the model’s equalizer is designed to run on the selected chemistry. We also recommend verifying the BMS firmware revision and contacting support if unexpected behavior persists.
Unexpected trips or shutdowns
When the BMS cuts power or trips:
- Inspect for overcurrent events exceeding rating, short circuits, or thermal cutoffs.
- Check wiring for integrity, proper gauge, and secure terminations.
- Confirm ambient conditions; overheating in enclosures is a frequent cause of trips. We recommend logging the BMS alarms to diagnose recurrent faults.
Frequently asked questions (FAQ)
We address common concerns we anticipate and provide clear answers.
Q: Can we use this BMS with both Li-ion and LiFePO4 cells? A: Yes, the unit supports both chemistries with differing voltage thresholds. We must ensure the BMS chemistry setting is correct and the selected cell-count model fits the pack.
Q: How long will balancing take? A: Balancing time depends on the magnitude of imbalance and pack capacity. At 1A, correcting a small imbalance of 200–500 mAh may take a few hours or a couple of charge cycles. Larger imbalances require proportionally longer.
Q: Do we need external contactors for high-current setups? A: For very high-current installations, external contactors or mechanical disconnects add a layer of safety and allow safer servicing. We recommend adding them for systems with currents near or above the BMS rating or where regenerative braking or complex charging is present.
Q: Is the Bluetooth secure? A: Bluetooth security depends on the app implementation and module. We suggest using phone-level Bluetooth pairing protections and not exposing telemetry to unknown devices in shared environments.
Q: What is included in the package? A: The package typically includes 1x BMS, 1x NTC temperature sensor, 1x balance cable, 2x Bluetooth modules, 1x battery equalizer, and B and P cables. We encourage verifying the package list at purchase as contents may vary by seller or revision.
Final verdict and recommendation
We believe the KuRkur DALY Smart Lifepo4 BMS 1A Smart Active Balancer family offers a compelling blend of active balancing, protection features, and Bluetooth monitoring for a wide range of DIY and small commercial battery applications. The 1A active equalizer is a practical choice for maintaining pack consistency over the long term, and the multiple current ratings allow us to match the BMS to our load needs.
We recommend this BMS when:
- We build or maintain packs where gradual cell drift is the likely issue and a reliable active equalizer is valuable.
- We require Bluetooth telemetry for monitoring and logging without investing in industrial-grade BMS systems.
- We want an all-in-one package that includes harnesses, NTC, and Bluetooth hardware to simplify setup.
We caution that for extremely high-current or mission-critical systems, we should verify detailed trip curves, consider additional fail-safes such as external contactors or redundant systems, and ensure cooling/ventilation for the BMS is adequate. We also recommend evaluating the app and firmware capabilities prior to large deployments.
If we plan carefully, match the model to our pack, and follow safe installation practices, we expect this BMS to be a useful and cost-effective core component of many battery systems.
