Are we considering the MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(40A) for our solar system and want a thorough, practical review?
Product Overview
We want to summarize what the MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(40A) brings to a solar setup. This unit promises MPPT tracking, charge and discharge control, high voltage PV input compatibility, and wide battery voltage support — all packaged to “Effectively protect the battery Improve the power generation efficiency of solar panels.” We will break down how well it accomplishes those claims and how it behaves in real-world installations.
Key Specifications
We will list the important specifications so we can quickly compare whether this controller fits our system requirements. Below we lay out the main electrical and mechanical parameters in a table to make the choices clearer.
| Specification | Details |
|---|---|
| Product Name | MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(40A) |
| MPPT Current Options | 50A, 60A, 80A (model-dependent) |
| Nominal Battery Voltages Supported | 12V, 24V, 48V, 60V, 72V, 96V |
| Max PV Input Voltage | 230VDC |
| Charge/Discharge Control | Bidirectional (charge + programmable discharge) |
| Battery Types Supported | LiFePO4, Lithium, Lead-Acid |
| Main Protections | Overcharge, Over-discharge, Overcurrent, Short-circuit, Reverse polarity, Overtemperature |
| Display/Interface | LCD / LED status indicators (model-dependent) |
| Cooling | Convection and/or forced cooling (fan on some models) |
| Recommended Ambient Temp | Typically -20°C to 60°C (check manual) |
| Dimensions & Weight | Model dependent — check product sheet |
| Additional Features | Programmable parameters, data logging (some models), RS485/communication options (some models) |
We will treat these specs as the baseline for our analysis and prioritize the MPPT performance, battery protection capabilities, and the 230VDC PV input, since those are central to the product description.
Main Features
We will outline the core features and what they mean for our system reliability and output. Each feature influences how the controller improves battery life and panel efficiency.

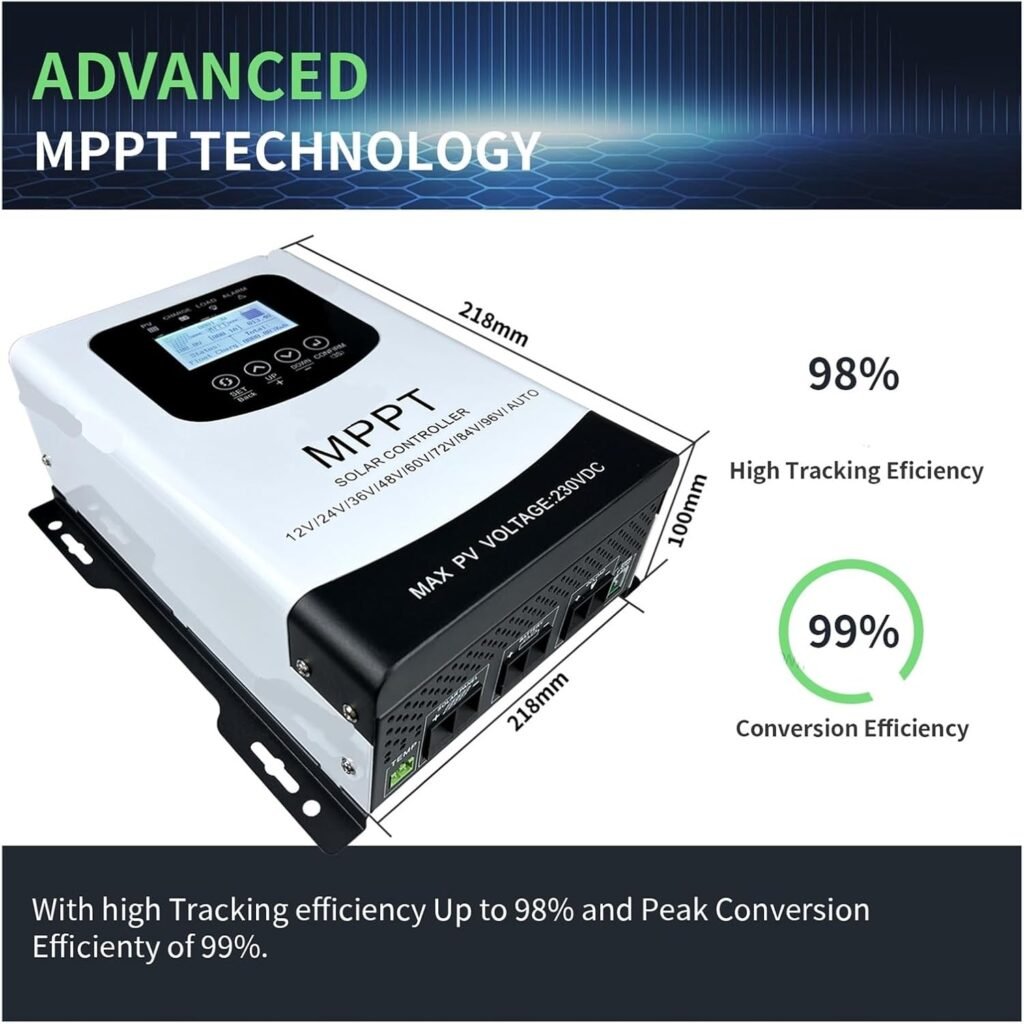

MPPT Technology and Efficiency
We see maximum power point tracking as the heart of this controller. The MPPT algorithm adjusts the PV operating point to extract the highest possible power even under changing irradiance and temperature, which generally raises energy harvest by 10–30% compared with PWM controllers. We will look at how quickly the algorithm tracks, how stable it is under partial shading, and whether it supports high voltage strings up to 230VDC.
Charge and Discharge Control
We appreciate that this device includes both charge control and programmable discharge management. That means we can set charge curves, absorption and float voltages, and discharge cutoffs, plus potentially set how loads get managed. The discharge control is useful in off-grid systems that need automatic load shedding or scheduled discharge to protect battery health.
Battery Compatibility and Protections
We will focus on LiFePO4 management because those cells require precise charge termination and balancing, and on lead-acid profiles which are still common. The controller promises protections such as overcharge, overdischarge, overcurrent, and thermal protections, which collectively “Effectively protect the battery Improve the power generation efficiency of solar panels.” We will assess how comprehensive and configurable those protections are.
230VDC PV Input and System Flexibility
A 230VDC PV input allows long PV strings and lower cable losses, which is valuable for larger systems or rooftop installations with limited roof space. We will evaluate whether this high-voltage input is well implemented — including input surge protection, MPPT performance at high voltages, and safety features for PV array isolation.
Physical Build and Interface
We will examine the hardware quality and how user-friendly the interface is for typical installers and system owners. Build quality and interface design impact ease of setup and long-term reliability.
The chassis, terminal quality, and cooling approach (heat sink size, presence of fan) determine durability. For the interface, we want clear LCD/LED readouts and accessible buttons or a straightforward communication protocol (RS485, Modbus) for remote monitoring.
Performance in Real-World Use
We will review how the controller performs during daily operation, including start-up, response to shading, temperature behavior, and energy throughput. Real-world performance matters more than lab specs because solar panels and batteries operate under fluctuating conditions.
We will consider metrics like typical MPPT efficiency (often 97–99% for good units), whether the controller recovers well from transients, and how well it manages the battery under heavy loads or limited solar input.
Installation and Setup
We will describe typical installation steps and things to watch for to make setup smooth and safe. A clear installation guide reduces mistakes that could harm the battery or controller.
We will also note whether the controller supports auto-detection of battery voltage or requires manual configuration, and whether firmware updates or parameter adjustments are straightforward.
Wiring and Safety Considerations
We will cover cable sizing, fuse placement, and sequence of connecting PV, battery, and load to avoid damage. Proper wiring safeguards both us and the equipment and ensures the controller’s protections function correctly.
We will note the importance of DC isolation means, surge arrestors on the PV side if needed, and careful attention to polarity during initial wiring.
Configuration and Display
We will evaluate how intuitive the display menus are and whether common settings (battery type, charging voltages, current limits, time-of-day settings) are easy to access. A clear display reduces installation time and the chance of configuration errors.
We will also check if the controller logs data or provides real-time statistics like PV voltage/current, battery voltage/current, state of charge estimate, historical energy, and error logs.
Battery Management Details
We will explain how the controller handles charge algorithms and what controls it gives us to tune for different battery chemistries. Good battery management prolongs battery life and improves usable energy.
We will emphasize that correct parameter settings for LiFePO4 or lead-acid are essential — incorrect float or absorption voltages shorten battery life or reduce usable capacity.
LiFePO4 Management
We will note that LiFePO4 cells need precise charge termination and typically require a charge cutoff around 3.6–3.65V per cell (so multiply by series count). The controller should allow us to set bulk/absorption voltages, enable a balancing routine if needed, and include low-voltage reconnect thresholds. LiFePO4 also benefits from temperature compensation and low-voltage cutoffs that are set to prevent overdischarge.
We will check whether the controller recognizes LiFePO4 as a dedicated profile and whether we can disable float charging if the battery manufacturer recommends it.
Lead-Acid Management
We will describe typical lead-acid profiles (flooded, AGM, gel) and whether the controller offers adjustable absorption, float, equalization functions, and temperature compensation. Lead-acid batteries need periodic equalization or controlled charging to prevent sulfation, and temperature compensation prevents under/overcharging in varying climates.
We will assess whether equalization is manual or automatic and whether it can be scheduled safely.
Monitoring and Connectivity
We will discuss monitoring options and whether the controller offers local or remote monitoring through RS485, Modbus, or wireless options. Visibility into system performance helps with troubleshooting and long-term optimization.
We will look for available apps or desktop software compatibility and whether data logging is onboard or requires external devices. Remote alerts for faults and performance issues are particularly valuable for systems in remote locations.
Heat Management and Durability
We will examine how the controller handles thermal loads and what protections are present to prevent thermal runaway or performance throttling. Good cooling ensures long life and consistent MPPT performance even on hot roofs or in warm environments.
We will also consider ingress protection (if any), recommended mounting locations, and how the controller behaves in extreme temperatures.
Troubleshooting Common Issues
We will outline common installation or operation problems and pragmatic steps to resolve them. Having a checklist speeds recovery and reduces downtime.
Common issues include incorrect battery voltage selection, wiring polarity mistakes, PV input exceeding 230VDC under cold conditions, erroneous sensor readings, and overheating. We will provide recommended checks and actions for each.
Pros and Cons
We will balance the strengths and weaknesses so we can make an objective decision.
We will list advantages such as high-voltage input capability, MPPT efficiency, multi-chemistry support, and protections; and potential drawbacks like model complexity, the need for careful configuration, or possible limited documentation depending on seller.
Recommended System Configurations
We will propose example system configurations for typical use cases (small off-grid cabin, medium backup system, large commercial rooftop) and map how the 50A/60A/80A options fit into those.
We will include recommended battery sizes, PV array sizing, and typical runtime expectations so we can decide which amperage model is appropriate.
Sizing Guide: How to Choose 50A vs 60A vs 80A
We will walk through selecting the correct current rating based on PV array expected current and battery charge acceptance rate. Choosing the right amperage prevents under- or overspecifying the controller and ensures efficient operation.
A simple formula: Required controller current = PV short-circuit current (Isc) × 1.25, or use expected charging current based on battery capacity and desired charge rate (C-rate). We will show examples.
Installation Checklist
We will provide a practical checklist that installers and DIYers can follow to ensure a safe and reliable commissioning process. A checklist minimizes overlooked steps and prevents early failures.
We will include items like verifying PV Voc at coldest expected temperature, battery voltage selection, fuse/circuit breaker placement, grounding, and initial parameter verification.
Maintenance Tips
We will recommend periodic checks for connections, firmware updates, cleaning of airways, and battery health checks to maintain long-term performance. Preventive maintenance keeps the system running efficiently and reduces the likelihood of failures.
We will also suggest how often to review logged data, inspect for corrosion or loose terminals, and perform equalization or balancing actions when needed.
Frequently Asked Questions
We will answer common questions that come up when evaluating or using this controller, such as compatibility, safety, typical lifetime, and how the device behaves under partial shading or grid-tied hybrid scenarios.
We will be concise and practical, offering solutions and reference points that help with decision-making.
Final Verdict
We will summarize our assessment and give a clear recommendation on when this controller is appropriate and what buyers should check before purchasing. Our verdict will weigh MPPT efficiency, battery protection claims, flexibility, and practical considerations like documentation and support.
Now we will expand several of the above sections in detail so we cover practical, technical, and user-oriented aspects that help make an informed choice.
Product Overview — In Depth
We will restate that the full product name is MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(40A), and its core promise is to “Effectively protect the battery Improve the power generation efficiency of solar panels.” That combination of protection and efficiency is exactly what we want from a solar controller — it should extend battery life while increasing useful energy from panels. We will assess whether the unit delivers on these claims, paying particular attention to configurability and safeguards.
We will note that the flexible battery voltage support (from 12V to 96V) means this is intended for a wide range of systems, from small 12V cabins to sizable 96V commercial installations. The high PV input rating (230VDC) is a differentiator for long strings and reduced wiring losses.
Key Specifications — Expanded Notes
We will comment that the listed amperages (50A, 60A, 80A) dictate how much charging current the controller can provide. If our PV array produces more than the controller’s rated charge current, the controller will become the bottleneck, wasting available solar generation unless we size the PV accordingly. We will recommend choosing a controller with at least the expected maximum charging current.
We will also emphasize that the 230VDC PV max input refers to open-circuit voltage (Voc) limits, and that Voc can rise in cold conditions. We will advise verifying Voc at the coldest expected temperature to avoid exceeding controller limits.
Main Features — Practical Implications
We will break features down into what they mean practically:
- MPPT efficiency: Higher energy yield per day, especially during mornings, evenings, and on cloudy days.
- Charge/discharge control: Useful for managing loads and prioritizing battery health.
- Multi-chemistry support: Allows mixed deployment or upgrades from lead-acid to LiFePO4.
- Protections: Prevents costly battery or controller damage from wiring mistakes or abnormal events.
We will note that features matter less if the firmware is limited or the interface is cryptic, so we will evaluate usability as well.
MPPT Technology and Efficiency — Deeper
We will explore how MPPT algorithms behave: they periodically adjust operating voltage/current to find the maximum power point. A high-quality MPPT controller can maintain near-optimal performance in partial shading or rapidly changing cloud cover. We will look for manufacturer-stated MPPT efficiency (if provided) and practical reports of 97–99% conversion efficiency. We will also check whether the controller handles multiple panels or split strings effectively, or if it requires a single MPPT input string.
Charge and Discharge Control — Deeper
We will discuss the charge staging options: bulk, absorption, and float typically. For LiFePO4, absorption and float may be shorter or eliminated depending on battery specs. Discharge control features might include timed load outputs, low-voltage disconnect (LVD) thresholds, and programmable reconnects. We will assess whether those settings are user-configurable and how fine-grained they are.
Battery Compatibility and Protections — Deeper
We will review protection thresholds and ranges. For example, adjustable overvoltage and undervoltage thresholds matter for non-standard battery packs. We will also value protections like reverse current prevention at night, PV overvoltage protection, and short-circuit handling. These protections help the unit “Effectively protect the battery Improve the power generation efficiency of solar panels.”
230VDC PV Input and System Flexibility — Deeper
We will explore the practical benefits of higher PV input voltage: smaller wiring gauge, longer runs, and the ability to string more modules in series which reduces current and I^2R losses. We will caution to ensure PV Voc under cold conditions remains below 230VDC and recommend that installers use proper surge protection on large arrays.

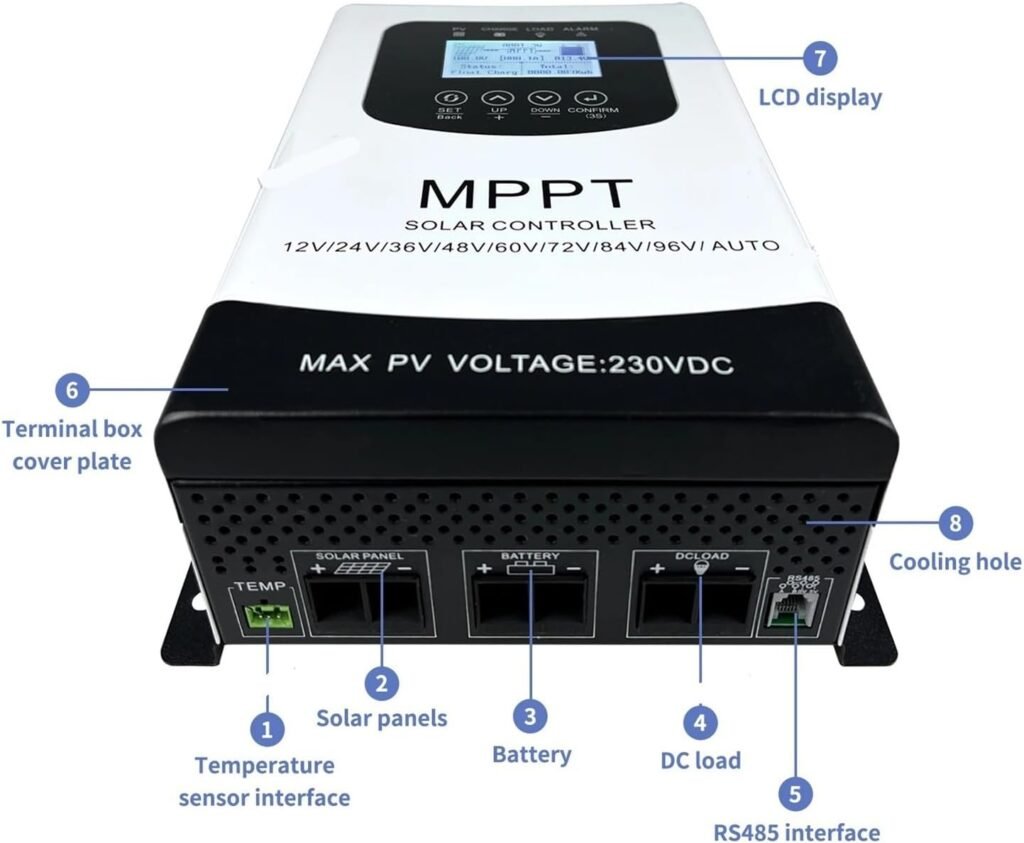

Physical Build and Interface — Detailed
We will examine terminal sizes, whether the wire access is convenient for large gauge cabling, and whether mounting holes are robust. For the interface, we will look for clearly labeled connectors, a readable display even in bright sun, and a simple button layout. If communication ports exist (RS485, USB), we will note their placement and whether the controller supports standard protocols like Modbus for integration with monitoring systems.
Performance in Real-World Use — Detailed
We will discuss scenarios: sunny days, partly cloudy conditions, winter low-angle sun, and high ambient temperature. We will emphasize MPPT responsiveness, efficiency at different power levels, and how the controller scales with partial panel arrays. We will also report on how the charge algorithm handles batteries that are deeply discharged and whether the controller supports recovery charging modes.
We will state typical expectations: a well-implemented MPPT controller should recapture 10–30% more energy over a PWM controller, and manage battery charging safely across daily cycles.
Installation and Setup — Detailed
We will step through installation order: mount controller securely, connect battery first (with appropriate fuse/circuit breaker), then load (if applicable), and finally PV array. This sequence avoids accidental energizing of the controller without battery support. We will underscore the importance of battery fusing close to the battery terminal and PV input fuses or breakers where appropriate.
We will also note that the controller may require specifying battery type and nominal voltage at setup; missing that step can lead to incorrect charging and battery damage.
Wiring and Safety Considerations — Detailed
We will provide guidance on cable sizing: use voltage drop tables or calculators; for high current (50–80A) keep cable lengths short or upsized to control voltage drop and heat. We will recommend a DC disconnect or breaker between panels and controller, and between controller and battery, sized according to the controller’s max current plus safety margin. Grounding the PV array and controller chassis (if required) is essential for safety.
We will warn about PV Voc rising in cold temperatures and recommend verifying Voc under Design Minimum Temperature to ensure it stays under 230V.

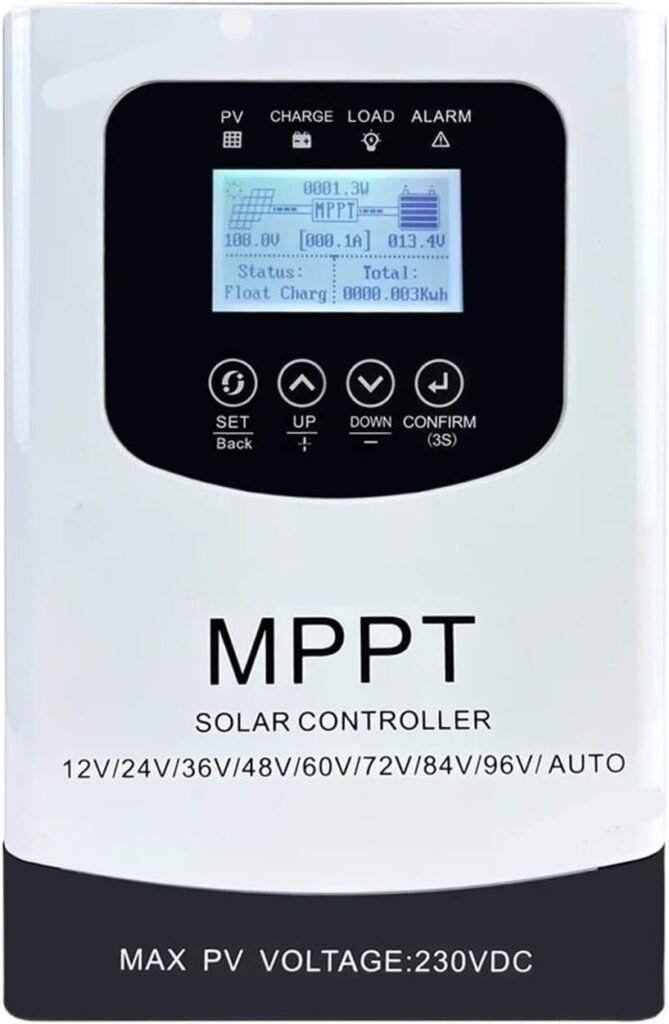

Configuration and Display — Detailed
We will explain common menu items to set: battery type, charge voltages, discharge limits, maximum charge current, time-of-day load control, and display units. We will recommend documenting chosen parameters and keeping the manual or a digital backup for future reference.
If the controller supports USB or RS485, we will advise connecting to monitoring software for logging and parameter changes that are easier on a larger screen.
Battery Management Details — Detailed
We will expand on the specific charge profiles and how to adapt them for different chemistries and pack configurations. For LiFePO4, we will recommend verifying manufacturer voltages and ensuring the controller’s settings match exactly to prevent overvoltage or undercharge. For lead-acid, we will suggest including temperature compensation if available and scheduling equalization conservatively, since improper equalization can damage battery plates.
LiFePO4 Management — Detailed
We will explain how LiFePO4 benefits from short absorption phases and avoiding float overcharging; some manufacturers recommend a simple CV cutoff with no float. If the controller allows disabling float or setting a minimal float voltage, that is ideal. We will also note that BMS-equipped LiFePO4 packs may expect the BMS to handle cell balancing and low-voltage protection, so the controller should be set to cooperate with the BMS (e.g., setting charge limits and current appropriately).
Lead-Acid Management — Detailed
We will advise that flooded lead-acid batteries may need periodic equalization at a higher voltage to mix electrolyte and correct cell imbalance, and that gel or AGM batteries have stricter thresholds. We will recommend that the controller allow separate settings for each battery type and that installers confirm whether automatic equalization is safe for their battery model.
Monitoring and Connectivity — Detailed
We will investigate what monitoring options the controller provides. Local LCDs are helpful, but remote monitoring via RS485/Modbus enables integration into home automation or solar monitoring platforms. We will recommend choosing a controller with documented communication protocols if remote monitoring or datalogging is important to us.
We will also mention the value of alarm notifications via remote systems for fault conditions like high temperature or low battery.
Heat Management and Durability — Detailed
We will look at how the controller deals with high ambient temperatures: does it derate current at high temps, engage fans, or shut down to avoid damage? Long-term reliability depends on keeping components within rated temperature ranges, so we will assess whether the physical design (heatsink surface area, ventilation) is adequate for our climate.
We will also suggest mounting indoors or in shaded ventilated enclosures if used in hot environments.
Troubleshooting Common Issues — Detailed
We will provide a short troubleshooting table in prose form for clarity:
- Symptom: Controller not powering on — Check battery connection and polarity; ensure battery voltage is within supported range.
- Symptom: PV not charging despite sunlight — Verify PV open-circuit voltage and controller PV input wiring; ensure PV Voc below 230V and fuse/breaker closed.
- Symptom: Controller overheating or throttling — Check airflow, clean dust, verify ambient temp, and consider mounting in cooler location.
- Symptom: Battery not holding charge — Verify battery health with load test; confirm correct charge profile parameters.
- Symptom: Unexpected load disconnection — Confirm low-voltage disconnect threshold and whether scheduled load control is configured.
We will encourage documenting symptoms and steps taken to assist with warranty support if needed.
Pros and Cons — Detailed
We will present an honest summary:
Pros
- High-voltage PV input up to 230VDC allows longer strings and reduced cable size.
- MPPT tracking increases energy harvest vs PWM controllers.
- Wide battery voltage support (12–96V) fits many system sizes.
- Battery protection and programmable charge/discharge profiles protect battery health.
- Suitable for LiFePO4 and lead-acid chemistries.
Cons
- Configuration complexity for non-technical users — careful setup required.
- Documentation and model-specific details can vary by supplier; check manual.
- Larger models (60A/80A) require attention to cable sizing and cooling.
- If remote monitoring requires extra modules, that adds cost.
We will emphasize that many cons are manageable with proper planning and installation.
Recommended System Configurations — Detailed
We will recommend configurations that balance PV, battery, and controller sizing:
- Small off-grid cabin (12V or 24V): 12V battery bank 200–400Ah with a 50A controller at 12V supports ~600W–900W panels depending on charge requirements. Choose the 50A model for simplicity.
- Medium home backup (48V): 48V battery bank 200–400Ah with a 60A controller provides robust charging from a 2–5kW panel array; pair with appropriate inverter for continuous loads.
- Larger commercial or longer-run systems (72–96V): Use the 80A controller to support high-voltage battery banks and larger PV strings; ensure PV Voc and current are within limits.
We will remind that battery C-rate matters: for LiFePO4, charging at 0.2–0.5C is common, so choose amperage to match battery acceptance and desired charge speed.
Sizing Guide: How to Choose 50A vs 60A vs 80A — Detailed
We will show simple calculations:
- Determine PV array expected max current: PV array short-circuit current (Isc) × number of parallel strings = array Isc. Multiply by 1.25 safety factor for controller selection.
- Example: If a 48V system has PV array Isc of 45A (after series/parallel arrangement), choose a controller rated ≥ 45A × 1.25 = 56.25A, so pick 60A model.
- Alternatively size from battery: For a 48V 200Ah LiFePO4, if we want 0.2C charging: 200Ah × 0.2 = 40A, so a 50A controller would suffice.
We will recommend choosing slightly higher amperage than calculated to allow future expansion and to avoid running controllers at continuous max rating.
Installation Checklist — Detailed
We will provide a practical checklist:
- Verify controller model matches battery nominal voltage and amperage needs.
- Inspect installation location for ventilation and temperature range.
- Mount controller on a solid vertical surface away from direct sunlight and moisture.
- Connect battery first, with battery-side fuse or breaker close to battery terminal.
- Connect load output (if present) per manual.
- Connect PV last, ensuring PV disconnect is open during wiring.
- Program battery type, voltages, and current limits before enabling PV.
- Test basic operations and log initial readings.
We will recommend taking photos of wiring and saving parameter screenshots for support.
Maintenance Tips — Detailed
We will suggest:
- Quarterly inspection of terminal tightness and corrosion.
- Annual cleaning of heatsink and fan intake.
- Monitoring battery voltages and state of charge monthly.
- Firmware updates when provided by manufacturer.
- Keeping a log of system performance to spot gradual degradation.
Consistent maintenance extends life and reduces unexpected failures.
Frequently Asked Questions — Detailed
We will answer typical queries:
Q: Can we connect multiple PV strings? A: Yes if within the controller’s PV input current/voltage limits; parallel strings may require string combiner and correct fusing.
Q: Is it safe to use with a battery that has an internal BMS? A: Yes, but profile settings should match BMS limits. The BMS may still cut charge/discharge; set controller to cooperate with the BMS.
Q: What happens if PV Voc exceeds 230V? A: Exceeding Voc rating risks damage. Verify Voc at coldest temperature and reconfigure strings or use lower-Voc panels.
Q: Will the controller support remote monitoring? A: Many models include RS485 or Modbus; verify your specific variant and required additional modules/software.
Q: How long is typical warranty and support? A: Warranty varies by supplier; confirm warranty duration and local support before purchase.
Final Verdict — Detailed
We will conclude that the MPPT 50A 60A 80A Solar Charge Discharge Controller 230VDC PV Regulator for 12 24 48 60 72 96V Lifepo4 Lithium Lead Acid Battery(40A) is a versatile and capable controller for mixed-to-large solar systems that need high-voltage PV input and flexible battery voltage support. Its MPPT capability should noticeably increase solar harvest and the extensive protection features promise to “Effectively protect the battery Improve the power generation efficiency of solar panels” when configured correctly.
We will recommend this controller for users who have some technical familiarity or who will use a qualified installer, because correct setup and wiring are critical to realize the benefits safely. For simpler, very small 12V systems, a lower-spec MPPT with simpler interface might be easier, but for medium to large off-grid or hybrid systems this controller is a strong contender.
If we plan to purchase, we will double-check the exact model’s manual, confirm the available communications options, and ensure the PV Voc at our site stays below 230V under cold conditions. With careful installation and correct battery profile settings, this controller will increase energy yield and protect battery assets over the long term.
