POWERWIN BT5120 48V 100Ah Deep Cycle Battery review

Have we ever wished our off-grid setup just worked reliably without constant battery worries?

Table of Contents

What Is the POWERWIN BT5120 51.2V 100Ah LiFePO4 Battery?

When we look at the POWERWIN BT5120 51.2V 100Ah LiFePO4 Deep Cycle Battery, we are looking at a high-capacity, maintenance-free lithium battery designed for serious energy storage needs. It is targeted at solar systems, RVs, off-grid cabins, marine use, trolling motors, and backup power.

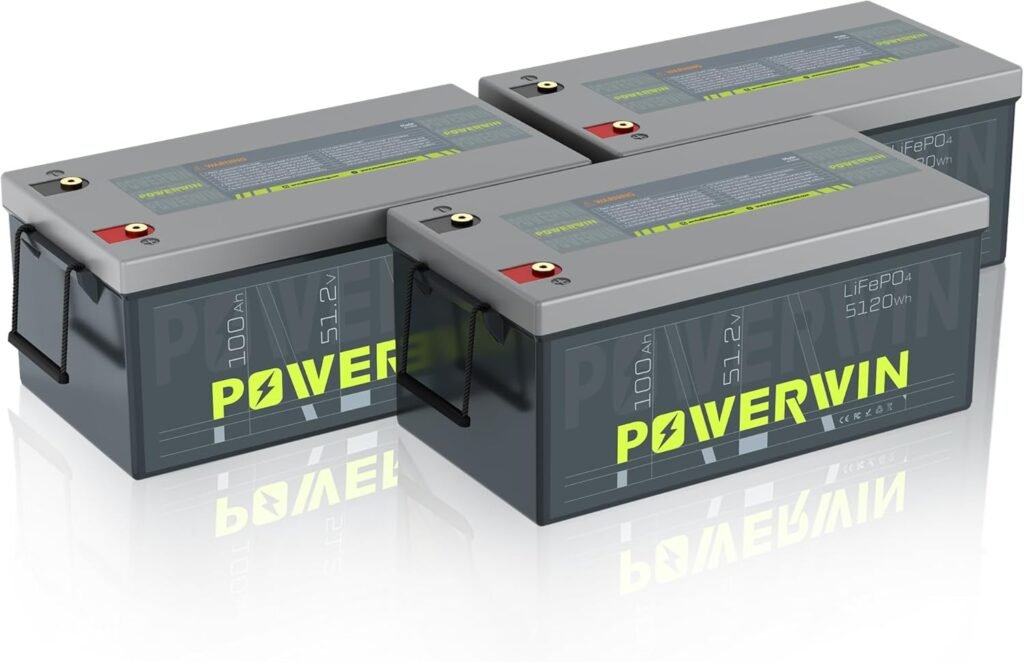

This specific package includes 3 batteries, each with a built-in 100A BMS (Battery Management System), using LiFePO4 chemistry for long life, safety, and reliability. Together, these units are positioned as a long-term replacement for traditional lead-acid batteries.

Key Features at a Glance

To help us understand the strengths of this battery, it helps to summarize the most important specifications first. Then we can unpack what each one means for real-world use in solar, RV, marine, or backup applications.

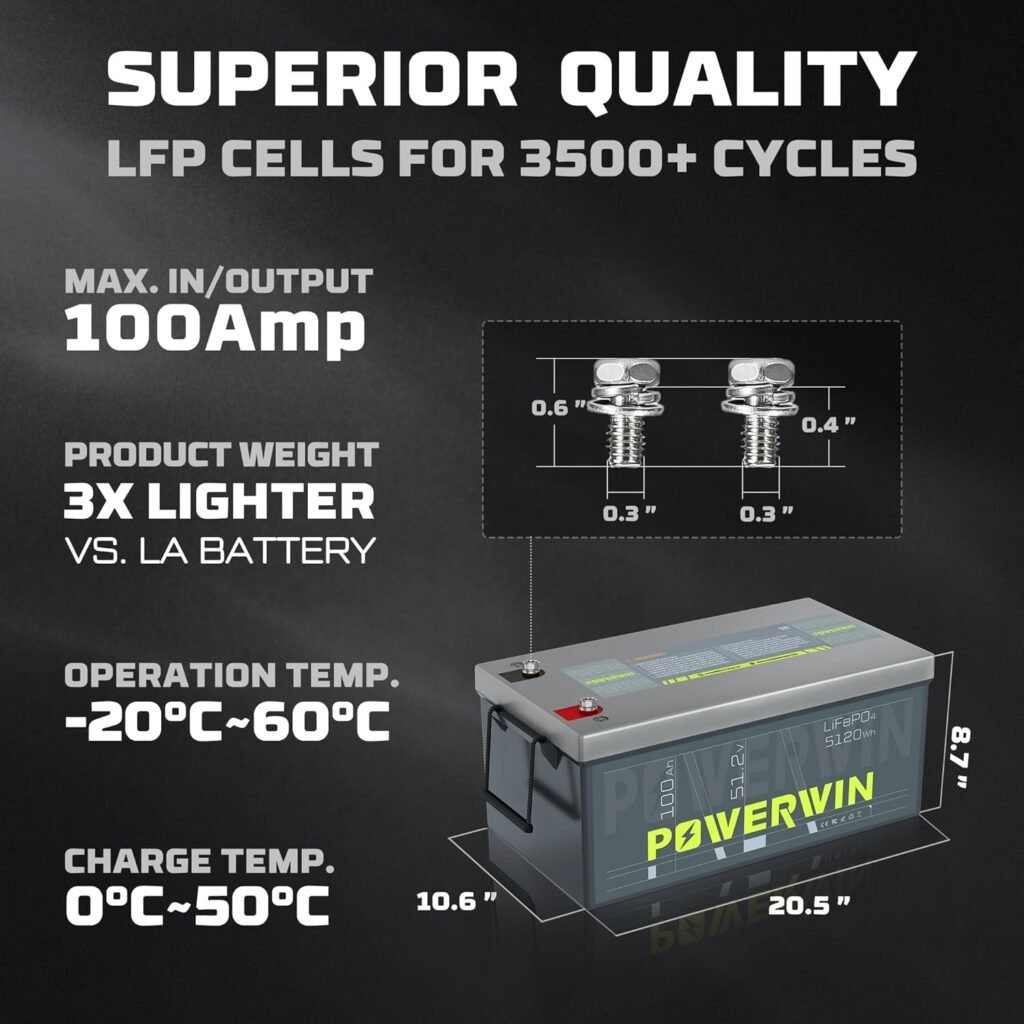

Core Specifications

POWERWIN clearly aims at users who need strong performance and long service life. The BT5120 focuses on high cycle life, consistent voltage, and flexibility for expansion.

Feature	Specification / Description
Chemistry	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	51.2V (marketed as 48V nominal system compatibility)
Capacity	100Ah per battery
Energy (per battery)	~5.12 kWh
Battery Management System (BMS)	100A built-in, protects from overcharge, overdischarge, overcurrent, overheating, short circuit
Cycle Life	4,000–15,000 cycles (depending on Depth of Discharge)
Recommended Voltage (Charging)	56.8V–58.4V
Recommended Current (Charging)	0–50A
Use Case Examples	Solar, RV, off-grid homes, marine, trolling motor, UPS, pumps, EV-related systems
Management	Maintenance-free, sealed, impact-resistant
Warranty	2 years
Package	3 pcs battery pack (3 x 51.2V 100Ah units)

This is not a small hobby battery. It is meant for those of us who want serious, dependable storage capacity for home or mobile power systems.

Build Quality and Design

When we invest in a battery system, we want to know what is going on inside the case, not just the marketing claims. With this unit, POWERWIN emphasizes the use of Grade-A LiFePO4 cells and a robust BMS to manage and protect those cells.

Grade-A LiFePO4 Cells

Grade-A cells matter because they have tighter quality control and more consistent performance. When manufacturers use Grade-A LiFePO4 cells, we typically see:

More stable capacity over time
Fewer early failures
Better matching between cells, which leads to smoother operation

With LiFePO4 chemistry, we trade a bit of energy density compared to some lithium-ion chemistries in exchange for higher safety and very long cycle life. For stationary and mobile power systems, that trade-off is usually worth it.

In the POWERWIN BT5120, each cell is designed to handle high cycle counts and remain stable under repeated charge/discharge cycles. That is critical when we build a system that cycles daily with solar or RV use.

Robust 100A BMS Protection

The BMS is the brain and guardian of the battery. Without a good BMS, even high-quality cells can suffer early damage or dangerous failures. In this battery, the 100A BMS offers:

Overcharge protection
Overdischarge protection
Overcurrent protection
Overheating protection
Short circuit protection

That means the BMS is constantly monitoring the battery’s condition and cutting off or limiting power when conditions move outside safe limits. For us, this translates into less stress about misconfigured chargers or heavy loads.

100A continuous capability is comfortable for many 48V inverters and systems. It lets us draw up to around 5 kW (in an ideal scenario) from a single battery, depending on inverter limits and wiring design. In practice, we would usually run below that for longevity and safety.

Capacity, Voltage, and Real-World Power

Understanding what “51.2V 100Ah” really gives us helps us size our system correctly. With 3 units, this package becomes a substantial energy bank for serious off-grid use.

How Much Energy Do We Actually Get?

Each battery is rated at 51.2V and 100Ah. We can easily convert that into Wh (watt-hours) or kWh (kilowatt-hours):

51.2V × 100Ah = 5120Wh = 5.12 kWh per battery

Since this product listing includes 3 batteries:

3 × 5.12 kWh = 15.36 kWh total theoretical storage

In real use, we rarely use 100% of the capacity every cycle if we want the longest life. But even if we work within a comfortable depth of discharge (for example, 60–80%), this is still a large amount of energy.

For reference, 15.36 kWh could run:

A small, energy-efficient off-grid cabin for most of a day or more
An RV with air conditioning for a good portion of a day when combined with solar input
Essential home loads (lights, fridge, modem, a few outlets) through a power outage

We can adjust expectations based on how energy-hungry our appliances are, but this gives a rough sense of scale.

48V Nominal System Compatibility

Although the name says “51.2V,” in battery system terms, this is a 48V class battery. That is the standard for many off-grid inverters and higher-power RV systems.

Using a 48V battery bank has several perks:

Lower current for the same power compared to 12V or 24V systems
Thinner cables or less copper cost
Better performance for higher-wattage inverters

If we already have a 48V inverter, the BT5120 is designed to pair with it nicely. The recommended charging voltage range (56.8V–58.4V) also fits typical 48V LiFePO4 profiles.

Long Cycle Life and What It Means for Us

The claimed life cycle ratings are one of the strongest selling points of LiFePO4 batteries. POWERWIN quotes 4,000 to 15,000 cycles, depending on Depth of Discharge (DOD).

Understanding the Cycle Life Ratings

POWERWIN breaks down the cycle life like this:

Around 4,000 cycles at 100% DOD
Around 6,000 cycles at 80% DOD
Around 15,000 cycles at 60% DOD

If we translate that into time:

4,000 cycles at 1 cycle per day ≈ 11 years
6,000 cycles at 1 cycle per day ≈ 16 years
15,000 cycles at 1 cycle per day ≈ 41 years (theoretically)

In practice, other aging factors and conditions (temperature, charge profile, usage patterns) come into play, so we should not expect the far edge of theoretical life. Still, even conservative real-world results with LiFePO4 cells are often in the 10+ year range for regular use.

Comparing to Lead-Acid and AGM Batteries

When we compare with lead-acid or AGM batteries:

Typical deep-cycle lead-acid: 300–600 cycles at 50% DOD
Good AGM: 500–1,000 cycles at 50% DOD

The POWERWIN BT5120 being roughly “10x longer-lasting than SLA” is a fair claim in many scenarios.

What that means for us:

Far fewer replacements over the lifetime of our system
Lower long-term cost, even if upfront cost is higher
Less maintenance and worry about sulfation or chronic undercharging

If we plan to stay invested in solar or off-grid living for years, these advantages can make a huge difference.

Charging Specs and Best Practices

Proper charging is key to both performance and long life. POWERWIN gives clear guidance for the BT5120 on recommended voltage and current.

Recommended Voltage and Current

The manufacturer’s guidelines:

Recommended charging voltage: 56.8V–58.4V
Recommended charging current: 0–50A

This tells us a few things:

The battery is compatible with most 48V lithium charge controllers and inverters that can be set within this range.
While the BMS can handle 100A, they recommend staying within 50A for charging to be gentle on the cells and reduce heat.

We should always cross-check these values with our inverter/charger or solar charge controller, and then program them accordingly. Many modern units allow custom LiFePO4 profiles, which makes it straightforward.

Initial Charge on Arrival

POWERWIN notes that each battery is shipped at about 50% state of charge, mainly for safety and storage. Upon receipt, they recommend we:

Fully charge the battery within the advised voltage and current range
Check any existing system to ensure settings match LiFePO4 requirements

Doing this initial top-up helps balance the cells and prepares the battery for stable long-term use.

If we are installing the full 3-battery set, it is a good habit to charge them to the same level and, if possible, let them rest before connecting in parallel to promote better balancing across the units.

Parallel Expansion and Scalability

One of the strong points of the BT5120 is the ability to expand the system by connecting multiple batteries in parallel. POWERWIN supports up to 8 units in parallel.

Parallel Connections for Larger Energy Storage

When we connect identical batteries in parallel:

Voltage stays the same (still a 48V system)
Capacity (Ah) and total energy (kWh) increase linearly

With up to 8 BT5120 batteries in parallel, we gain:

8 × 100Ah = 800Ah at 51.2V
8 × 5.12 kWh ≈ 40.96 kWh total

That is a very large storage bank, suitable for full-time off-grid homes, heavy RV users, or commercial and agricultural systems.

The product package we are looking at includes 3 units. That already provides:

3 × 100Ah = 300Ah at 51.2V
Around 15.36 kWh

We can start with these 3 and add more later as budget or needs grow, as long as we follow best practices (using similar-aged batteries, ideally from the same batch, and ensuring voltage is matched before parallel connection).

Best Practices for Parallel Setup

To keep parallel installations safe and effective, we should:

Use equal-length cables for each battery to a common bus bar, so each one shares the load equally.
Ensure all batteries are at very similar voltages before connecting (within a small range, usually under 0.1–0.2V difference).
Use properly sized fuses or breakers for each battery line for safety.

The BT5120’s built-in BMS in each unit means protection is per-battery, which adds redundancy. But we still want external fusing and good wiring design.

Ideal Use Cases: Where This Battery Shines

POWERWIN clearly targets a wide range of applications, and LiFePO4 is well-suited to many of them. Let us look at how this battery fits different situations.

Home Energy Storage and Off-Grid Systems

For home energy storage, whether we have a grid-tied hybrid system or a fully off-grid cabin, the BT5120 offers:

Excellent cycle life for daily solar charging and discharging
48V compatibility with many inverters (Victron, Growatt, MPP Solar, and others, depending on exact models and configs)
Maintenance-free operation: no topping off water, no equalization charge, no off-gassing

Three of these units can easily support:

Lighting
Refrigeration
Electronics (computers, routers, TVs)
Small tools or appliances

with an appropriately sized inverter. With enough solar, wind, or generator support, we can maintain a comfortable off-grid lifestyle.

RV and Van Life

For RVs and camper vans, battery reliability is everything. The BT5120 fits especially well in 48V-based systems, which are becoming more common for high-power builds that include:

Inverter/chargers for running AC loads
Roof-mounted solar arrays
DC-DC charging from the vehicle alternator (with the right converter)

Compared to 12V lead-acid banks, we gain:

More usable capacity at the same rated Ah level
Better voltage stability under load (less sag)
Lower overall weight for the energy stored

The maintenance-free and impact-resistant design is a big plus when we are bouncing around on rough roads and do not want to constantly check electrolyte levels or worry about venting.

Marine Use and Trolling Motors

For marine applications and trolling motors, the key considerations are:

Resistance to vibration and impacts
Stable performance over many charge/discharge cycles
The ability to withstand occasional deep discharges

The POWERWIN BT5120 is sealed and impact-resistant, which is beneficial on boats that see waves, jolts, and movement. The long cycle life is a big advantage over traditional marine lead-acid batteries that wear out quicker under deep-cycle conditions.

We just need to ensure our trolling motor and marine electronics are compatible with a 48V system—or we use appropriate DC-DC converters to step down to 12V or 24V where needed.

Backup Power and UPS Systems

Using the BT5120 with UPS setups or custom backup power systems is another strong use case. Since the battery has a stable voltage curve and long life, it is well-suited to:

Backup power for critical home loads
Server room or network equipment backup in small businesses
Medical or emergency equipment (with proper system design)

The “enough rated voltage for UPS module” mention indicates it is within the standard operating range of many 48V UPS units. We just need to confirm the exact battery compatibility and charging profile of our UPS before integrating.

Agricultural, Industrial, and EV-Related Uses

The product mentions use in:

Electric agricultural equipment
Water pumps
Electric vehicles (in some custom or auxiliary roles)

In these areas, heavy usage and frequent cycling are normal. LiFePO4 chemistry’s durability and safety become highly valuable, especially when we are running equipment in remote or demanding environments.

We might use these batteries as:

Storage banks for solar-powered irrigation pumps
Stations for charging cordless tools or smaller EVs
Part of a microgrid supporting barns, workshops, or remote sensors

Maintenance-Free and User Convenience

Maintenance-free design does not just mean “we do not add water.” It also includes no need for equalization charging, no off-gassing in normal use, and no corrosion of terminals from acid fumes.

What Maintenance-Free Really Means for Us

With the POWERWIN BT5120:

We do not need to check water levels or electrolyte.
We do not need to schedule periodic equalization charges.
We can store the battery without worrying about rapid self-discharge, as LiFePO4 holds charge well.

We should still occasionally:

Check mounting and cable connections
Ensure ventilation around the battery area to dissipate any heat
Keep terminals clean and tight

But overall, the day-to-day care demands are far lower than with traditional lead-acid banks.

Impact-Resistant and Sealed Construction

Being sealed and impact-resistant helps in:

RVs, vans, and boats where vibration and jolts are common
Off-grid installations where the battery might be in a shed or outbuilding
Situations where small bumps or mishandling could occur during installation

We should still mount the batteries securely and avoid excessive shocks, but the design gives us a margin of safety and durability.

Safety Considerations

Safety is always central when we work with high-capacity battery systems. LiFePO4 chemistry is known for its excellent safety profile, and the BT5120 adds to that with the integrated BMS.

LiFePO4 Safety Profile

Compared with other lithium-ion chemistries (like NMC or LCO), LiFePO4 has:

Higher thermal stability
Lower risk of thermal runaway
Stable operation over a wide temperature range

This does not mean we can ignore basic safety rules, but it does mean the risk of catastrophic failure is significantly lower.

BMS Protection Layers

With built-in BMS protections:

Overcharge protection: stops the battery from being pushed beyond safe voltage levels.
Overdischarge protection: prevents damage from draining the battery too low.
Overcurrent protection: cuts power if loads demand dangerously high current.
Overheating protection: reduces or shuts down operation if temperatures move out of safe range.
Short circuit protection: reacts quickly if there is a direct short across the terminals.

This set of protections works silently in the background. We might never “see” them working, but if something goes wrong in the system, they can be the difference between a minor issue and permanent battery damage.

Pros and Cons from a User Perspective

No product is perfect for everyone. Summarizing strengths and trade-offs helps us decide if this battery fits our specific needs and constraints.

Advantages We Get

Very long cycle life: 4,000–15,000 cycles, translating to potentially more than a decade of use.
High capacity and energy: 5.12 kWh per unit, 15.36 kWh for the 3-battery package.
Safety-focused design: LiFePO4 chemistry plus robust BMS protection.
Maintenance-free: sealed, no water topping, no equalization.
48V system compatibility: fits many off-grid and backup inverters and UPS systems.
Expandable: up to 8 batteries in parallel for large banks.
Impact-resistant build: better suited to RVs, boats, and rough environments compared with delicate battery banks.

For many off-grid, RV, and marine users, these advantages are exactly what we are looking for in a long-term energy solution.

Possible Limitations

Upfront cost: LiFePO4 systems cost more at the outset than lead-acid, even though lifetime cost is lower.
48V focus: if our system is strictly 12V and we do not plan to change, this battery is not a direct plug-in; we would need DC-DC converters or a redesigned system.
Weight and size: while lighter than an equivalent lead-acid bank, each unit is still a substantial piece of hardware and needs solid mounting and planning.
Warranty duration: a 2-year warranty is decent, but some high-end brands offer longer warranties on premium LiFePO4 products.

If we already run or plan to build a 48V system and we are in it for the long term, the strengths often outweigh these limitations.

Installation and System Integration Considerations

How well the POWERWIN BT5120 serves us depends heavily on how we integrate it into our overall system. Even the best battery can be held back by poor planning or mismatched equipment.

Sizing Our Inverter and Loads

With 3 batteries in parallel, we have:

51.2V, 300Ah
About 15.36 kWh of storage

A 48V inverter of 3kW to 5kW can pair well here, depending on our load patterns. We want to:

Avoid running constant loads near the maximum current limit of the BMS (100A per battery).
Consider surge requirements for appliances like pumps, compressors, and AC units.
Size wiring and overcurrent protection correctly for our maximum continuous and surge loads.

If we plan heavy loads like large air conditioners, induction cooktops, or power tools, we should size the inverter and cables appropriately and keep an eye on total current draw.

Solar and Charging Input Planning

To keep a 15.36 kWh bank healthy, we need enough charging. With solar, we can roughly plan:

A 3–5 kW solar array can recharge a 15 kWh bank reasonably well during a good sun day, depending on climate.
If we want fast recovery after deep discharges, we might aim toward the upper side of that range.

Using a quality MPPT charge controller that supports LiFePO4 charging profiles is strongly recommended. We configure:

Absorption/charge voltage around 56.8–58.4V, as specified
No long float at high voltage; many LiFePO4 systems benefit from a shorter absorption and a lower float

We also might integrate a generator or grid charger for cloudy periods or heavy usage days.

Real-World Value and Use Scenarios

The ultimate question we ask ourselves is: does this battery make our energy life easier, safer, and more cost-effective over time?

For Long-Term Off-Grid Living

If we are serious about full-time or long-term off-grid living, a battery like the POWERWIN BT5120 can be a cornerstone of our energy system. With 3 units, we already have a solid foundation:

Enough storage to handle nights and cloudy stretches when paired with sufficient solar or generator backup.
The ability to expand further as our energy needs grow or our budget allows.

The 10x cycle life advantage over SLA means we are not constantly budgeting for new batteries every few years, and we can focus on other improvements to our setup instead.

For Weekend RVers and Seasonal Users

Even if we only use our RV or cabin part of the year, having a long-life, low-maintenance battery bank has huge convenience value:

The batteries hold charge well in storage.
When we arrive for a trip, we are not wrestling with dead lead-acid batteries or sulfated banks.
Our system “just works,” making our vacation time more relaxing.

We spend less time fussing with maintenance and more time enjoying our travel or off-grid retreat.

For Critical Backup and Peace of Mind

In areas with unstable grid power, storms, or frequent outages, the BT5120 can underpin a reliable backup system:

Keeping fridges, freezers, and essential electronics powered during outages.
Paired with solar, allowing us to ride through extended outages more comfortably.

We gain not only technical advantages, but also peace of mind knowing that our battery bank is designed for long life and safe operation.

After-Sales Service and Support

POWERWIN backs this 48V 100Ah LiFePO4 battery with a two-year warranty. While we might wish for a longer period given the long theoretical cycle life, the presence of a formal warranty and stated support is still important.

They encourage us to contact them if we have issues or questions, which suggests they expect to guide customers through setup and troubleshooting if needed. For high-capacity lithium batteries, we value clear documentation and responsive support, especially for those of us new to LiFePO4 systems.

We should keep all purchase records, note down serial numbers, and read any included manuals or data sheets, so we are ready if we ever need assistance.

Our Overall Impression

When we step back and look at the full picture, the POWERWIN BT5120 51.2V 100Ah LiFePO4 Deep Cycle Battery (3-piece package) presents itself as a strong contender in the 48V energy storage arena.

We appreciate:

The long cycle life claims backed by LiFePO4 chemistry.
The built-in 100A BMS with robust protections.
The 5.12 kWh per battery capacity, making 15.36 kWh total in this 3-unit set.
The ability to connect up to 8 in parallel for large systems.
The maintenance-free, impact-resistant, sealed design.

For off-grid homes, serious RV and van builds, marine systems, and backup applications, this battery pack can be a powerful and dependable backbone.

If we are ready to move beyond the limitations of lead-acid and invest in a long-term, scalable energy storage solution, the POWERWIN BT5120 offers a compelling, high-performance option that can serve us reliably for many years with proper system design and care.

Disclosure: As an Amazon Associate, I earn from qualifying purchases.
