Could this UL1741 48V Inverter 10KW Solar Off Grid Inverters 110/220Vac Low Frequency DC 48V AC Input 240V AC Output 120V/240V Split Phase Pure Sine Wave Power with 2x80A MPPT Charger Controller 10000W meet our off-grid or backup power needs?

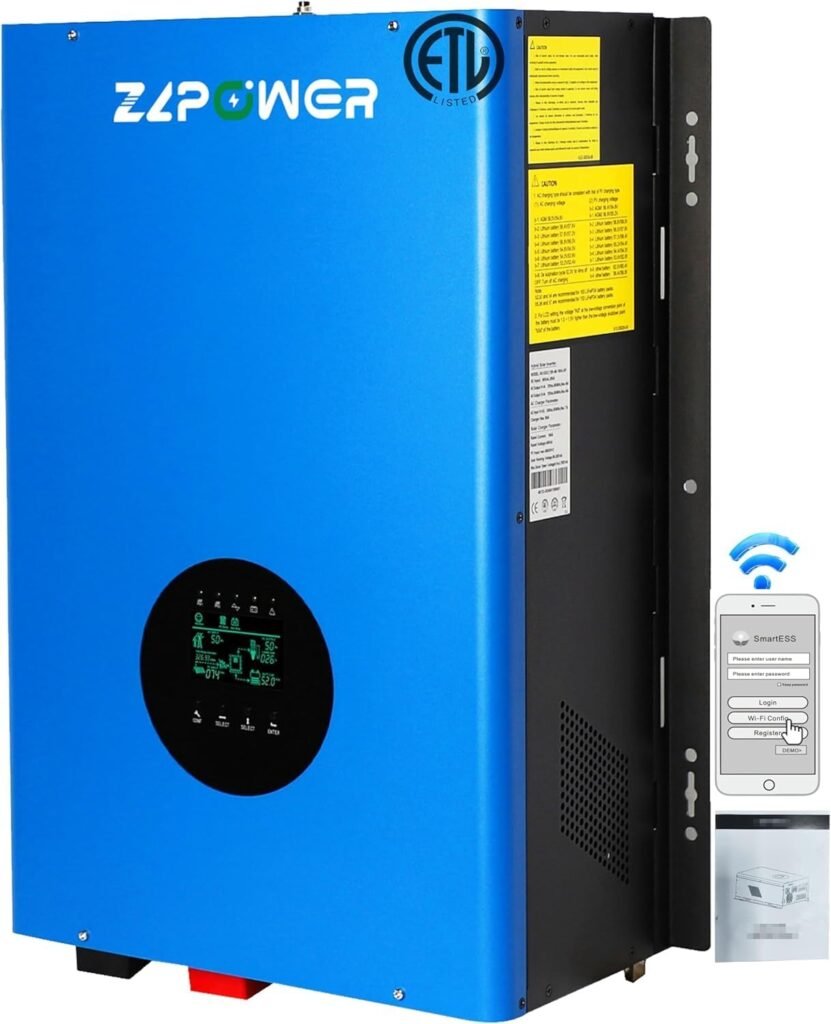

Product overview
We think this unit packs a lot of features into a single package, combining a 10 kW low-frequency inverter with two MPPT solar charge controllers and advanced control functions. We like that it offers split-phase output and built-in battery charging, which can simplify system design when we need a compact, robust solution for heavy loads.
What the product is designed for
The inverter is aimed primarily at off-grid homes, remote cabins, or sites that need reliable backup power while integrating solar generation. We can also see installers using it for hybrid setups where generator, grid, battery, and PV must play together smoothly.
Key headline specs in plain terms
This model accepts 48 V DC input and provides 10,000 W continuous AC output with 24,000 W peak surge capacity. We appreciate that it supports both 120 V and 240 V split-phase outputs, selectable 50/60 Hz, and includes two 80 A MPPT charge controllers for direct PV input.
Key features we care about
We want equipment that is dependable, flexible, and relatively straightforward to configure. This inverter’s combination of low-frequency transformer design, multiple operating modes, and battery compatibility makes it useful for a wide range of scenarios.
Split-phase 120/240 VAC output
The inverter can provide split-phase 120/240 V AC output, allowing us to power both 120 V and 240 V loads simultaneously. This is especially handy in regions that use split-phase service or when we have high-demand appliances like heat pumps or multiple motors.
Built-in dual MPPT solar controllers
There are two built-in MPPT controllers, each rated at 80 A, which means the inverter can accept substantial PV input without needing external charge controllers. We find this integration convenient because it reduces components, wiring complexity, and overall system footprint.
Low-frequency transformer design
Being a low-frequency inverter with a heavy-duty copper transformer, this unit handles inductive loads better and provides strong surge capacity for motors and compressors. We like that the transformer design increases robustness and can tolerate longer-duration power spikes.
Intelligent control and communication
The unit supports lithium battery communication protocols, multiple working modes (AC priority, DC priority, intelligent), and automatic generator start (AGS) when battery SOC or utility conditions require it. We value intelligent control because it lets us tailor charging and power flow to our usage profile.
Technical specifications (detailed)
Below we provide a focused breakdown of the most relevant technical specifications to help us evaluate system compatibility and sizing. The table will make it easier to compare key numbers at a glance.
| Specification | Detail |
|---|---|
| Model | UL1741 48V Inverter 10KW Solar Off Grid Inverters 110/220Vac Low Frequency DC 48V AC Input 240V AC Output 120V/240V Split Phase Pure Sine Wave Power with 2x80A MPPT Charger Controller 10000W |
| DC Input Voltage | 48 V |
| Continuous AC Output | 10,000 W |
| Peak/Surge Power | 24,000 W |
| AC Output Configuration | Split-phase 120/240 V (110/220Vac supported) |
| Output Waveform | Pure sine wave (low-frequency) |
| Frequency | Selectable 50/60 Hz via LCD |
| Built-in MPPT | 2 × 80 A MPPT controllers (each max ~4500 W PV) |
| Max PV Input per MPPT | Up to 4500 W per MPPT string (supports parallel for larger arrays) |
| Max Charging Current | Up to 240 A (combined) |
| Supported Battery Types | Lead-acid, GEL, Lithium (with communication) |
| Protections | Overload, short circuit, over/under voltage, over-temperature |
| Certifications | ETL certified to UL 1741 standards |
| Cooling | Smart fan with temperature-based speed control |
| Special Functions | AGS, remote control, battery communication, synchronization with AC source |
| Typical Use Cases | Off-grid homes, backup systems, hybrid solar+generator setups |
We included the most consequential specifications so we can quickly gauge whether this inverter aligns with our project requirements. The MPPT and charging specs are especially important for solar-centric systems.
Performance and efficiency considerations
Performance depends on real-world conditions, battery selection, and PV array sizing; we need to think through each element to maximize reliability. We should also consider how the low-frequency architecture compares against high-frequency inverters for our load profile.
Continuous and surge capacity
With 10 kW continuous and a 24 kW surge capability, this inverter is capable of starting and running large inductive loads like compressors and motors. We rely on these surge specs when sizing for appliances such as air conditioners, refrigerators, wells, or heavy machinery.
Efficiency and energy losses
Low-frequency inverters traditionally have somewhat lower peak efficiency than modern high-frequency units, but they compensate with better handling of surge currents and more robust output under heavy loads. We should account for inverter efficiency when estimating battery storage and PV generation needs because conversion losses affect usable energy.
Thermal performance and cooling
The inverter uses smart fan control to adjust cooling based on ambient temperature, which helps manage noise and wear while providing adequate cooling when loads are heavy. We recommend installing the unit in a ventilated, temperate location to avoid frequent thermal throttling or excessive fan noise.
Built-in MPPT controllers — what they bring to the table
Having two internal MPPT controllers simplifies system architecture and often reduces total system cost. We should understand PV string arrangement options and how maximum charging current translates into real-world charging times.
MPPT capacity and PV input arrangement
Each MPPT accepts up to 80 A and is rated around 4500 W for a string, and the controllers can be paralleled to accept up to double that input for a single large PV array. This flexibility allows us to configure either multiple separate PV arrays or parallel a large array to one or both MPPT inputs.
Charging current and battery recharge time
The inverter can deliver up to 240 A of charging current across the system, which shortens recharge times when sufficient PV or generator power is available. We advise checking battery manufacturer recommendations because high charge rates, while fast, must be compatible with battery chemistry and temperature conditions.
MPPT tracking efficiency and shading tolerance
Although the product description doesn’t list MPPT efficiency numbers, typical MPPT controllers in this class achieve good conversion and tracking. We should plan array layouts to minimize shading and mismatch to keep the MPPT controllers operating near their best efficiency.
Installation and setup guidance
We want a smooth installation that keeps our system safe and compliant with local electrical codes. Planning wiring, ventilation, battery placement, and generator/grid interconnection is essential before we begin.
Site selection and ventilation
Choose a location with stable temperature, minimal dust, and good airflow for the inverter. We recommend mounting the inverter on a solid surface and leaving adequate clearance for the smart fan to work effectively and for maintenance access.
Battery bank sizing and cables
With a 48 V DC input requirement, we must design a battery bank composed of appropriately configured batteries (for example, four 12 V modules in series or compatible lithium packs) and use appropriately sized cables for high-current paths. We believe that investing in low-resistance, properly rated cabling and quality lugs pays off in reduced losses and improved safety.
PV array wiring and MPPT connections
Plan PV strings to match MPPT voltage and current limits, and use properly rated combiner boxes and overcurrent protection. We prefer a string layout that balances array size across the two MPPT inputs when possible, and we ensure quick-disconnects and clear labeling for future maintenance.
Generator and grid interfacing
If we plan to use a generator or grid switch for charging or backup, configure AGS and synchronization settings carefully to avoid phase conflicts or improper transfer. We advise testing AGS thresholds at installation so the generator starts and stops under the conditions we expect, and verifying the inverter’s synchronization behavior with the AC source.
Operating modes explained
This inverter supports multiple working modes, which lets us prioritize power sources based on our needs. We should choose modes deliberately to match daily usage patterns, battery health, and the availability of grid or generator power.
AC priority mode
In AC priority mode, the inverter will favor AC input (grid or generator) over battery discharge, helping us preserve battery life when mains power is available. We might use this mode in hybrid systems where grid power is cheap or when we want to keep the battery at high SOC for backup.
DC priority mode
DC priority mode puts PV and battery energy first, using AC input only when local generation or stored energy is insufficient. This mode is ideal when we want to maximize self-consumption of solar and minimize dependence on the grid or generator.
Intelligent (auto) mode
The intelligent mode automates switching logic between AC and DC sources based on load and battery parameters, making operation more hands-off. We appreciate intelligent mode in applications where we prefer reliable automation rather than constant manual management.
Battery compatibility and charging profiles
Battery chemistry determines optimal charging parameters and longevity, so it’s important that the inverter supports a range of battery types and communication protocols.
Supported battery types
The inverter supports lead-acid, GEL, and lithium batteries and includes communication functionality for lithium packs. We should configure charging algorithm parameters via the LCD to match the battery manufacturer’s recommended charge/float voltages for best results.
Lithium communication and protections
Because the unit supports lithium battery communication, it can coordinate charge/discharge behavior with battery management systems (BMS) that speak supported protocols. We recommend enabling communication where available to prevent overcharge or over-discharge and to use advanced charge strategies tailored to our lithium batteries.
Setting charging currents and voltages
The LCD allows us to set charging current and other parameters, which helps us balance recharge speed against battery life. We encourage conservative settings for long battery lifetimes unless rapid recharge is essential and the battery vendor approves higher currents.
Safety, certification, and reliability
Certifications and built-in protections reduce our risk and help ensure the inverter meets regional standards. We value products that follow recognized safety standards and implement robust protective features.
ETL certification to UL 1741 standards
The inverter is ETL certified to UL 1741 standards, which indicates compliance with recognized safety criteria for inverters and power conversion equipment. We view this certification as a meaningful sign that the unit conforms to industry-standard safety and performance test procedures.
Built-in protections
The unit includes multi-protection features like overload, short circuit, over-temperature, and under/over voltage protection. These protections help safeguard our inverter, batteries, PV array, and connected loads, reducing the chance of catastrophic failures.
Reliability considerations
Low-frequency transformer design tends to be more tolerant of heavy loads and surge conditions, which can translate into longer service life for heavy-duty applications. We still recommend proper installation, thermal management, and preventative maintenance to maximize reliability over the years.
Pros and cons — practical summary
We find it useful to list advantages and limitations side-by-side to help make a purchasing decision. Below we summarize the main strengths and potential drawbacks.
Notable advantages
- Integrated dual 80 A MPPT controllers reduce component count and simplify design. We like how that can reduce installation time and cost.
- Strong surge capability and transformer-based low-frequency design for inductive loads. This makes it better suited to start motors and compressors reliably.
- Multiple operating modes, AGS, and lithium communication enhance flexibility. We find these features useful for hybrid and off-grid setups.
- ETL certification to UL 1741 standards provides confidence in safety compliance. We prefer products that carry recognized, third-party certifications.
Potential limitations
- Low-frequency inverters are typically bulkier and somewhat less efficient than high-frequency alternatives. We should account for lower peak conversion efficiency when estimating system yield.
- The product’s full installation and configuration can be complex for newcomers. We recommend professional assistance for system sizing and commissioning if we are not experienced.
- Specific MPPT efficiency numbers and some detailed electrical characteristics may not be published in marketing materials. We would like more granular spec sheets for deeper engineering design.
Real-world use cases and sizing examples
We want to imagine realistic scenarios so we can judge whether the inverter fits our intended application. Below we present a few use cases and recommend considerations for each.
Off-grid family home
For a moderate off-grid household that runs lights, refrigerator, well pump, and occasional air conditioning, this 10 kW inverter can provide ample continuous power and the surge headroom for start-up currents. We should size the PV array and battery bank to match daily consumption and seasonal variations to avoid excessive generator reliance.
Backup power for a business or farm
For a small business or farm with motors, compressors, and refrigeration needs, the high surge capability and transformer design make this inverter a sensible choice. We recommend configuring AGS with a generator and ensuring the battery bank has enough capacity to ride through outages without frequent generator starts.
Hybrid grid-connected system with time-of-use considerations
If we have access to the grid but want to maximize solar usage and reduce bills during peak cost periods, DC priority or intelligent mode can optimize self-consumption. We should implement appropriate metering and possibly battery storage large enough to shift significant loads off-peak.
Maintenance, monitoring, and troubleshooting
Good maintenance practices extend equipment life and improve performance. We also want a plan to monitor performance and diagnose common issues quickly.
Routine maintenance tasks
We recommend periodic inspection of cable connections, ventilation openings, and mounting hardware to ensure everything is tight and clean. We also suggest battery maintenance according to battery type, including cell balancing checks and electrolyte level checks for flooded lead-acid systems if applicable.

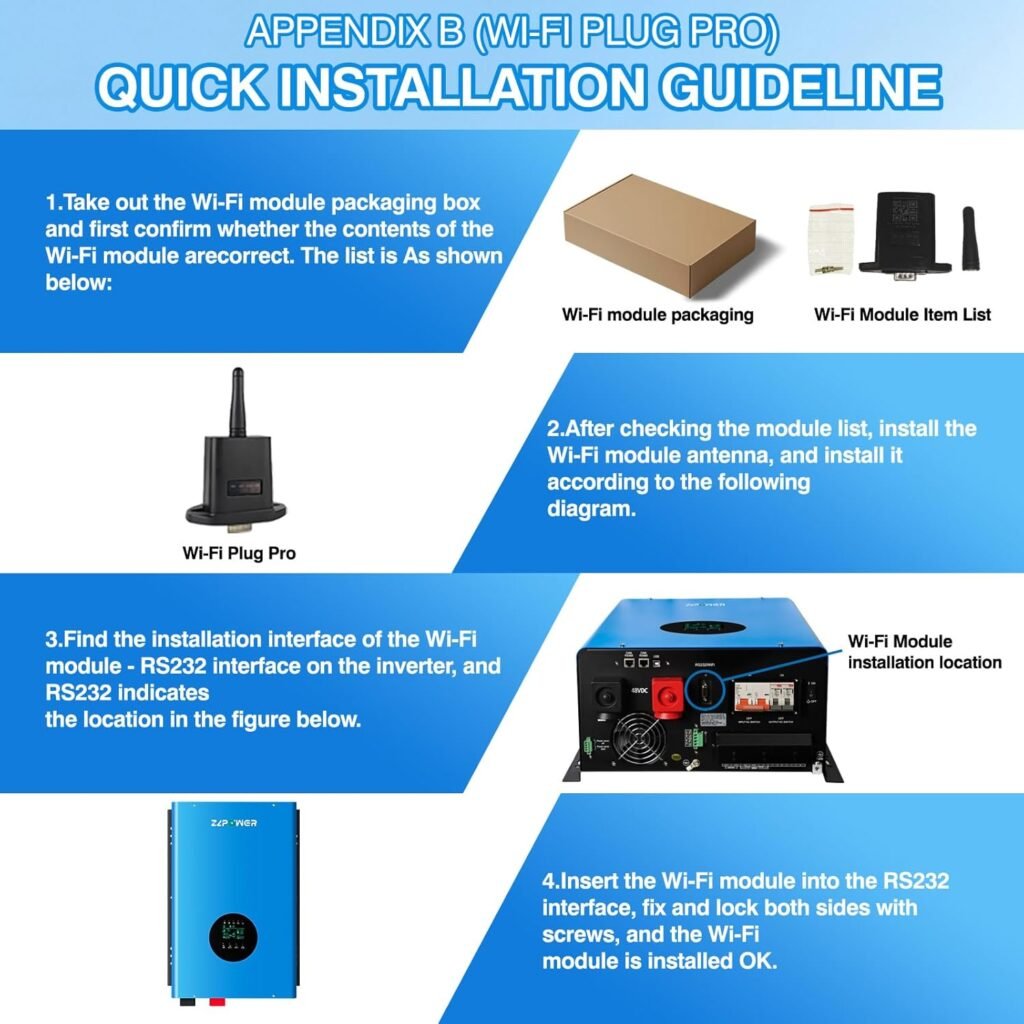

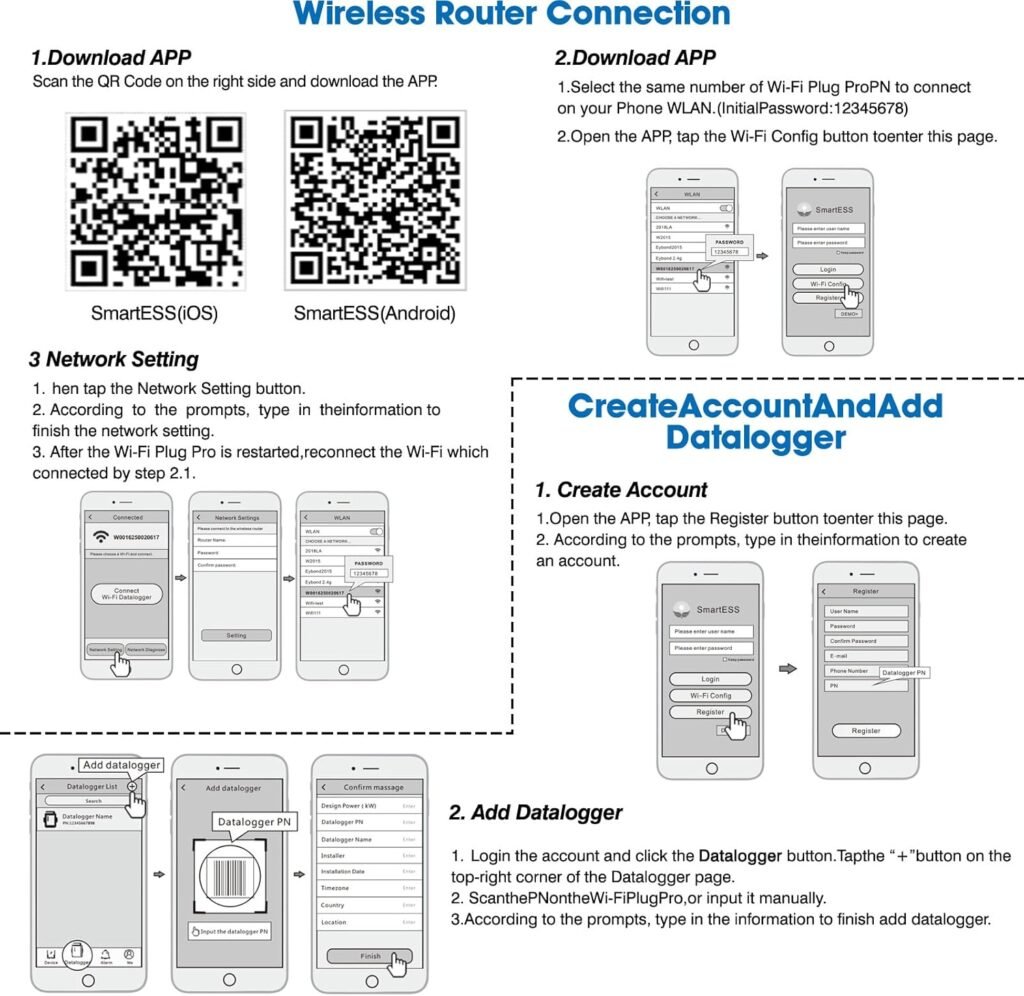

Monitoring and remote control
The inverter offers smart remote control and LCD configuration, which helps with on-site tuning and performance checks. Where possible, linking the inverter to a remote monitoring platform gives us historical data and alerting that can prevent small issues from becoming major problems.
Common troubleshooting scenarios
Common issues include misconfigured battery settings, PV array mismatch or shading, and generator synchronization problems. We propose a stepwise troubleshooting approach: verify DC input and battery health first, check PV open-circuit voltages and MPPT inputs, and then inspect AC synchronization and AGS settings.
Comparison with alternatives
When deciding, we compare this product with high-frequency inverters, split components, and other integrated hybrid inverters. Each approach has trade-offs in cost, efficiency, reliability, and installation complexity.
Integrated hybrid vs. separate components
Integrated inverters with built-in MPPT controllers reduce parts count and simplify wiring, but separate components might offer more flexibility to scale MPPT or to replace individual parts. We prefer integrated solutions when space and simplicity matter, and separate components when we need modular expansion.
Low-frequency vs. high-frequency inverters
Low-frequency inverters are generally tougher with better surge handling; high-frequency inverters can be lighter and more efficient. Given our needs, we would opt for this low-frequency unit when heavy inductive loads are frequent, and for high-frequency units when efficiency and weight are the primary concerns.
Price-to-feature ratio
This inverter’s combination of high continuous power, large surge capability, two MPPTs, AGS, and certifications makes it competitive on value for heavy-duty or hybrid installations. We should still compare total system costs including batteries, PV, wiring, and installation labor before deciding.
Frequently asked questions (FAQ)
We compile practical questions we often ask when evaluating such equipment, and we answer them from the perspective of installers and end users.
Can we run air conditioners and pumps with this inverter?
Yes, the 24 kW peak surge rating and low-frequency transformer design are suitable for starting and running inductive loads like air conditioners and pumps. We advise confirming specific appliance start-up currents and ensuring the inverter and battery bank are sized to handle repeated starts.
How should we size the battery bank for this inverter?
Battery bank size depends on desired autonomy and daily energy consumption; for a 10 kW inverter, a typical off-grid installation might use several kWh to tens of kWh of storage. We recommend calculating daily load, factoring inverter efficiency, and then choosing a battery bank sized to provide the required autonomy while respecting maximum charge/discharge rates.
Do we need an external MPPT if we have large PV arrays?
Not necessarily; the inverter’s two 80 A MPPT controllers accept substantial PV input and can be paralleled for larger arrays. However, if our array is extremely large or we require more MPPT channels for shading tolerance, external MPPTs might be appropriate.
What about warranty and support?
Warranty terms usually vary by seller and region, and we strongly recommend confirming warranty duration and support arrangements before purchase. We also encourage purchasing from reputable vendors or vendors with local service support to reduce downtime in case of issues.
Final recommendation
We find the UL1741 48V Inverter 10KW Solar Off Grid Inverters 110/220Vac Low Frequency DC 48V AC Input 240V AC Output 120V/240V Split Phase Pure Sine Wave Power with 2x80A MPPT Charger Controller 10000W to be a compelling choice when we need a rugged hybrid inverter that integrates charging and solar management. For off-grid homes, backup-heavy installations, and sites with significant inductive loads, this unit offers a balanced combination of surge handling, charging throughput, and operational flexibility.
When we would choose this unit
We would select this inverter when heavy surge capability, robust handling of inductive loads, and integrated MPPT capability are priorities. It makes particular sense when we want a consolidated solution that reduces external component needs and simplifies wiring.
When to consider alternatives
We might opt for other models if our priority is maximum conversion efficiency, lower weight, or modular expandability for very large PV systems requiring many MPPT channels. In those cases, we would compare high-frequency inverters or modular systems from other manufacturers.
We hope this review gives us a clear picture of how the inverter performs, what it offers, and when it makes sense to include it in our system.
